G0441 Inventory
The following is a description of the main compo-
nents shipped with your machine. Lay the compo-
nents out to inventory them.
Inventory: (Figure 3) Qty
A. Intake Cylinder ........................................... 1
B. Cyclone Funnel .......................................... 1
C. Intake Barrel ............................................... 1
D. Canister/Drum Collection Bags .........1 Each
E. Gray Flexible Hose 8" x 20" ....................... 1
F. Motor/Blower Housing Assembly ............... 1
G. Upper Collection Drum ............................... 1
H. Muffler ........................................................ 1
I. Gray Flexible Hose 8" x 5" ......................... 1
J. Lower Collection Drum ............................... 1
K. Clear Flexible Hose 9" x 13"....................... 1
L. Hose Clamps 9" ......................................... 2
M. Collection Drum Lid .................................... 1
N. Collection Drum Seal ................................. 1
O. Outlet Port .................................................. 1
P. Filter L-Braces ............................................ 2
Q. Foam Tape Roll 3 x 6mm .......................... 1
R. Hose Clamps 8" ......................................... 5
S. Hardware Box
—Phillips Head Screws #10-24 x
3
⁄8" ........ 12
—Hex Nuts #10-24 ................................... 12
—Drum Latches ......................................... 3
—Roll of Foam Tape 3 x 15mm ................. 1
T. Hardware Box
—Hex Bolts
5
⁄16"-18 x 1" ............................ 24
—Hex Bolts
5
⁄16"-18 x
3
⁄4" ........................... 24
—Flat Washers
5
⁄16" .................................. 68
—Fender Washers
5
⁄16" ............................... 4
—Hex Nuts
5
⁄16"-18 .................................... 24
U. Hardware Box
—Casters ................................................... 4
—Hex Nuts
3
⁄8"-16 ....................................... 4
—Lock Washers
3
⁄8" .................................... 4
—Flat Washers
3
⁄8" ..................................... 8
V. Wall Mount Brace ....................................... 1
W. Barrel Gaskets ............................................ 2
X. Brace Gaskets ............................................ 2
Y. Outlet Gasket ............................................. 1
Z. Canister Filter Assembly ............................ 1
AA. Hose Clamps 1
1
⁄4" ...................................... 2
AB. Vacuum Hose 1
1
⁄4" x 98" ............................ 1
AC. Collection Drum Vacuum Ring ................... 1
AD. Cyclone Vacuum Tube ............................... 1
F
C
B
A
D
E
L
J
I
G
H
N
Q
P
R
S
T
U
V

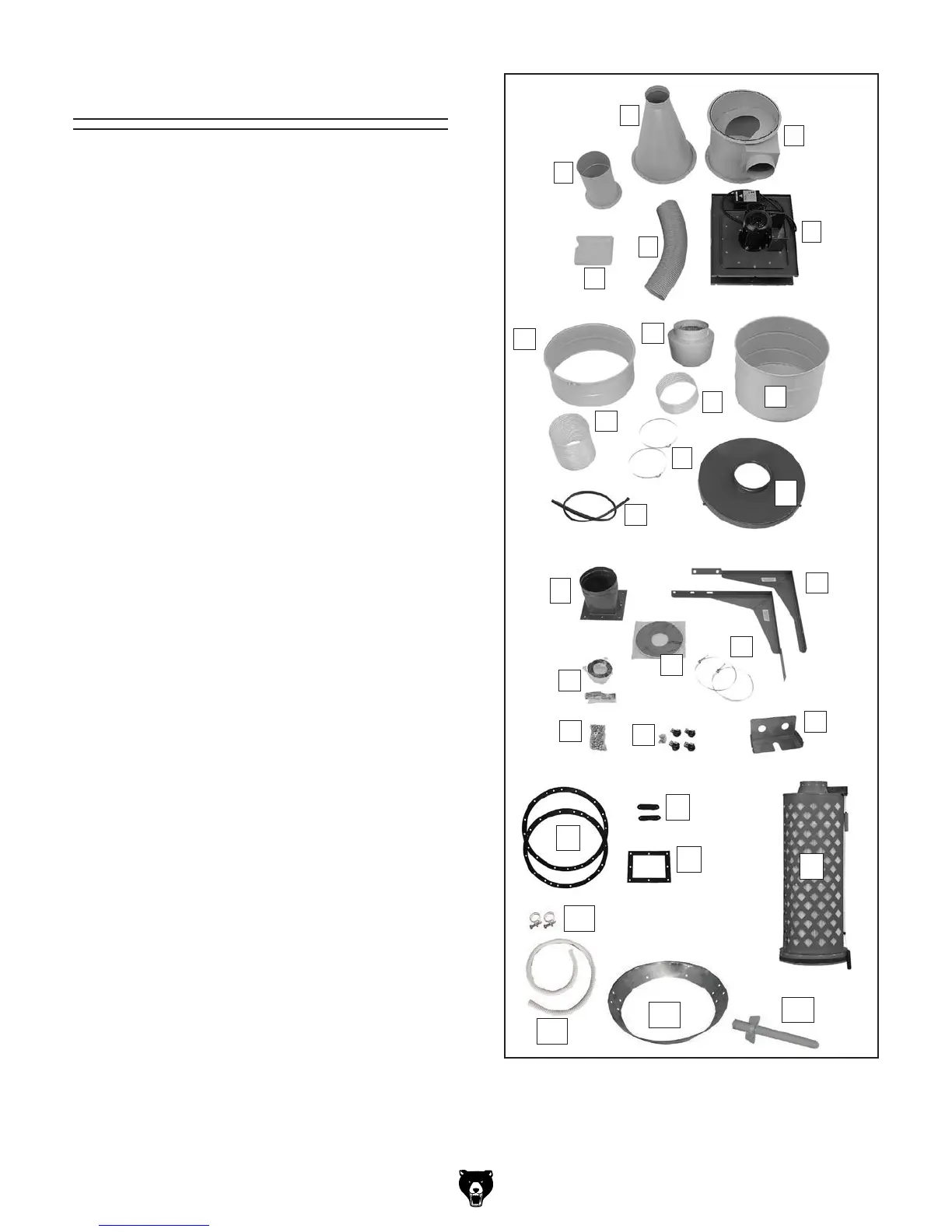

Figure 3. Model G0441 inventory.
K
M
O
W
X
Y
Z
AA
AB
AC
AD
