Model G0440/G0441 (Mfg. Since 03/12)
-21-
11. Attach the outlet port and filter L-braces to
the blower housing with the outlet gasket
between the outlet port and the housing, as
shown in Figures 17–18, using (8)
5
⁄16"-18 x
1" hex bolts, (16)
5
⁄16" flat washers, and (8)
5
⁄16"-18 hex nuts.
Note: On the G0441, one of the braces
attaches directly to the housing with the fol-
lowing extra hardware: (2)
5
⁄16"-18 x 1" hex
bolts, (4)
5
⁄16" flat washers, and (2)
5
⁄16"-18 hex
nuts.

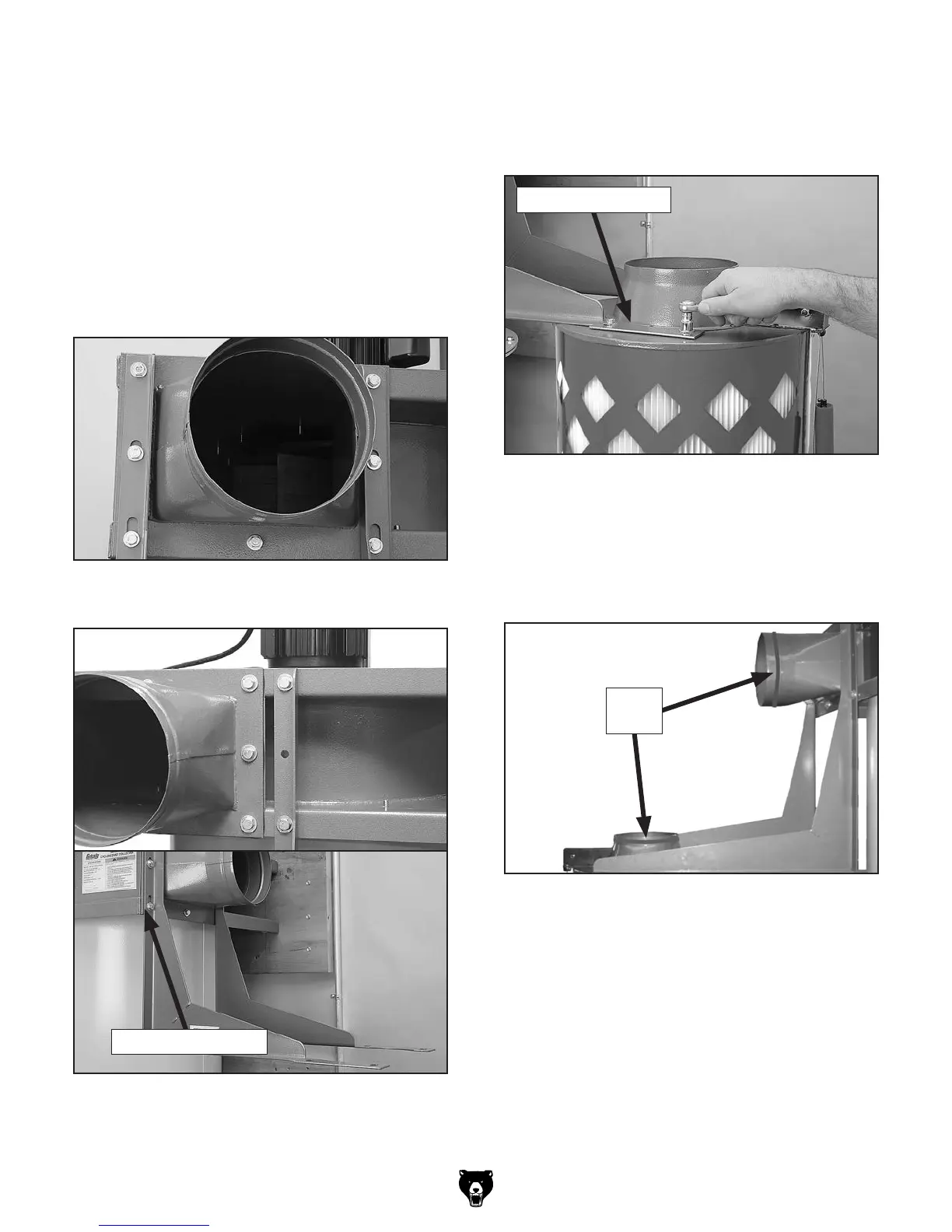

Figure 17. Model G0440 outlet port and filter
L-braces installed.
12. Mount the filter to the L-braces with the brace
gaskets between them, as shown in Figure
19, using (4)
5
⁄16"-18 x
3
⁄4" hex bolts and (4)
5
⁄16" fender washers.
Figure 19. Mounting filters to the braces.
Brace Gasket Here
Figure 18. Model G0441 outlet port and filter
L-braces installed.
Outlet Gasket Here
13. Model G0440:
a. Apply the 3 x 15mm foam tape to
the edges of the outlet port and the
canister adapter, as shown in Figure 20.
Figure 20. Foam tape applied to the outlet port
and canister adapter (Model G0440).
Foam
Tape
To Next Page
