Grizzly G0453Z Manual Insert


)%&
)%'
)%(
)%)
)%*
)%+
)%,
)%-
)%.
)&&
)&%
)&)
)%.
)&*
)'+
)&'
)&(
)&(
)&+
)&,
)'*
)'%
)&-
)&.
)'&
)''
)'(
)')
)',
)'-
)'.
)(%
)(&
)('
)((
)()
)(*
)(-
)(+
)(,
)(.
))%
))&
))'

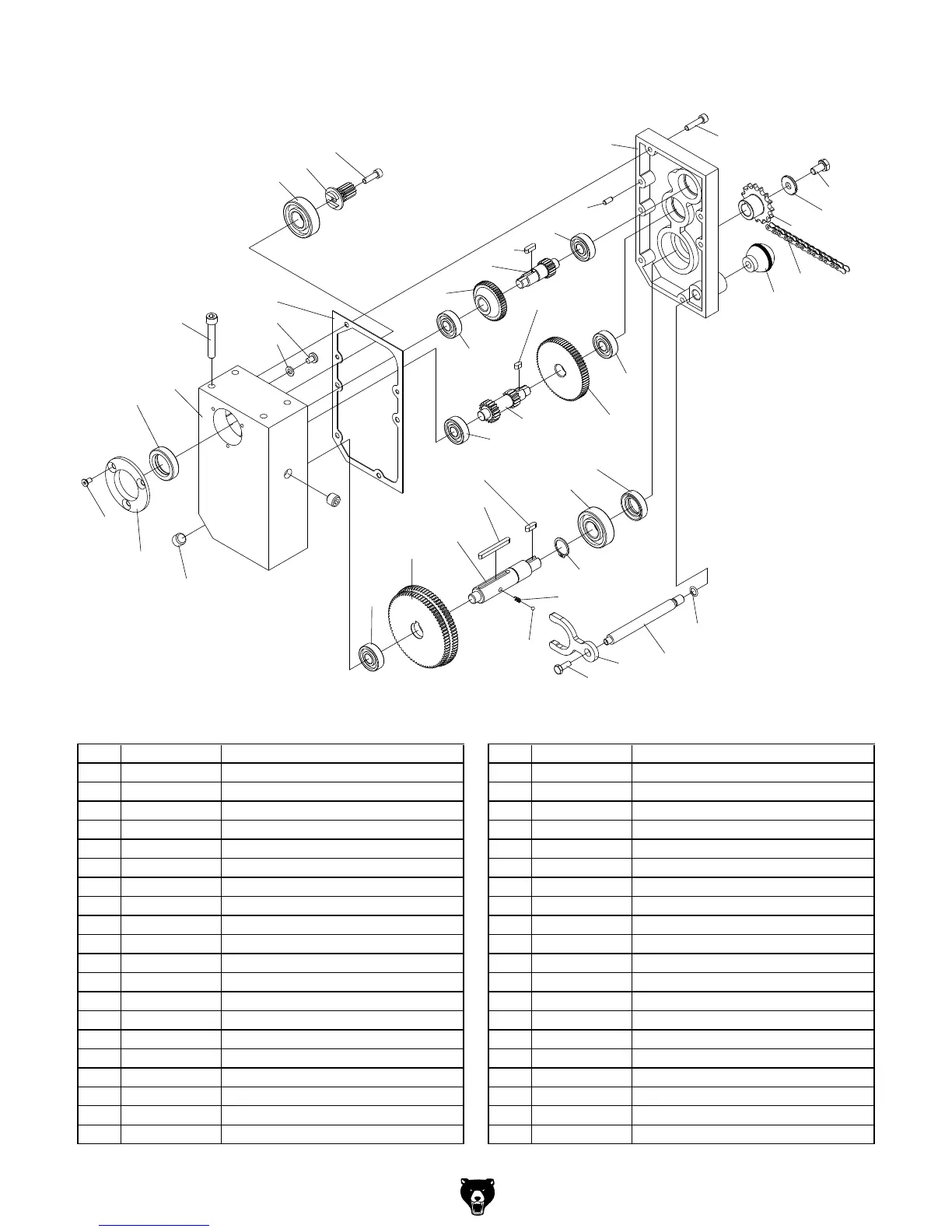

Gearbox Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0453Z401 GEAR BOX COVER 422 PW03M FLAT WASHER 6MM
402 PB10M HEX BOLT M6-1 X 25 423 P0453Z423 COMPRESSION SPRING
403 P0453Z403 COLUMN SPROCKET 424 P0453Z424 STEEL BALL 4MM
404 PW01M FLAT WASHER 8MM 425 P0453Z425 GEAR ( C)
405 PB03M HEX BOLT M8-1.25 X 16 426 PK36M KEY 5 X 5 X 50
406 P0453Z406 CHAIN 06B-1 X 51 427 P0453Z427 GASKET
407 P0453Z407 FEMALE KNOB M8-1.25 428 P0453Z428 GEAR BOX
408 P0453Z408 GEAR SHAFT (A) 429 PB166M HEX BOLT M8-1.25 X 50
409 P6201 BALL BEARING 6201ZZ 430 P0453Z430 OIL PLUG
410 P0453Z410 GEAR (A) 431 P0453Z431 FLANGE COVER
411 PK19M KEY 5 X 5 X 14 432 PSB33M CAP SCREW M5-.8 X 12
412 P0453Z412 SHAFT (B) 433 P0453Z433 OIL SEAL 25 X 40 X 10
413 P6201 BALL BEARING 6201ZZ 434 P0453Z434 PIN 5 X 10
414 P0453Z414 GEAR (B) 435 P0453Z435 SHIFT FORK
415 PK06M KEY 5 X 5 X 10 436 P0453Z436 HANDLE SHAFT
416 P0453Z416 OIL SEAL 25 X 32 X 7 437 PORP016 O-RING 15.8 X 2.4 P16
417 P0453Z417 SHAFT ( C) 438 PFB01M FLANGE BOLT M6-1 X 12
418 P6204 BALL BEARING 6204ZZ 439 PK08M KEY 5 X 5 X 16
419 PR09M EXT RETAINING RING 20MM 440 P6204 BALL BEARING 6204ZZ
420 P6201 BALL BEARING 6201ZZ 441 P0453Z441 GEAR (D)
421 PS03M PHLP HD SCR M6-1 X 8 442 PSS25M SET SCREW M6-1 X 20

Grizzly G0453Z Specifications

General

Brand	Grizzly
Model	G0453Z
Category	Planer
Language	English
