Grizzly G0453Z Manual Insert

 
(%&
(%'
(%)
(%(
(%*
(%+
(%,
(%-
(%.
(&)
(&%
(&&
(&'
(&(
(&,
('%
('-
(',
('*
('+
('(
(')
(''
('&
('.
(&.
(&+
(&*
(&-
((%
((&

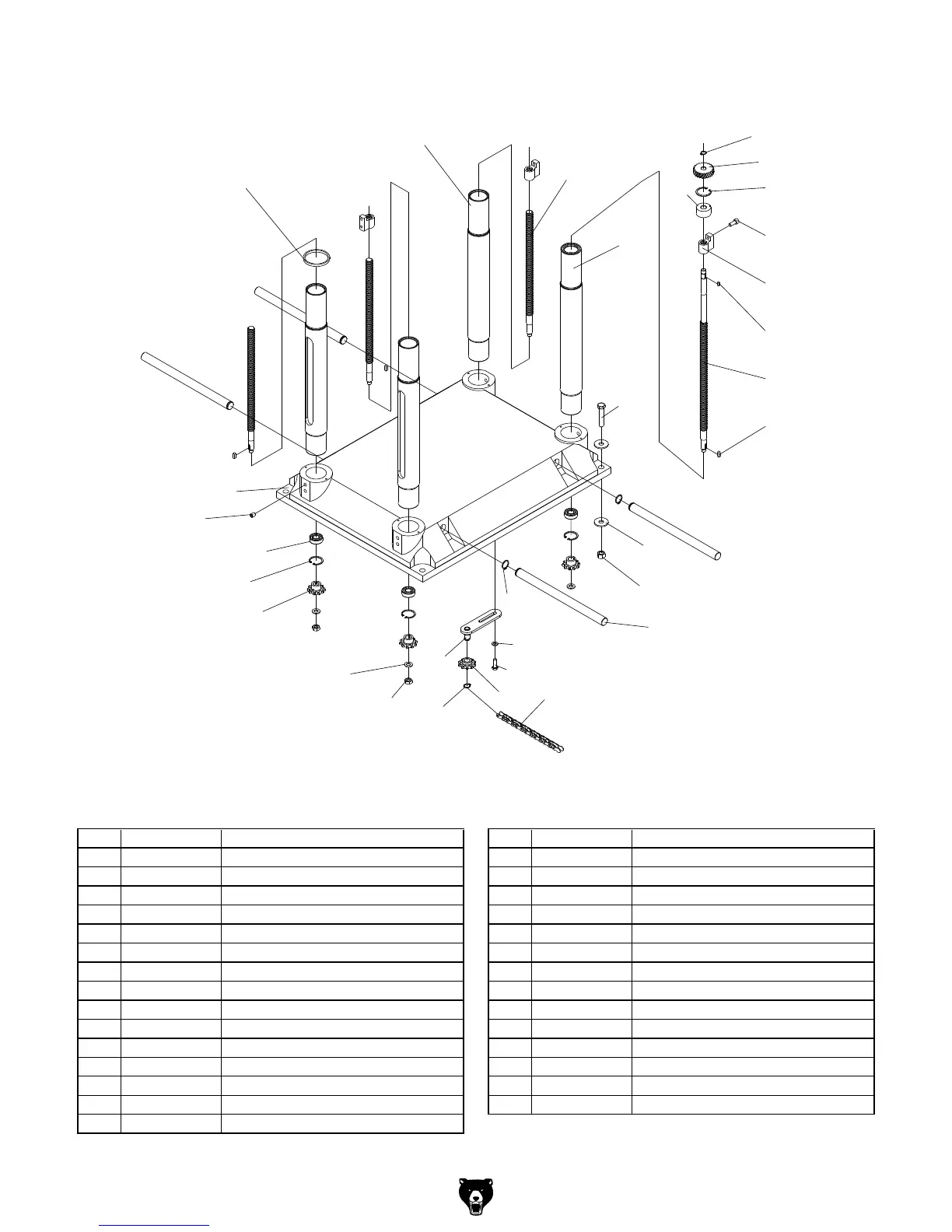

Columns Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0453Z301 BASE 317 PK69M KEY 4 X 4 X 12
302 PB24M HEX BOLT M12-1.75 X 45 318 PR03M EXT RETAINING RING 12MM
303 PN09M HEX NUT M12-1.75 319 P0453Z319 SPROCKET
304 PW06M FLAT WASHER 12MM 320 PK08M KEY 5 X 5 X 16
305 P0453Z305 COLUMN A 321 PW04M FLAT WASHER 10MM
306 P6302Z BALL BEARING 6302Z 322 PN02M HEX NUT M10-1.5
307 PR24M INT RETAINING RING 42MM 323 P0453Z323 BRACKET
308 P0453Z308 COLUMN B 324 PR05M EXT RETAINING RING 15MM
309 PR23M INT RETAINING RING 40MM 325 PB09M HEX BOLT M8-1.25 X 20
310 PSS13M SET SCREW M10-1.5 X 12 326 P0453Z326 IDLER SPROCKET
311 P0453Z311 LEAD SCREW A 327 PW01M FLAT WASHER 8MM
312 P0453Z312 LEAD SCREW B 328 P0453Z328 LIFTING BAR
313 P0453Z313 LEAD NUT 329 PR05M EXT RETAINING RING 15MM
314 PSB02M CAP SCREW M6-1 X 20 330 P0453Z330 CHAIN 12.7 A X 134
315 P0453Z315 BUSHING 331 P0453Z331 COLUMN GASKET
316 P0453Z316 GEAR
