3. Mount a top and bottom short bracket to the
left and right sides of the stand leg assembly
completed in Step 2 as shown in
Figure 6.
Secure with two M8-1.25 x 15 carriage bolts
and serrated flange nuts.
2. Secure a second leg to the top and bottom
long brackets with two M8-1.25 x 15 carriage
bolts and serrated flange nuts as shown in
Figure 5.

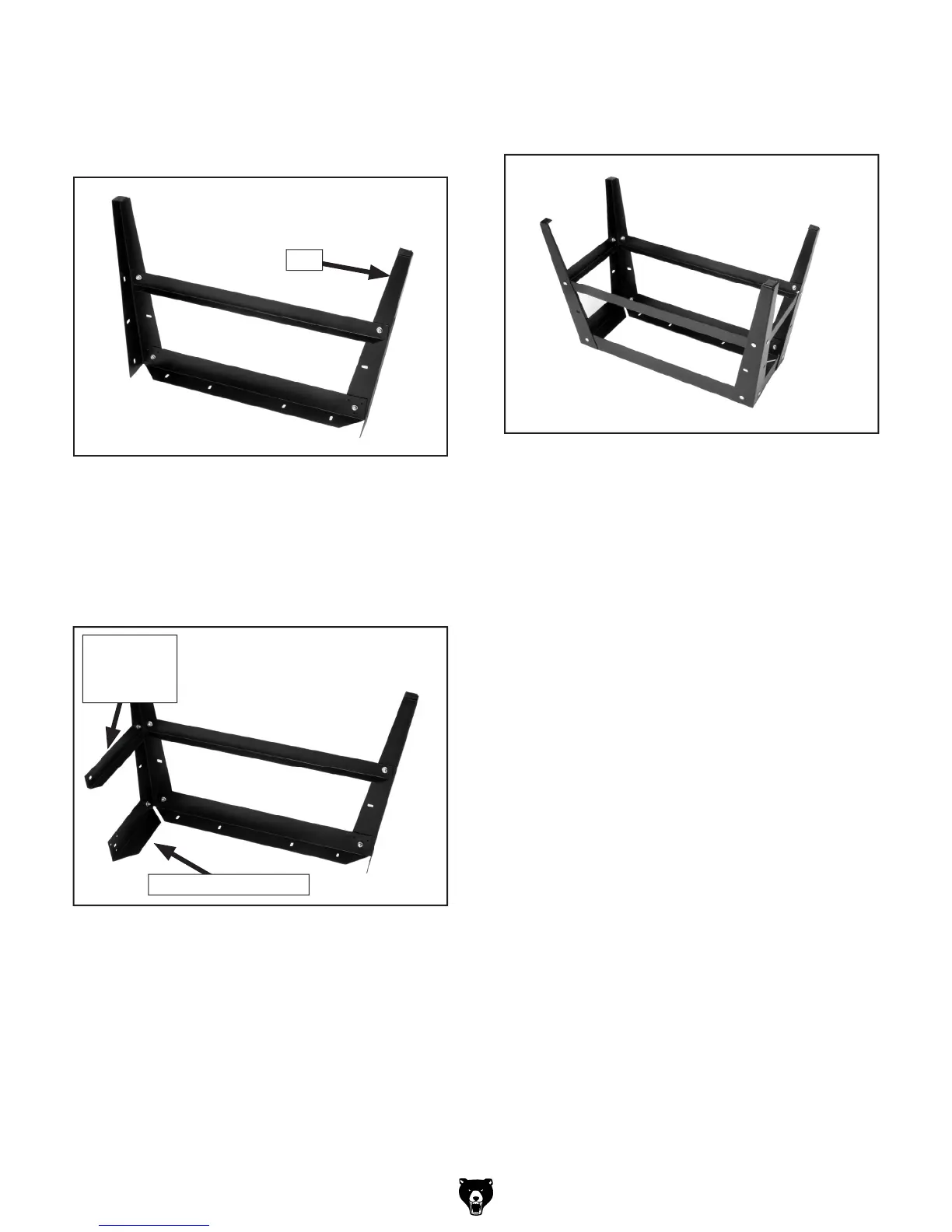

Figure 5. A completed stand leg assembly.
Leg
Figure 6. Top and bottom short brackets
secured to a stand leg assembly.
Bottom
Short
Bracket
Top Short Bracket
4. Build the rest of the stand assembly, as
shown in Figure
7, with the remaining hard-
ware.
Figure 7. Completed stand assembly.
5. Turn the stand upright and adjust it so the
legs are evenly positioned, then tighten all
the stand fasteners.
