-14-
G0458 18" Open End Belt/Drum Sander
Installing Sander on
Stand
The sander is very heavy.
DO NOT over-exert your
-
self while unpacking or
moving your machine—
get assistance.
Components and Hardware Needed: Qty
Sander ............................................................... 1
Stand Assembly ................................................
1
Hex Bolts M8-1.25 x 20 .....................................
4
Flat Washers 8mm ............................................
8
To install the sander on the stand:
1. Make sure the sander is still resting on the
shipping pallet.
2. Place the pallet and stand near the perma-
nent mounting location (once the sander is
mounted to the stand it will be difficult to
move).
3. With help of an assistant, tilt the sander back
so the side with pulley cover faces the pal
-
let, move the left bottom edge of the sander
forward, and rest the left side of the sander
on the pallet as shown in
Figure 8.
Note: The base should stick out a few inches
beyond the edge of the pallet.

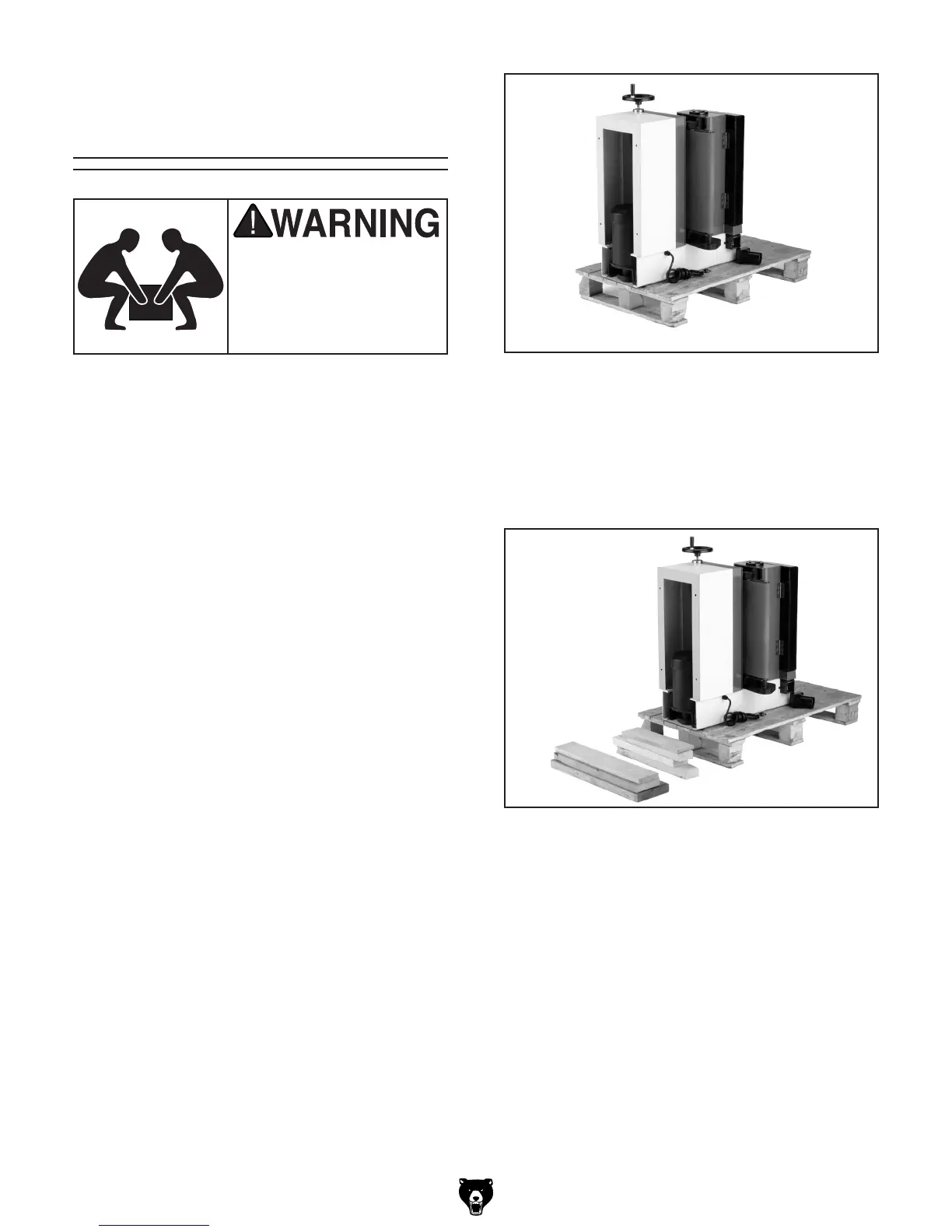

Figure 8. Sander tipped back on pallet against
pulley cover.
4. Place two stacks of blocks the same height
as the pallet and about 15 inches apart on
the floor near the sander base as shown in
Figure 9.
Figure 9. Blocks set near sander base.
