G0458 18" Open End Belt/Drum Sander
-15-

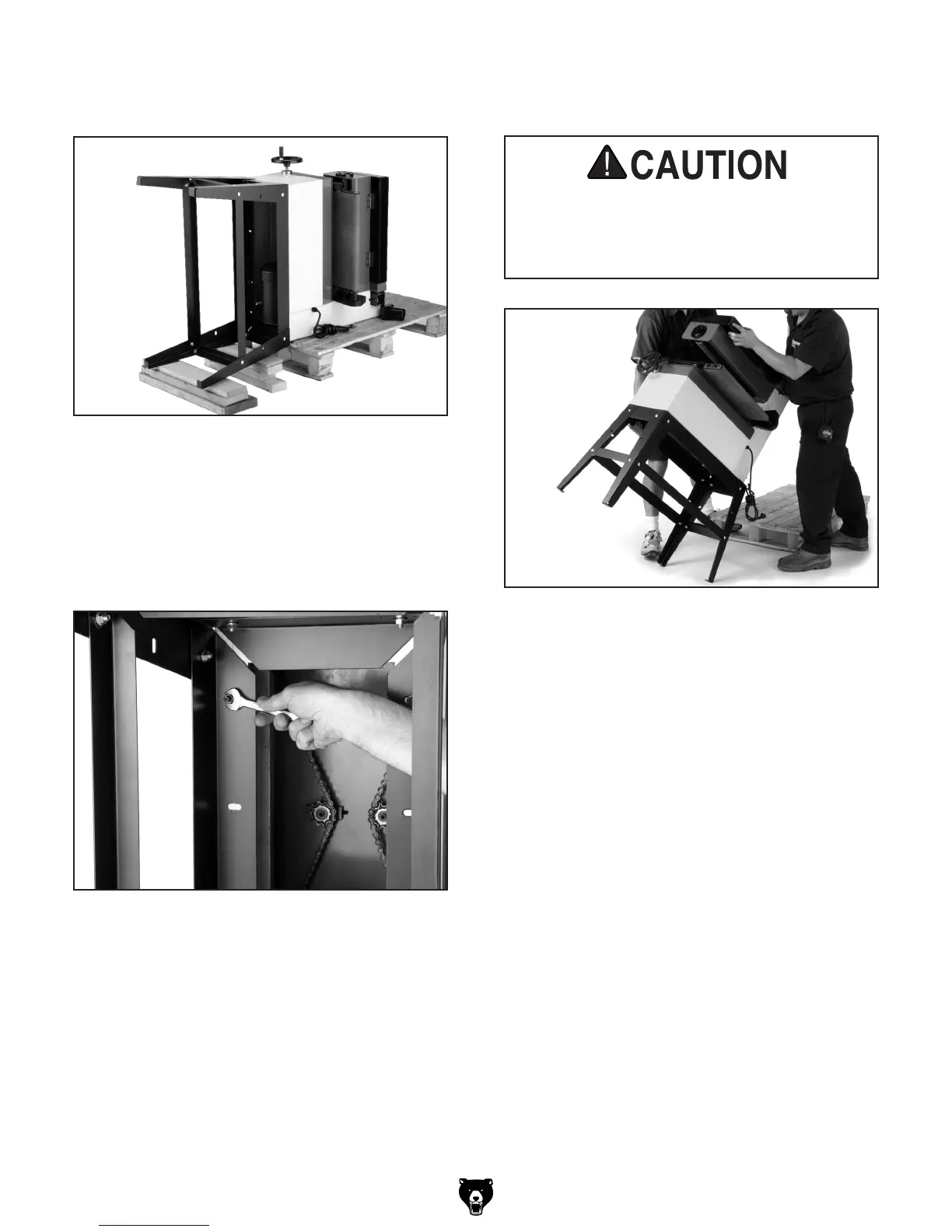

Figure 11. Mounting sander to stand.
6. Align the holes, and secure the stand to the
sander with the remaining hex bolts, wash
-
ers, and hex nuts (Figure
11).
Note: If the holes do not align, add wood
shims to adjust the block heights.
7. Lift up on the stand and remove the blocks.
8. Tighten the mounting bolts.
Figure 12. Tilting sander upright.
If the legs start to slide when tilting, you
MUST have a third person hold the stand
from sliding to avoid personal injury or
machine damage
!
5. Lay the stand on the blocks as shown in
Figure 10.
Figure 10. Stand resting on blocks.
9. Tilt the sander upright, as shown in Figure
12, so the rear legs touch the floor.
