G0458 18" Open End Belt/Drum Sander
-33-
Tools Needed: Qty
Wrench 12mm ...................................................
2
Hex Wrench 6mm ..............................................
1
An Assistant ......................................................
1
Replacing the feed belt is a simple process, but
will require tensioning and tracking when com
-
pleted.
To replace the feed belt:
1. Disconnect power to the sander!
2. Use a permanent marker, paper correction
fluid, or fingernail polish to mark the front of
the feed belt tensioning bolt
(Figure 39) on
both sides. This step will aid you in
returning
the bolts to their original position, reducing
the amount of tracking necessary
.
3. Loosen the lock nuts shown in Figure 39 and
turn both of the feed belt adjustment bolts
counterclockwise one full turn at a time to
release the tension from the feed belt.
4. Remove the outside table cap screws shown
in Figure 40 and loosen the corresponding
cap screws on the inside edge
.
Feed Belt
Replacement

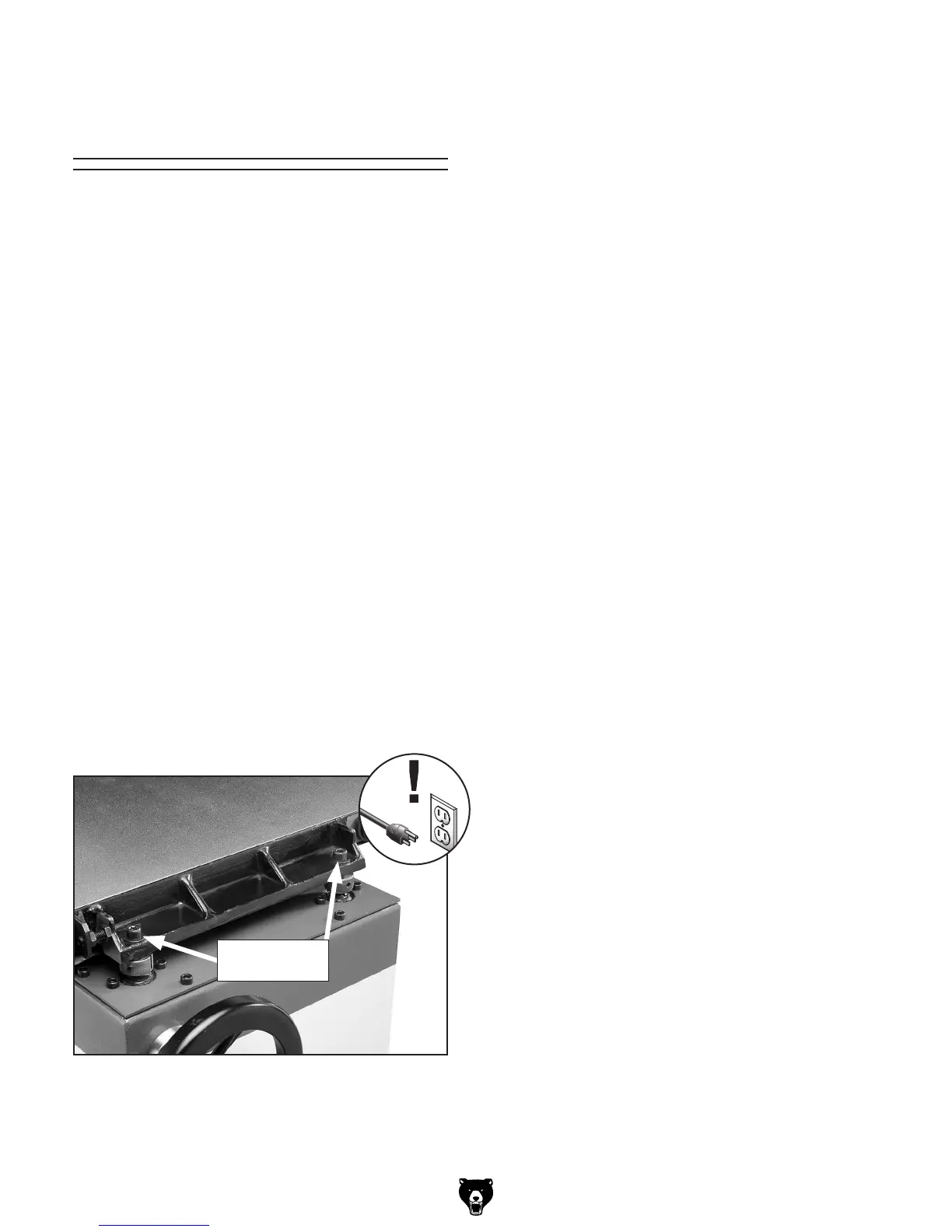

Figure 40. Feed belt table outside cap screws.
Table Cap
Screws
5. Have an assistant lift the outside edge of the
table, then slide the feed belt off.
6. Clean any dirt or dust off of the table and roll-
ers, have an assistant lift the table, then slide
the new feed belt on.
7. Re-install and tighten all of the table cap
screws.
8. Tighten the feed belt adjustment bolts equal-
ly, then follow the tensioning instructions on
Page 3
2.
Note:
The feed belt will stretch slightly when
new and will need to be re-tensioned after a
short amount of use.
9. Track the new feed belt according to the
instructions on Page 3
1.
Note: One side of the belt may need to be
tighter than the other for the belt to track
straight.
