Model G0529 (Mfd. Since 04/17)

To square the sanding tables:

1. DISCONNECT MACHINE FROM POWER!

2. Set the table at 90˚, as shown in Figure 9.

3. Place a machinist's square on the table and

against the sanding spindle to verify the

table is 90˚ from the edge of the sanding

sleeve as shown in Figure 10.

4. Adjust the pointer to 90˚.

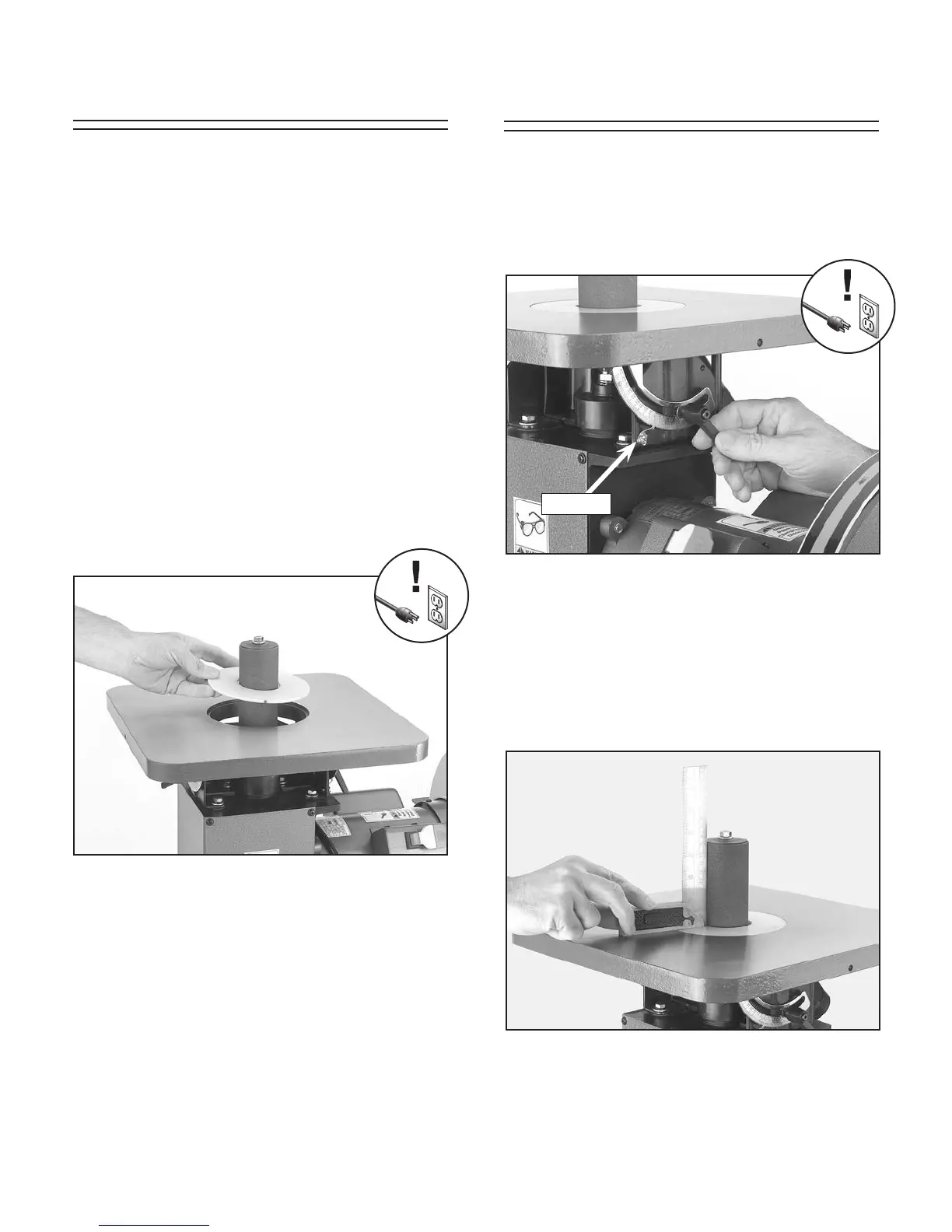

Figure 10. Squaring the table and spindle.

Figure 8. Installing table inserts.

Squaring TableTable Inserts

The table inserts minimize the gap between the

working surface edge and the spindle. It is impor-

tant to use the proper table insert according to the

diameter spindle you are using.

The Model G0529 comes with the following four

table inserts:

• 2"

• 1"

• 2" elliptical

• 1" elliptical

Select the table insert that comes closest the

spindle sleeve diameter without touching it. The

elliptical inserts are used when sanding with the

table tilted.

Place the table insert into the table hole, as

shown in Figure 8.

Figure 9. Setting the table scale at 90˚.

Pointer
