Grizzly G0529 User Manual

-28-
Model G0529 (Mfd. Since 04/17)

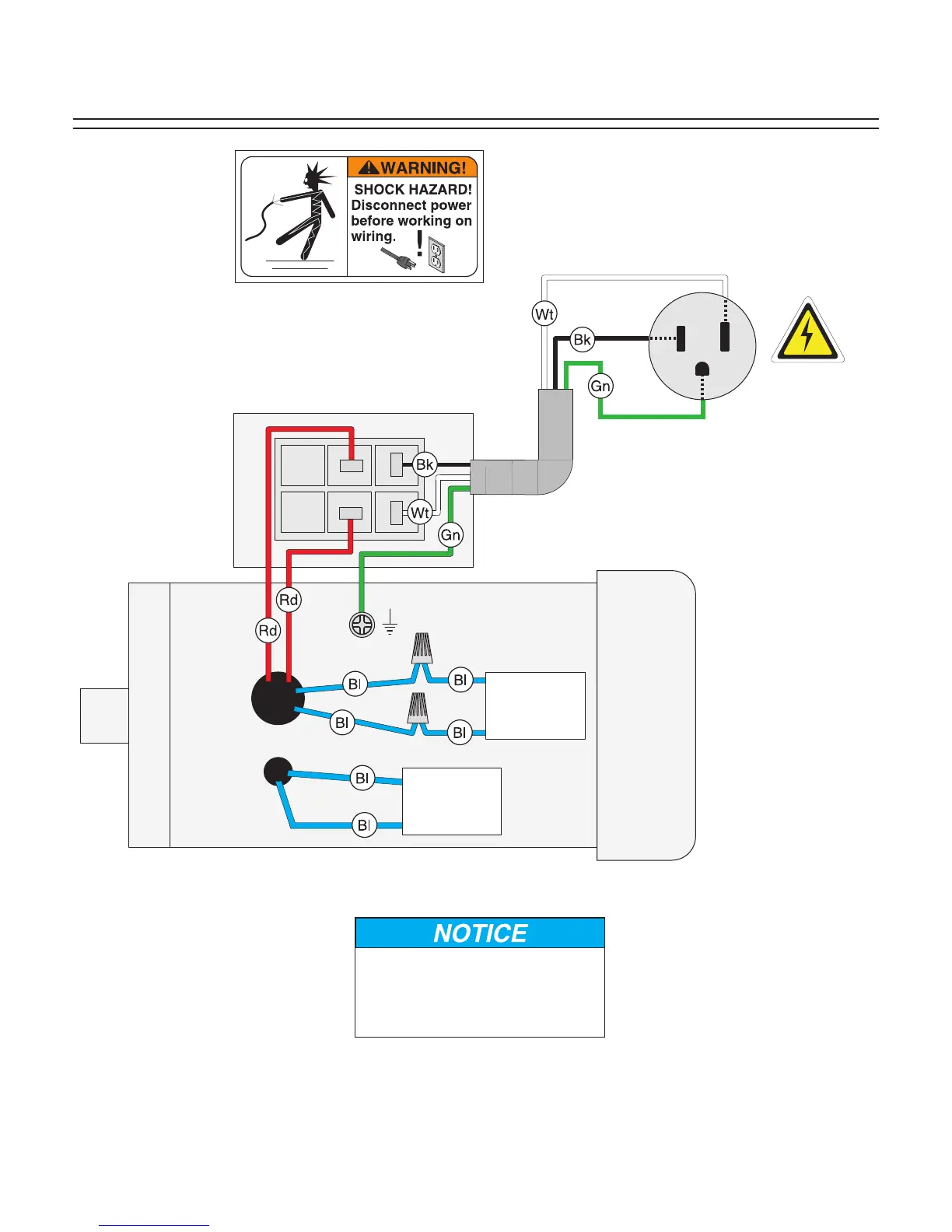

The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
Neutral
Hot
Ground
110 VAC
5-15 Plug
PADDLE SWITCH
(viewed from behind)
Ground
Run
Capacitor
45MFD
250VAC
ON OFF
Start
Capacitor
300MFD
125VAC
110V MOTOR
Wiring Diagram
