Model G0529 (Mfd. Since 04/17) -19-
Dust CollectionMiter Gauge
There are two 2" dust collection ports for the
sander that should be connected to a dust collec-
tor. The ports are located under the sanding
tables, as shown in Figure 15.

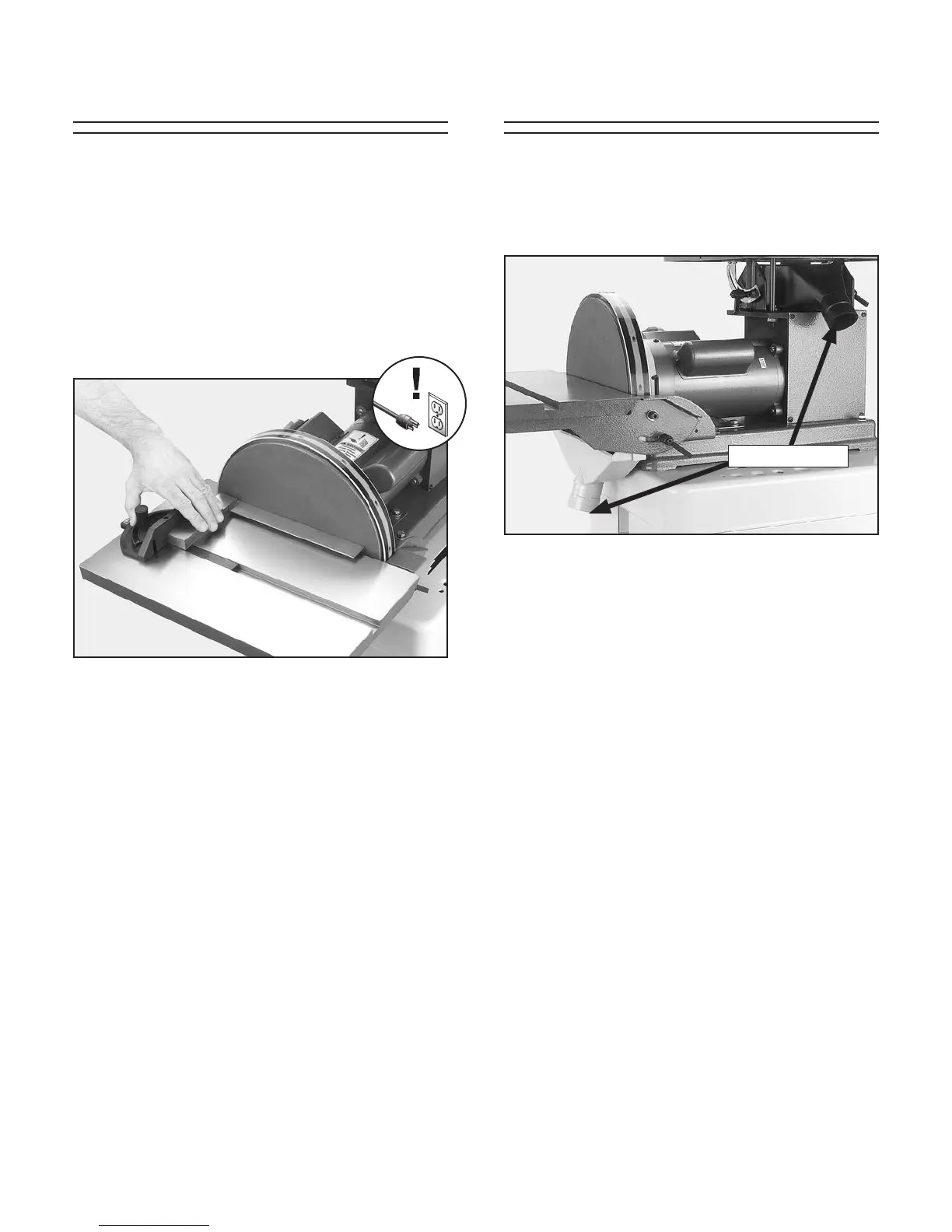

Figure 14. Squaring miter gauge to disc.
The miter gauge needs to be adjusted perpen-
dicular to the face of the wheel when it is mounted
in the table slot.
To adjust miter gauge:
1. Use a machinist's square with one edge
against the face of the miter gauge and the
other against the disc face, as shown in
Figure 14.
Figure 15. Dust port locations.
2" Dust Ports
2. Loosen the lock knob on the miter gauge to
adjust it flush with the edge of the square.
3. Tighten the lock knob, and verify the setting.
Note: Sometimes the tightening procedure
can affect the adjustment.
4. Loosen the set screw that secures the angle
pointer and adjust the pointer to the 0˚ mark
on the scale.
5. Retighten the set screw that secures the
angle pointer.
To connect your machine to a dust collection
system:
1. Use a 2" diameter hose to connect a dust
collection system to your dust ports.
2. Start the dust collection system before oper-
ating the sander.
