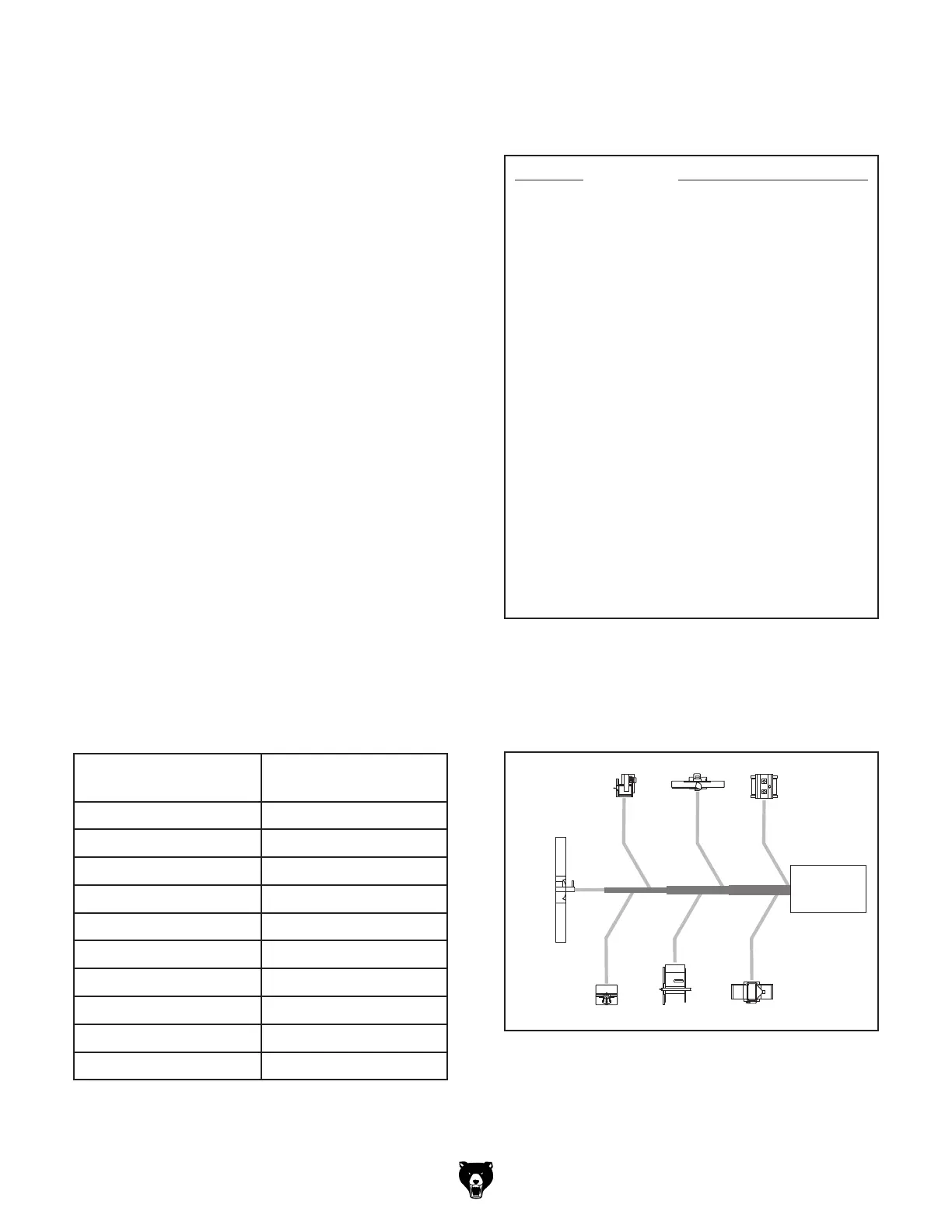

Determine Required CFMs

      
       
       
       


Figure

      
       
        

Figure 48. 

Machine
Dust Port Size
Approximate
Required CFM
2" 98
2.5" 150
3" 220
4" 395
5" 614
6" 884
7" 1203
8" 1570
9" 1990
10" 2456



Figure 49. 

Machine Average Dust Port Size
Table Saw ......................................................4"
Miter/Radial-Arm Saw ....................................2"
Jointer (6" and smaller) .................................4"
Jointer (8"-12") ...............................................5"
Thickness Planer (13" and smaller) ...............4"
Thickness Planer (14"-20") ............................6"
Shaper ...........................................................4"
Router (mounted to table) ..............................2"
Bandsaw ........................................................4"
Lathe ..............................................................4"
Disc Sander (12" and smaller) .......................2"
Disc Sander (13-18") ......................................4"
Belt Sander (6" and smaller) .........................2"
Belt Sander (7"-9") ........................................3"
Edge Sander (6" x 80" and smaller) ..............4"
Edge Sander (6" x 80" and larger) ................5"
Drum Sander (24" and smaller) ............... 2 x 4"
Drum Sander (24" and larger) .................4 x 4"
Widebelt Sander (18" and smaller) ................5"
Widebelt Sander (24"-37" single head) ...2 x 6"
Widebelt Sander (24"-51" double head) ..5 x 4"
Figure 50. 

395
395
614
790395
220
98
Table Saw
Planer/
Moulder
Miter
Saw
Jointer
Sander
PlanerShaper
Dust
Collector

