Grizzly G0690 - Fence Breakdown

Model G0690/G0691 (Mfg. 11/10+)
-83-
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
521

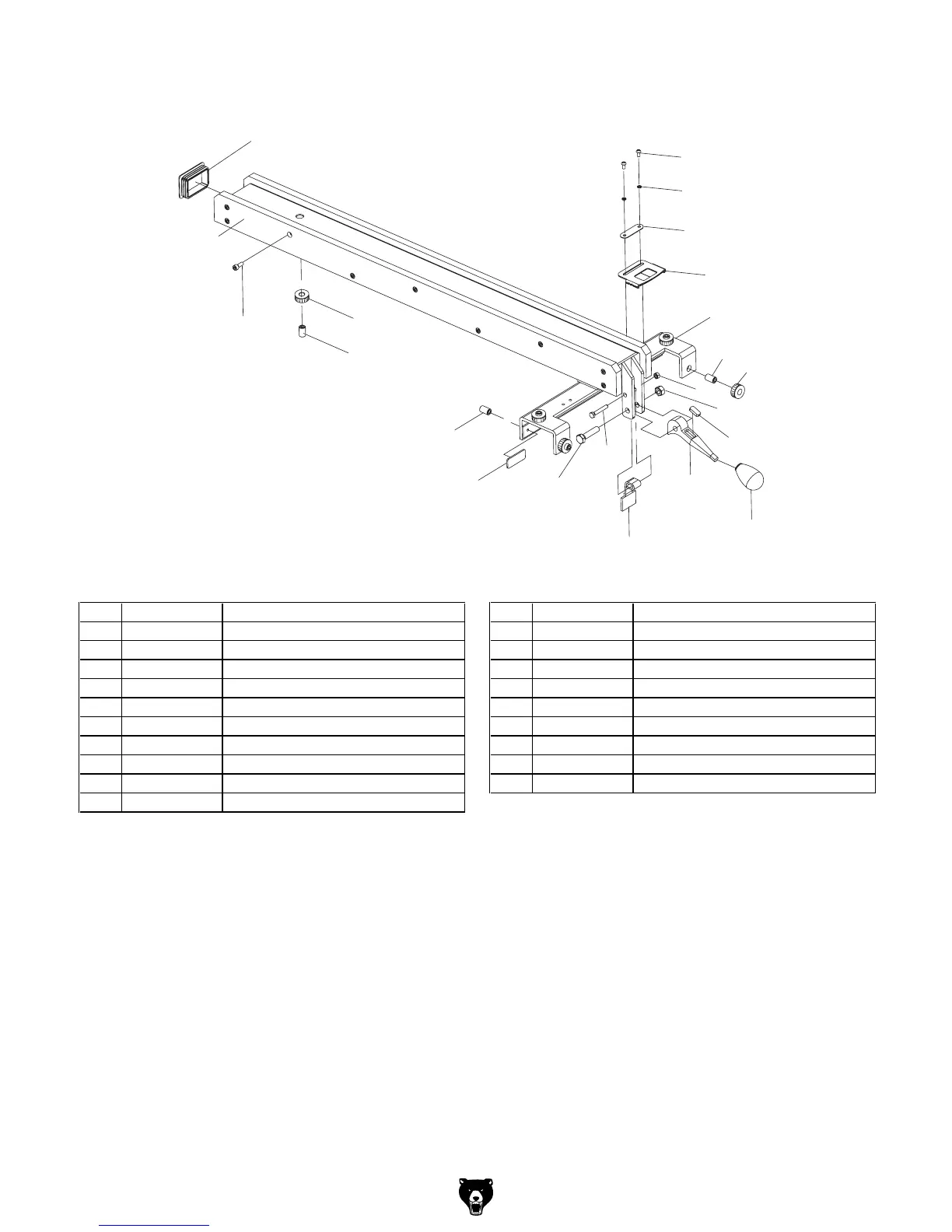

Fence Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P0690501 FENCE INSERT 512 PB47M HEX BOLT M6-1 X 40
502 P0690502 FENCE FACE 513 PLN03M LOCK NUT M6-1
503 PSB01M CAP SCREW M6-1 X 16 514 PB116M HEX BOLT M10-1.5 X 45
504 P0690504 GLIDE PAD 515 PLN10M LOCK NUT M10-1.25
505 P0690505 FENCE SCALE WINDOW 516 P0690516 CAM FOOT
506 P0690506 SET SCREW M12-1.75 X 15 517 P0690517 MAGNET
507 PS09M PHLP HD SCR M5-.8 X 10 518 P0690518 CAM
508 PLW01M LOCK WASHER 5MM 519 P0690519 FENCE LOCK KNOB
509 P0690509 INDICATOR 520 PSS32M SET SCREW M12-1.75 X 30
510 P0690510 FENCE BODY 521 P0690521 SPECIAL LOCKING NUT M12-1.75
511 P0690511 SET SCREW
