Blade Guard
Assembly
       

      

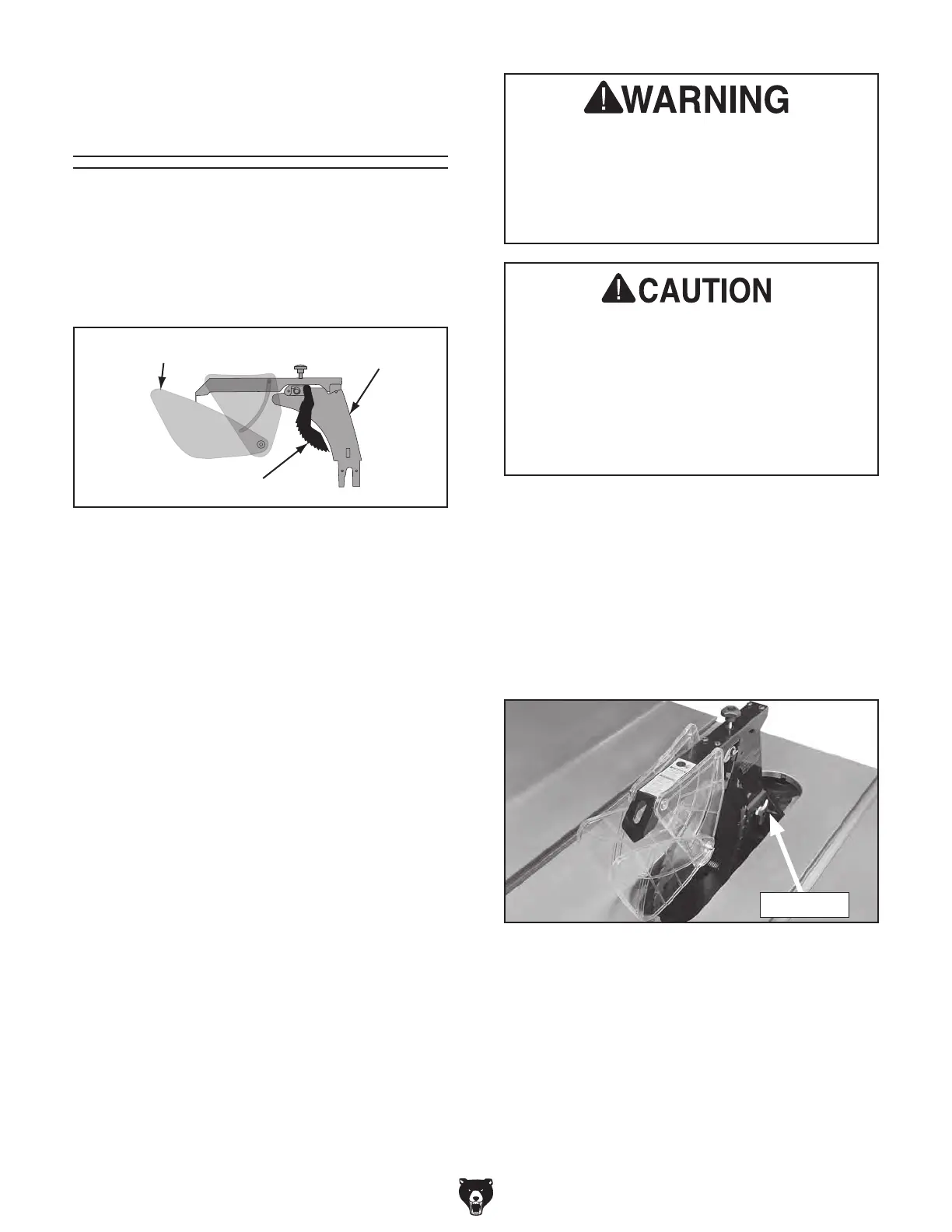

   Figure 48   


Figure 48.
HegZVYZg
8aZVgH]^ZaY
6ci^"@^X`WVX`EVla
Guard

        
        

 


      


       
       
      
       
      

Spreader
        


        
     

In order to work properly, the spreader
cannot be bent or misaligned with the blade.
If the spreader gets accidentally bent, take
the time to straighten it or just replace it.
Using a bent or misaligned spreader will
increase the risk of kickback!
Installing Blade Guard & Spreader
1. 
2. 
3. 
Figure49 

Figure 49

4. 
To ensure that the blade spreader works
safely, the specifications listed in Blade
Requirements on Page 36 MUST be met
when installing new blades.
The spreader MUST be aligned/adjusted to
the blade. These requirements do not apply
to dado blades.
