Model G0941 (Mfd. Since 09/20)
-9-

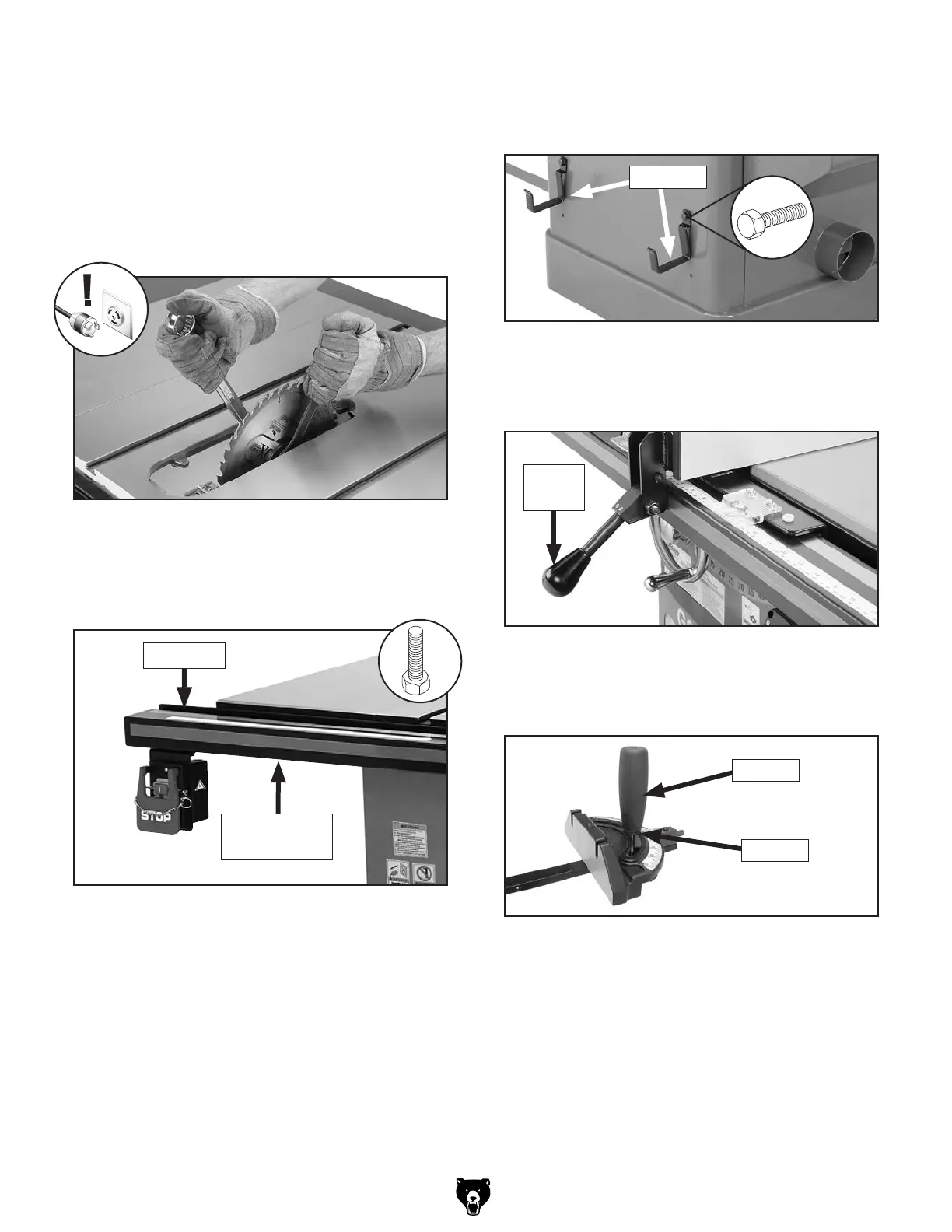

Figure 16. Example of securing blade.
13.
Remove arbor nut and arbor flange from
arbor, slide on included 10" saw blade, mak-
ing sure teeth face front of saw, then install
arbor flange and arbor nut onto blade.
18.
Install fence knob onto fence, as shown in
Figure 19.
Figure 19. Fence knob installed.
Fence
Knob
17. Install fence storage brackets (see Figure
18) onto back of cabinet with (2) M8-1.25 x
12 hex bolts.
Figure 18. Fence resting brackets installed.
Brackets
x 2
19.
Install miter gauge handle and 8mm flat wash-
er onto miter gauge, as shown in Figure 20.
Figure 20. Example of miter gauge assembled.
Handle
Washer
20. Slide miter gauge into T-slot on left side of
blade; or store it on storage brackets near
blade angle handwheel.
Refer to Page 29 of the G0651/G0652 manual for
Dust Collection information then refer to Pages
31–32 to complete machine setup.
14.
Put on heavy leather gloves and use included
arbor wrenches to tighten arbor nut (turn
clockwise to tighten), as shown in Figure 16,
then lower blade fully.
15.
Place fence guide tube over front rail and
secure with (7) M8-1.25 x 12 hex bolts (see
Figure 17).
Fence Guide
Tube
Front Rail
Figure 17. Fence guide tube attached to front
rail.
x 7
16.
Mount fence on front rail to right of blade.
To Next Page
