G1013 Combination Sander -13-

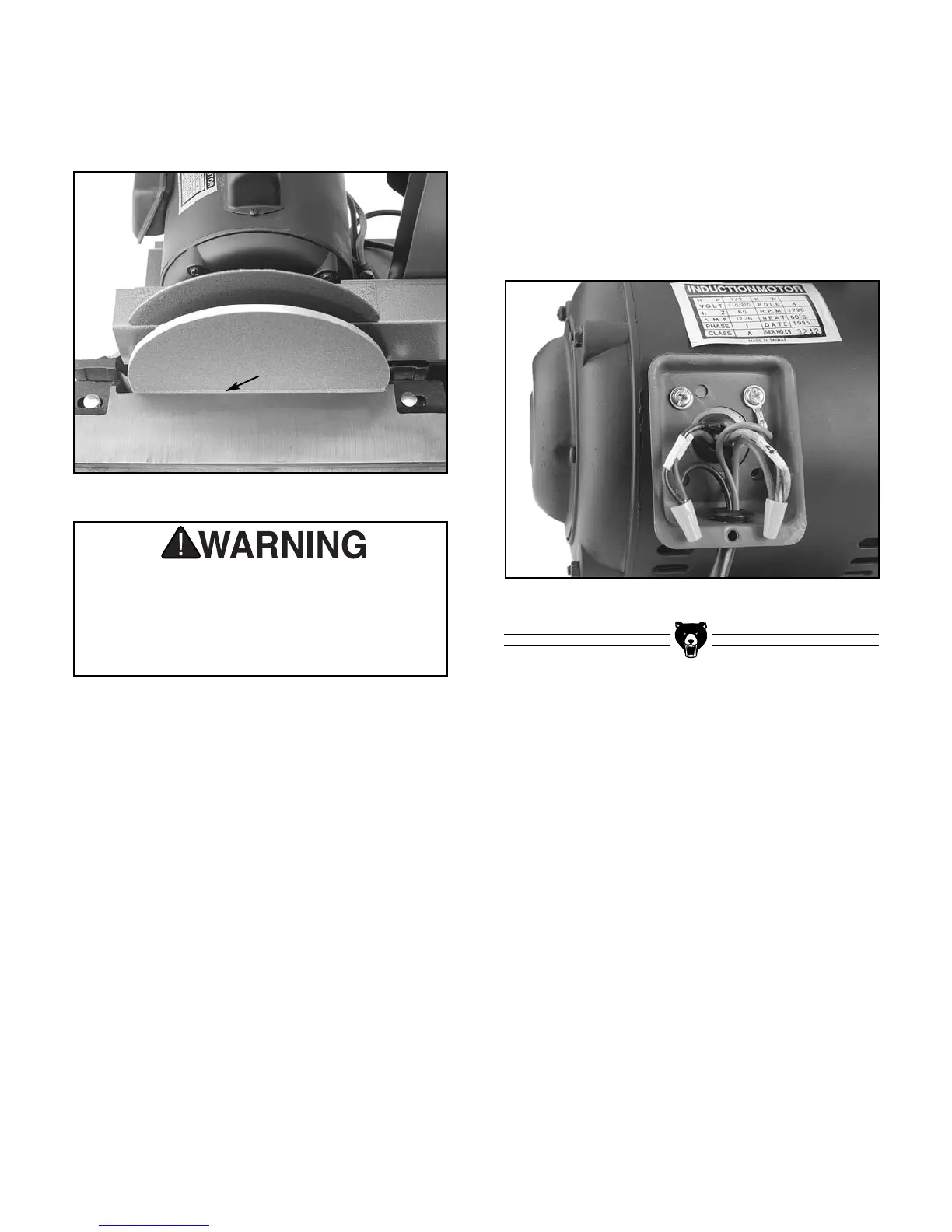

Figure 13. Table aligned with sanding disc.
Figure 14. Cordset connection at motor.
14. Align the table so that there is a
1
⁄16'' gap
between the 8" disc and the table. See
Figure 13. Tighten the bolts that secure the
table support bracket to the base.
15. Wire the motor by removing the motor junc-
tion box cover and feed the power cord from
the switch through the plastic grommet at the
bottom of the junction box. Connect the
wires according to the Wiring Diagram Insert
included with this manual. If this insert is
missing, contact the appropriate service cen-
ter listed in the Introduction for a replace-
ment. See Figure 14.
DO NOT attempt to connect or adjust wiring
with the cordset plugged into its power
source. Serious danger of electrocution
could result.
1
⁄16" Gap
