G1013 Combination Sander -19-

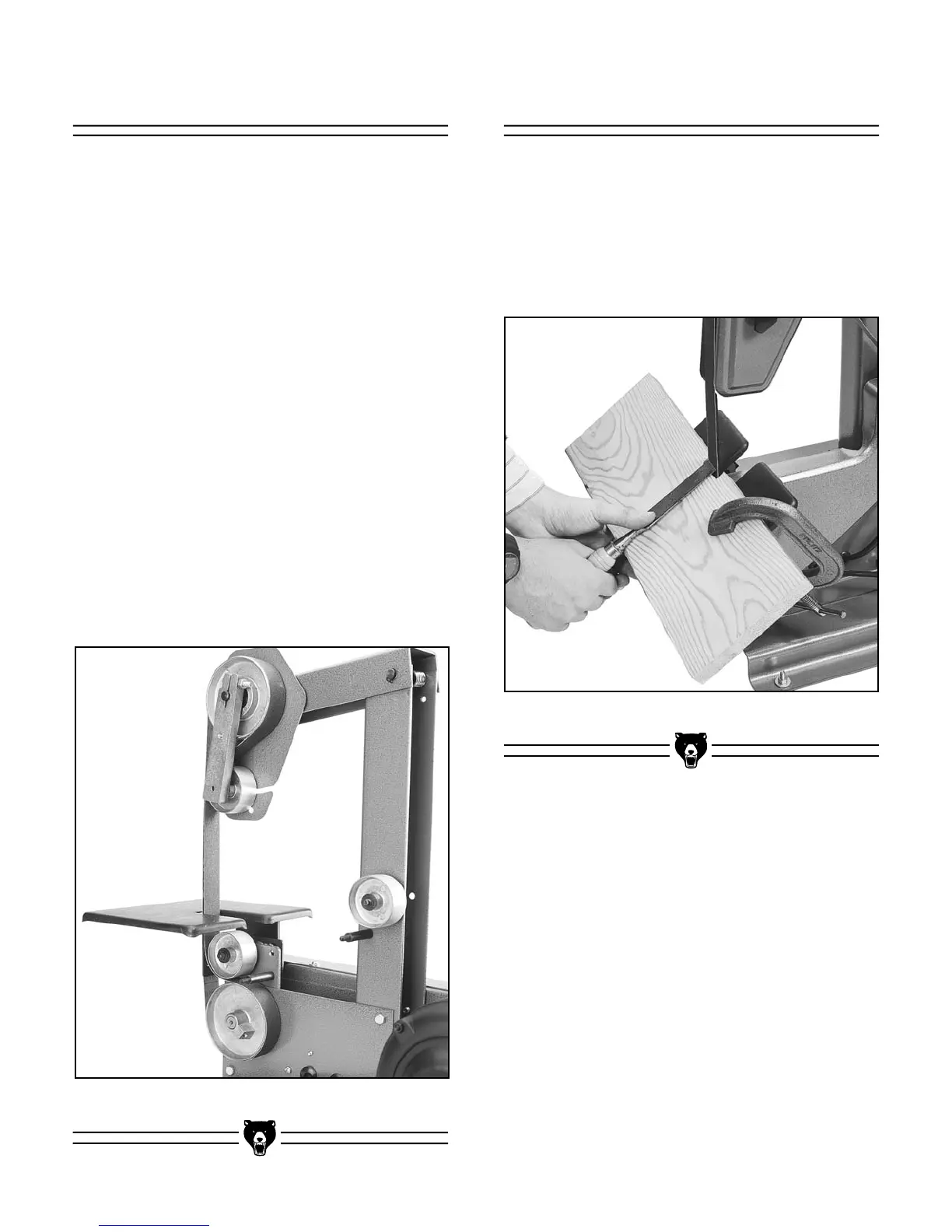

Figure 21. Belt arrangement for inside sanding.
To sand or grind an interior work area, the sand-
ing belt must be fed through the workpiece and
remounted on its rollers. Depending on your
application, you may either remove the platen or
keep it in place.
1. Remove the Belt Sanding Table and the Belt
Guards.
2. Feed the Sanding Belt through the work-
piece and over the Upper Idler Roller.
Loosen the Small Upper Idler Roller, swing it
toward the front of the machine, and feed the
belt around the pulley.
3. Press down on the top arm and feed the
remainder of the belt through the rollers as
shown in Figure 21.
4. Replace guards and table.
5. Adjust belt tracking as described in
Adjustments section.
Figure 22. False table for sharpening support.
Tilt the table to the desired sharpening angle and
secure it. Using C-Clamps, attach a suitable
wood scrap to the table. See Figure 22. This acts
as an auxiliary table to support the workpiece.
This table should be
1
⁄16" away from the belt. It
may be necessary to cut a notch in your auxiliary
table to achieve this clearance.
