G1021 15" Planer -27-
3. The oil level in the gearbox should be to the
bottom of the filler plug near the top of the
gearbox. Top off with 80-90 wt. gear oil if
necessary. Use 50 wt. motor oil if you are
working in an unheated winter shop. See
Figure 30.
4. Drain and replace the oil yearly. See Figure
31.

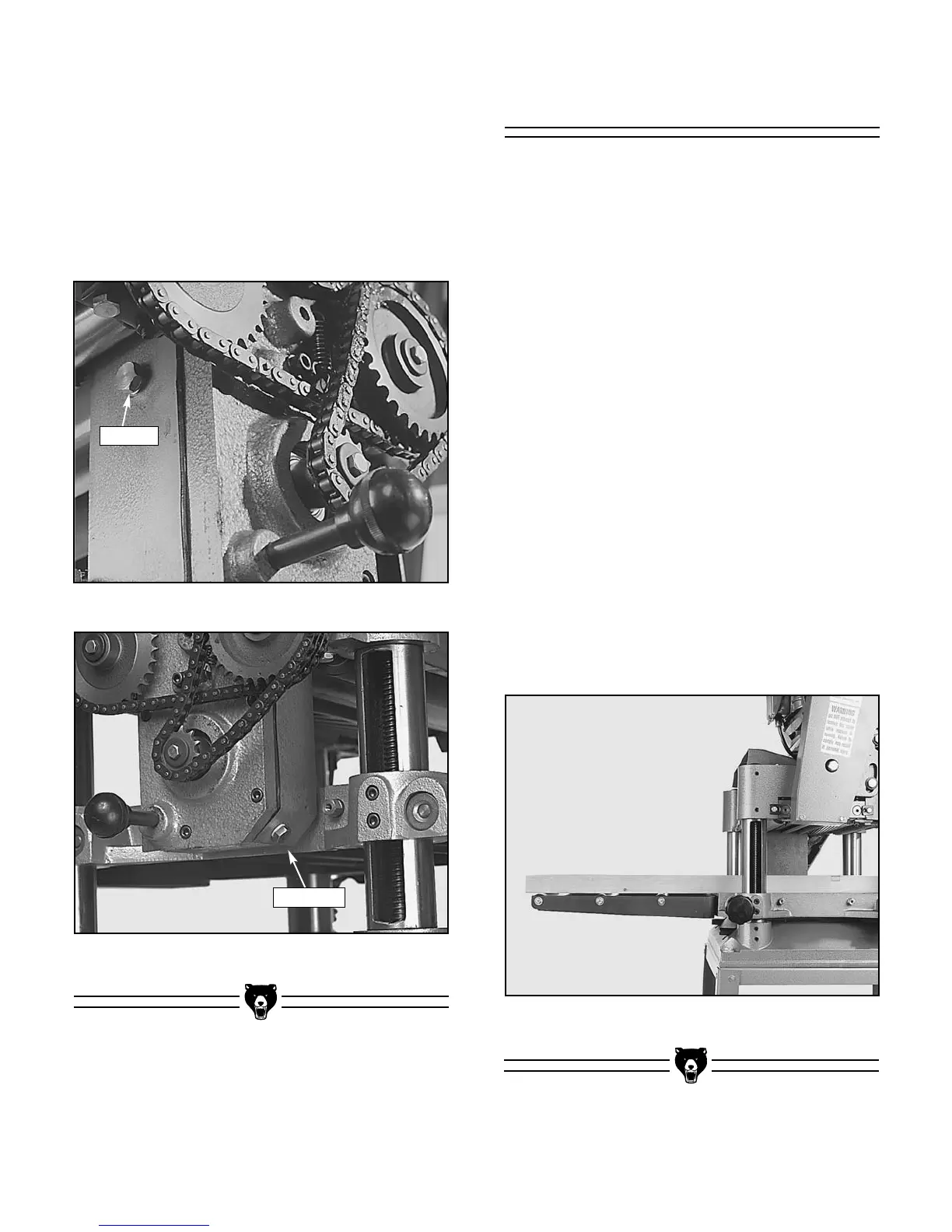

Figure 30. Location of gearbox fill plug.
Figure 31. Location of gearbox drain plug.
Fill Plug
Drain Plug
N. EXTENSION ROLLERS
If you elected to wait to install the extension
rollers during the assembly process, install the
extension rollers now. Refer to the Assembly
Section.
To adjust the extension rollers:
1. Lower the table and position a flat board, so
it lays on the table and suspends over one of
the extension rollers. See Figure 32.
2. Adjust the tightness of the mounting bolts
and the depth of the setscrews on the exten-
sion roller body. Various combinations of
loosening and/or tightening the setscrews
and bolts will level the extension rollers with
the table. When the outermost extension
roller touches the bottom of the board, stop
adjusting and secure the extension roller to
the body.
3. Repeat steps 1-3 for the other extension
roller assembly.
Figure 32. Inspecting extension roller height.
Extension Rollers

Grizzly G1021 Specifications

General

Model	G1021
Type	Planer
Number of Knives	3
Maximum Cutting Width	15 inches
Maximum Cutting Depth	1/8 inch
Dust Port Size	4 inches
Feed Rate	20 FPM
Feed Speed	20 FPM
