Grizzly G1183 - 110 V and 220 V Wiring Diagrams



READ ELECTRICAL SAFETY
ON PAGE 37!

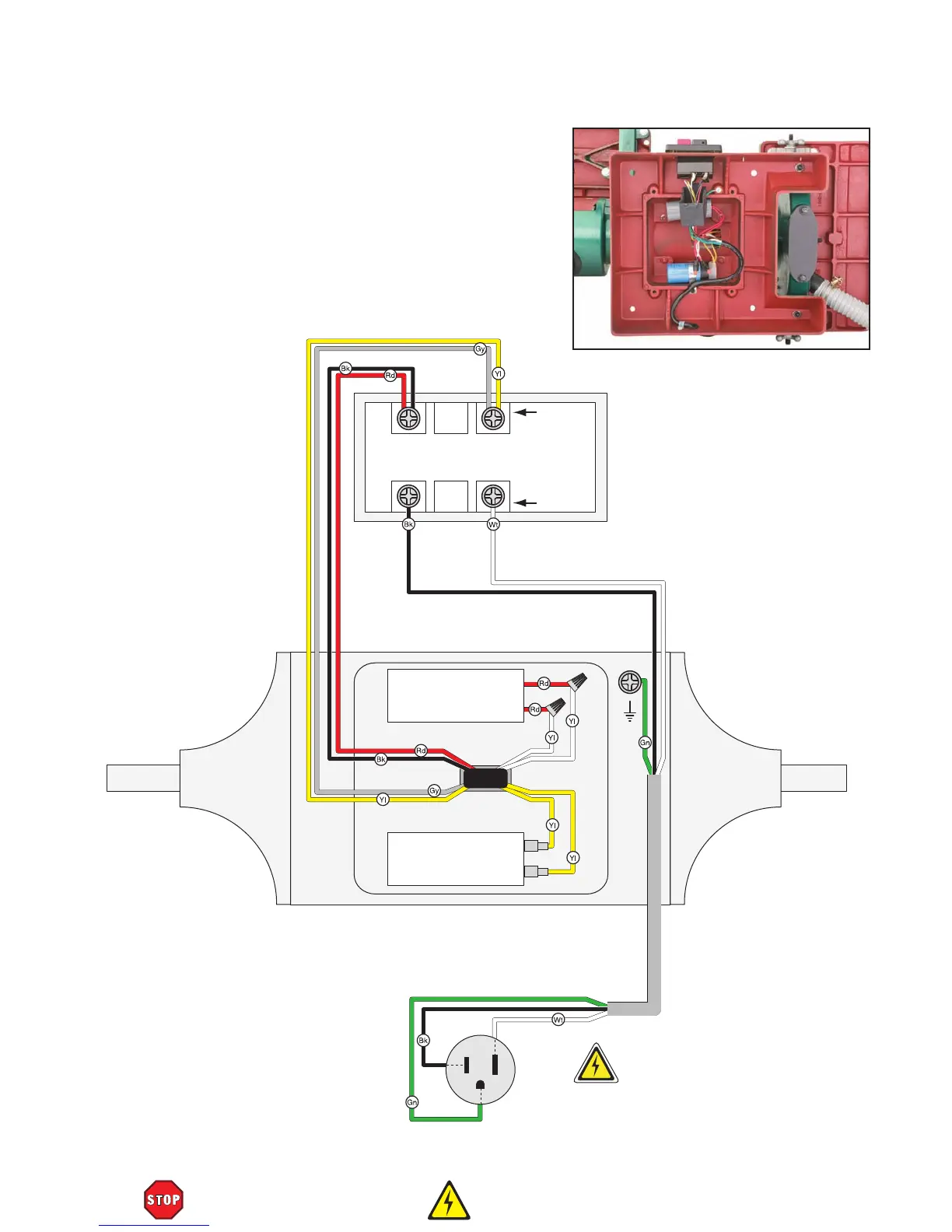

110V Wiring Diagram
Motor
(viewed from bottom)
B1 B2 B3
A1 A2 A3
B1
A1
B2
A2
B3
A3
Ground
ON/OFF
Switch
110VAC NEMA 5-15
(As Recommended)
Start Capactitor
200M 250V
Run Capactitor
25M 350V
Neutral
Hot
Ground
Figure 51.
