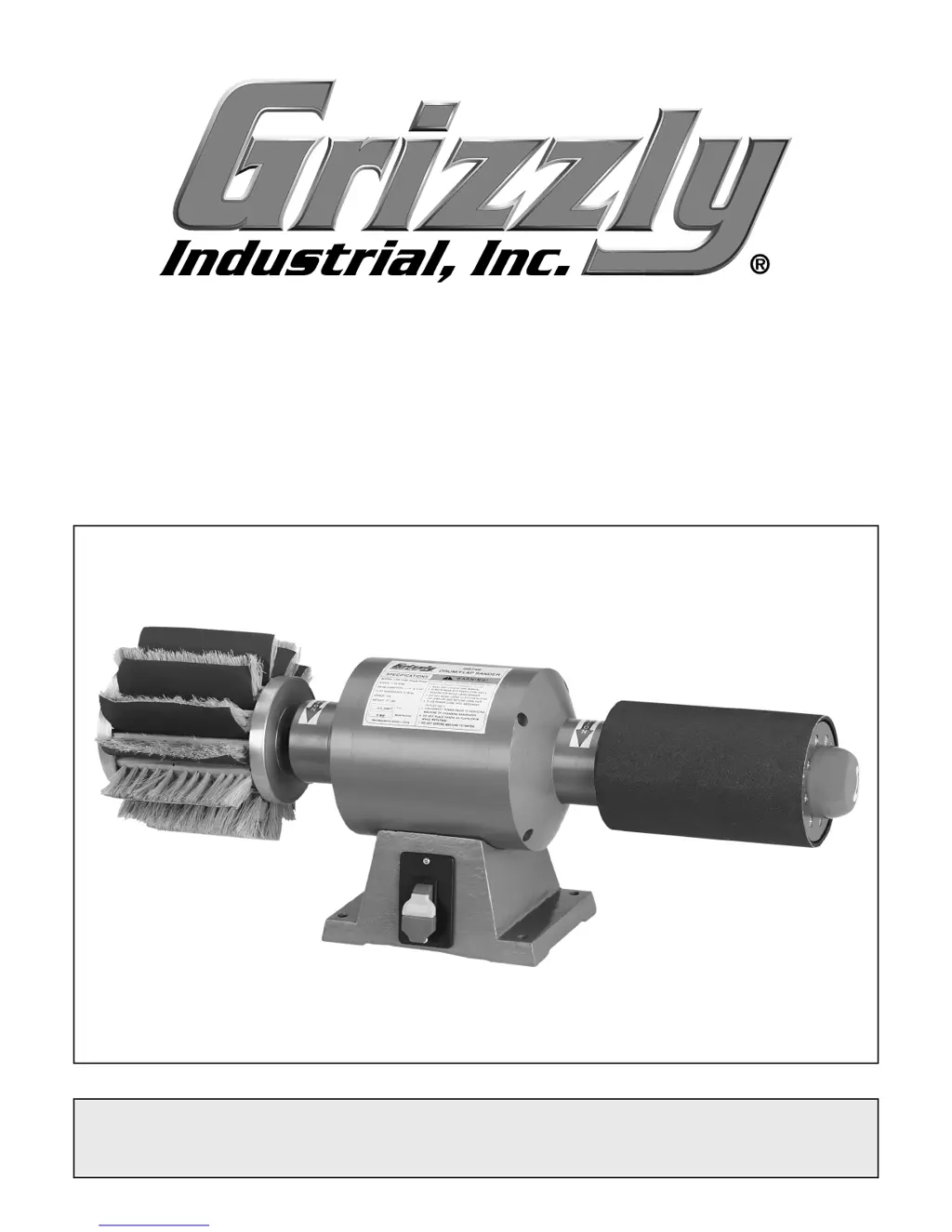

MODEL G8749
DRUM/FLAP SANDER
OWNER'S MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.


Table of Contents

Other manuals for Grizzly G8749

Preview: Instruction Manual
Instruction Manual24 pages
Preview: Parts List
Parts List2 pages

Questions and Answers

  • A
    Anita LambertAug 18, 2025
    What to do if my Grizzly G8749 Sander motor won't start and the fuses or circuit breakers blow?
    • C
      Christopher WilliamsAug 18, 2025
      If your Grizzly Sander motor won't start and the fuses or circuit breakers are blowing, it could be due to several reasons. First, inspect the line cord or plug for damaged insulation and shorted wires. Second, check all connections on the motor for loose or shorted terminals or worn insulation. Finally, ensure that you have the correct fuses or circuit breakers installed in the power line.
  • E
    Eddie CamposAug 20, 2025
    Why does my Grizzly Sander motor stall and blow fuses or trip the circuit?
    • E
      Edward WestAug 20, 2025
      Your Grizzly Sander motor might stall due to several reasons, leading to blown fuses or a tripped circuit. Begin by inspecting the motor connections for loose or shorted terminals, or worn insulation. Also, low voltage could be a contributing factor, so correct any low voltage conditions. Ensure that the fuses or circuit breakers in the power line are the correct ones. Finally, the motor might be overloaded, so reduce the load.
  • T
    Todd GriffinAug 23, 2025
    Why does my Grizzly G8749 motor overheat?
    • M
      Martin HughesAug 23, 2025
      If your Grizzly Sander motor overheats, it could be because the motor is overloaded, so you should reduce the load on the motor. Another possible cause is restricted air circulation through the motor. If this is the case, clean out the motor to allow normal air circulation.
  • Q
    qbullockAug 26, 2025
    Why does my Grizzly G8749 Sander motor fail to develop full power?
    • J
      joel96Aug 26, 2025
      If the Grizzly Sander motor fails to develop full power, it may be due to an overloaded power line with lights, appliances, and other motors; try reducing the load on the power line. Another potential cause is undersized wires or circuits that are too long; consider increasing wire sizes or reducing the wire length. It could also be due to general overloading of power company facilities; in that case, request a power check from the power company.
  • S
    Sara WrightAug 27, 2025
    What to do if my Grizzly G8749 Sander motor will not start?
    • E
      erikwilliamsAug 27, 2025
      If your Grizzly Sander motor won't start, first check the power line for proper voltage. Second, inspect all lead connections on the motor for loose or open connections.
  • U
    uschmidtAug 29, 2025
    What to do if the sanded surface from my Grizzly G8749 Sander has grooves or scratches?
    • L
      lauranicholsonAug 30, 2025
      If the sanded surface has grooves or scratches, it could be that the sanding sleeve has a tear or something is embedded in the surface of the sleeve; if so, replace the sanding sleeve. It could also be that the workpiece is not being moved across the flap or drum surface; gently sweep the workpiece from right to left over the surface of the drum or flap attachment.
  • K
    Kelly MaciasSep 1, 2025
    What to do if my Grizzly Sander machine slows down when operating?
    • B
      Brian PetersonSep 1, 2025
      If your Grizzly Sander slows down during operation, it might be because you are applying too much pressure to the workpiece. Try to feed the workpiece slower.
  • C
    Chelsey MurphySep 3, 2025
    Why does the Grizzly Sander leave burn marks on the workpiece?
    • R
      Ricardo BaileySep 3, 2025
      Burn marks can appear on the workpiece for several reasons: * The sandpaper grit might be too fine; try using a coarser grit. * Too much pressure may be applied to the workpiece against the sanding abrasive; reduce the pressure. * The workpiece might be held too still against the sanding abrasive; continuously move the workpiece back and forth across the sanding abrasive surface.
  • J
    Jennifer SmithSep 5, 2025
    What to do if sanding surfaces clog quickly or burn when using my Grizzly G8749 Sander?
    • P
      Paul GonzalezSep 5, 2025
      If sanding surfaces clog quickly or burn, it could be due to: applying too much pressure to the workpiece against the sanding abrasive (reduce the pressure), or sanding softwood or stock with high residue (consider using different stock or frequently cleaning/replacing the sandpaper).
  • S
    Susan WilliamsSep 8, 2025
    How to prevent deep sanding grooves or scars in the workpiece with my Grizzly G8749?
    • L
      Lauren HardinSep 8, 2025
      To prevent deep sanding grooves or scars, consider the following: 1. The sandpaper grit may be too coarse, so use a finer grit sandpaper. 2. Ensure you are sanding with the grain, not across it. 3. Reduce the amount of pressure applied to the workpiece against the sanding abrasive. 4. Continuously move the workpiece back-and-forth across the sanding abrasive surface; avoid holding it still for too long.

Summary

Introduction

Manual Accuracy

Information on the accuracy of the manual and how to report errors or get updates.

Contact Information

Details for contacting Grizzly Industrial for service, parts, or general questions.

Functional Overview

Description of the Drum/Flap Sander's primary uses and operations.

Model Identification

Machine Data Sheet

Safety Instructions

General Machinery Safety

Essential safety guidelines for operating any machinery to prevent injury.

Sander-Specific Safety

Special safety precautions and guidelines specific to sander operation.

Electrical Circuit Requirements

110 V Operation Details

Specific electrical requirements and considerations for 110V operation.

Extension Cord Guidelines

Recommendations and requirements for using extension cords safely and effectively.

Setup Procedures

Setup Safety Precautions

Crucial safety warnings and advice to follow during the setup process.

Required Setup Items

List of tools and hardware not included with the machine, needed for setup.

Unpacking and Inspection

Instructions for safely unpacking the machine and inspecting for damage.

Component Inventory

List and identification of all parts included with the machine.

Site Considerations

Guidelines for selecting a suitable location and workspace for the machine.

Mounting the Sander

Detailed instructions on how to securely mount the sander to a workbench.

Performing a Test Run

Steps to follow for initial testing of the machine's operation and safety features.

Assembly Instructions

Step-by-step guide for assembling the flap sander and drum attachments.

Attaching the Flap Sander

Detailed procedure for mounting the flap sander attachment to the machine.

Reversing Sanding Sleeve Rotation

Instructions on how to reverse the rotation direction of the sanding sleeves.

Mounting Sanding Drums

Procedure for mounting the sanding drums and checking their air pressure.

Operating the Sander

Operation Safety Precautions

Essential safety guidelines to follow during the operation of the sander.

Sanding Techniques and Tips

Advice and best practices for achieving effective sanding results.

Drum Sanding Operation

Guidance on performing sanding operations using the drum attachment.

Flap Sanding Operation

Instructions for sanding rounded or spherical shapes using the flap sander.

Available Accessories

Aluminum Oxide Sanding Sleeves

List of available sanding sleeves with different grits and diameters.

Flap Sander Sandpaper Rolls

Available sandpaper rolls for flap sanders in various grits.

Replacement Flap Brushes

Information on replacement flap brushes for the sander.

Respirator Accessories

Details on half-mask respirators for dust protection.

Eye Protection Accessories

Selection of safety glasses and face shields meeting ANSI standards.

Maintenance Schedule and Procedures

Maintenance Schedule

Recommended maintenance tasks to perform daily and regularly.

Cleaning the Sander

Instructions for cleaning the machine to maintain optimal performance and appearance.

Lubrication Requirements

Information on the lubrication needs of the machine's bearings.

Replacing Sanding Sleeves

Step-by-step guide on how to remove and install new sanding sleeves.

Replacing Flap Sandpaper and Brushes

Detailed instructions for replacing the sandpaper and brushes on the flap sander.

Service and Troubleshooting

Troubleshooting Guide

Common problems, their possible causes, and suggested solutions for the machine.

Motor and Electrical Troubleshooting

Diagnosing and resolving issues related to the motor and electrical components.

Operation Troubleshooting

Resolving common operational issues encountered during sander use.

Wiring Information

Wiring Safety Instructions

Critical safety guidelines for anyone working with the machine's electrical wiring.

Wiring Diagram

Visual representation of the machine's internal electrical connections.

Parts Breakdown and List

Parts Breakdown Diagram

Exploded view diagram illustrating the machine's components and their references.

Parts List with Numbers

Comprehensive list of all machine parts with corresponding part numbers and descriptions.

Warranty and Returns Policy

Grizzly G8749 Specifications
