G1199/G1200 Drill Press -9-

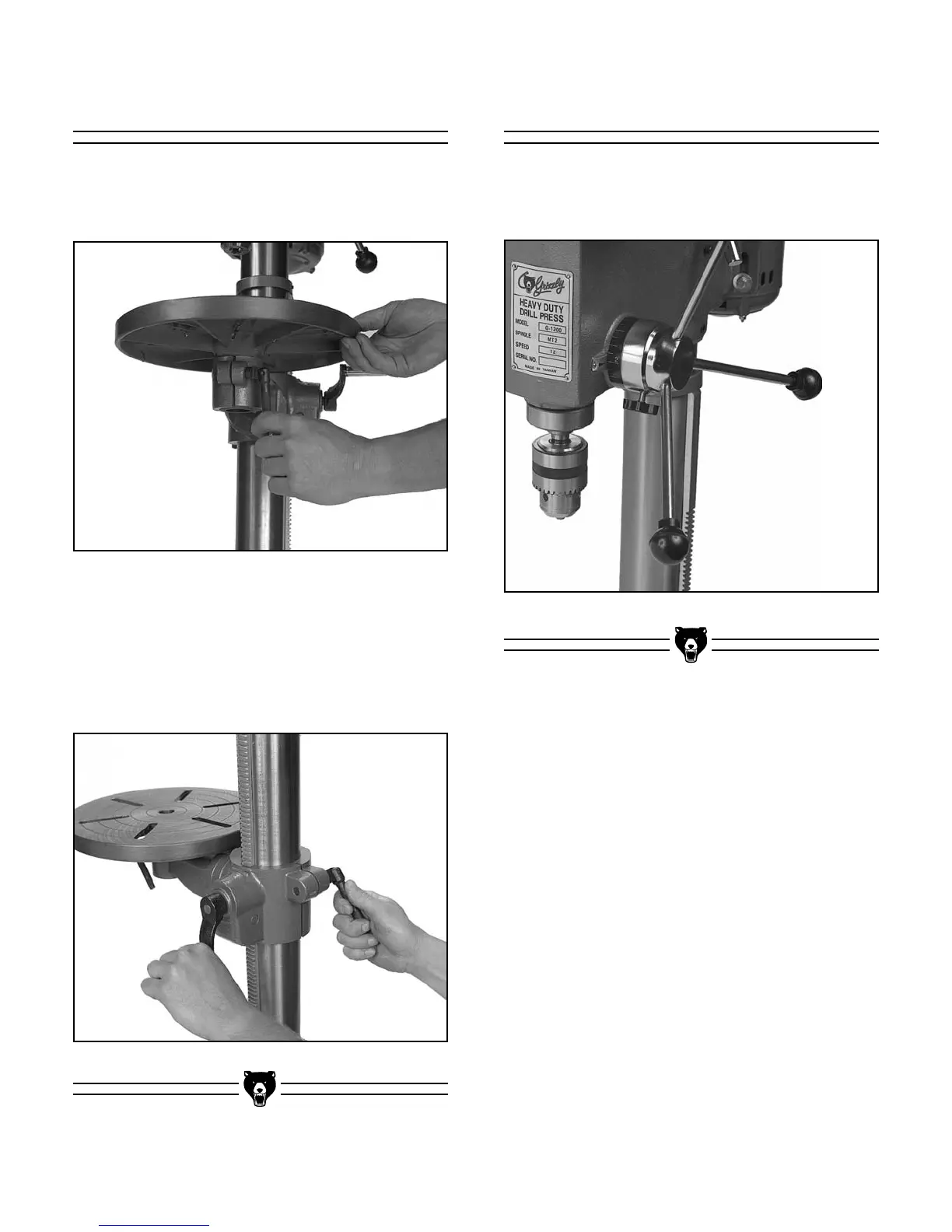

Figure 6. Installing the table.
2. Turn the crank handle to be sure the worm
pinion engages the teeth on the rack and
moves the bracket up and down. Figure 7.
CAUTION: Never use the drill press with
either table lock loose.
1. Place the table into the hole in the table brack-
et and secure with the handle. Figure 6.
Table
Screw the three handle bars into the tapped holes
in the handle body. Figure 8.
HHAANNDDLLEESS
Figure 8. Handles installed.
Figure 7.
