Grizzly G4002 User Manual

Model G4003 (Mfd. Since 6/20)
-13-
Inventory
Description Qty
• Lathe ...........................................................1
• 6" 3-Jaw Chuck with 2 Sets of Jaws ...........1
• 8" 4-Jaw Chuck with Reversible Jaws ........1
• 10" Faceplate ...............................................1
• Steady Rest .................................................1
• Follow Rest ..................................................1
• Quick Change Tool Post with Holder ..........1
• 4-Piece Insert Tool Holder Set ....................1
• Change Gear Set ........................................7
–26T, 27T, 35T, 36T, 45T, 50T, 60T
• Open-End Wrench Set ................................4
–9/11, 10/12, 12/14, 17/19mm
• Hex Wrench Set ..........................................6
–2.5, 3, 4, 5, 6, 8, 10mm
• Flat Screwdriver #2 .....................................1
• Phillips Screwdriver #2 ................................1
• Lathe Chuck Key .........................................1
• Dead Center MT#3 HSS Tip .......................1
• Dead Center MT#3 Carbide Tip ..................1
• Live Center MT#3 ........................................1
•
1
⁄2" Drill Chuck with MT#3 Arbor ..................1
• Spindle Sleeve MT#5/MT#3 ........................1
• Oil Can ........................................................1
• Toolbox ........................................................1
• Hardware Bag .............................................1
–Hex Bolts M12-1.75 x 40
........................... 6
–Flat Washers 12mm
................................. 6
–Cap Screws M6-1 x 8
............................... 8
–Flat Washers 6mm
................................... 8
–Hex Nuts M6-1
......................................... 8
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at (570) 546-9663
for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, inventory the contents.
Unpacking
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Additional People ........................................1
• Safety Glasses ................1 For Each Person
• Cleaner/Degreaser (Page 14) .....As Needed
• Quality Metal Protectant ..............As Needed
• Disposable Shop Rags ................As Needed
• Precision Level ............................................1
• Lifting Straps (rated for at least 1300 lbs.) ..2
• Forklift/Power Lifting Device (rated for at least
1300 lbs.) .....................................................1
• Bench or Stand Mounting Hardware
....................................................As Needed
Needed for Setup
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

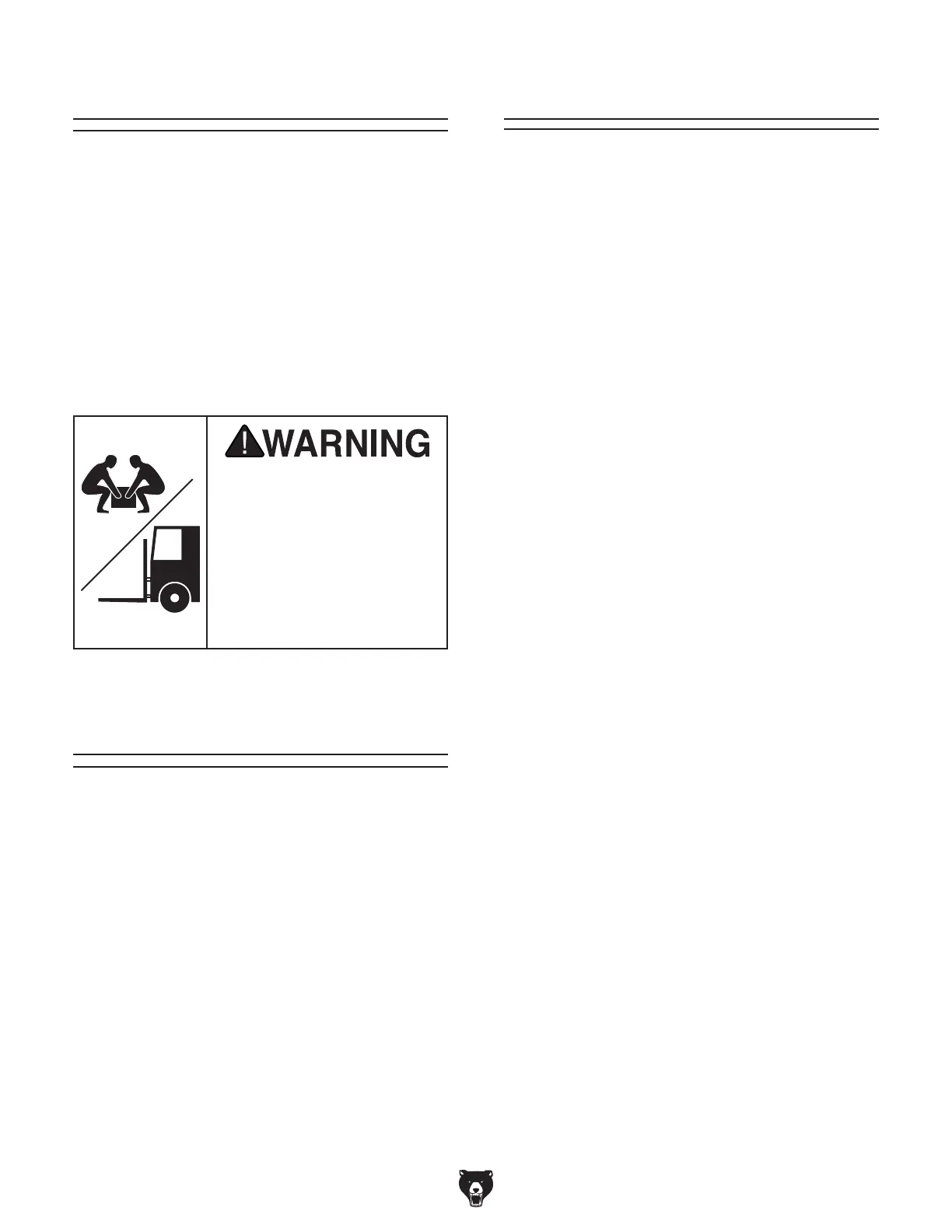

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
