Grizzly G4003 User Manual

Model G4003 (Mfd. Since 6/20)
-43-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
206
205
237
208

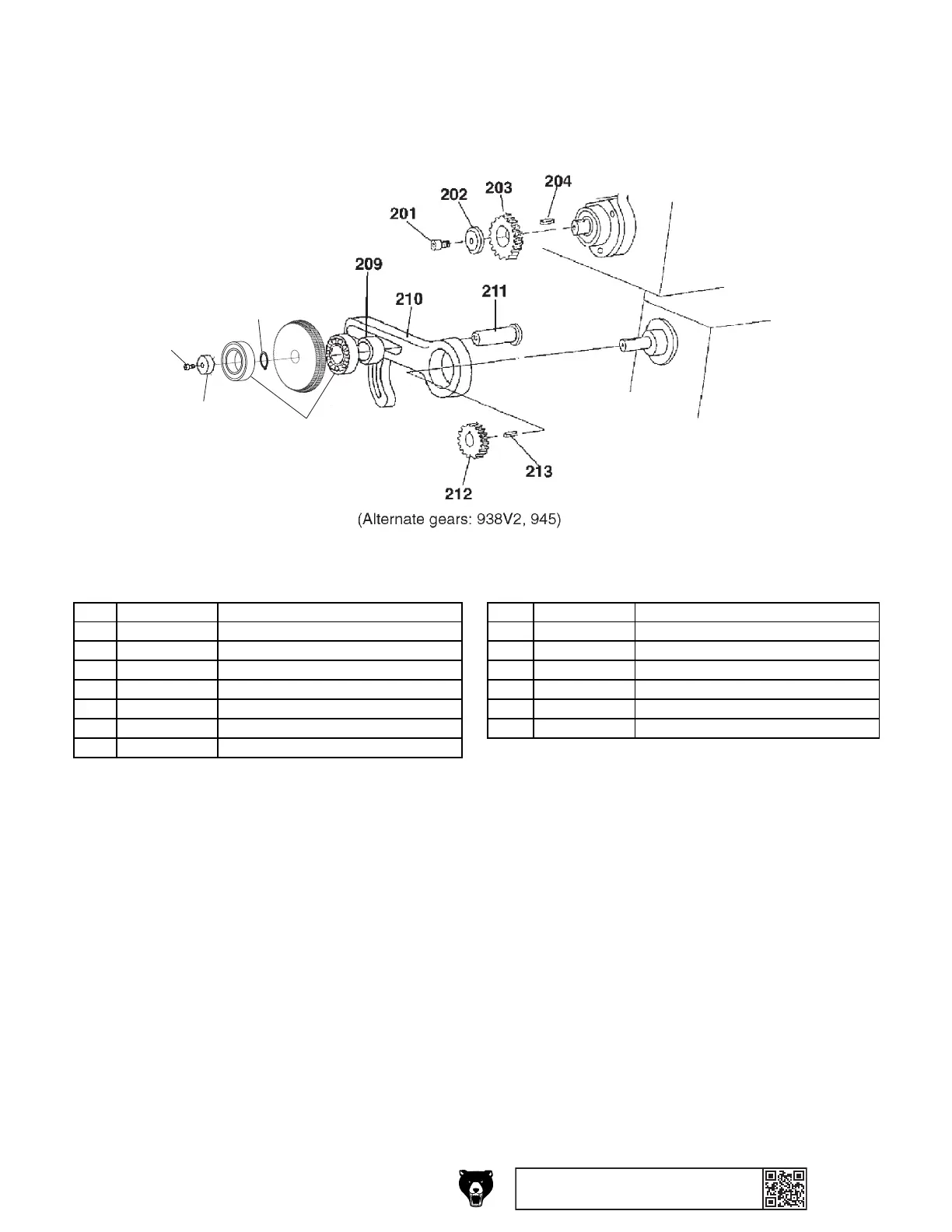

Change Gear Train
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P4003201 CAP SCREW M6-1 X 12 210 P4003210 QUADRANT
202 P4003202 WASHER 211 P4003211 SHAFT
203 P4003203 GEAR 212 P4003212 GEAR 40T
204 P4003204 KEY 5 X 5 X 30 213 P4003213 KEY 5 X 5 X 30
205 P4003205 CAP SCREW M6-1 X 12 237 P4003237 EXT RETAI NI NG RI NG 35MM
206 P4003206 WASHER 938V2 P4003938V2 GEAR 35T V2.08.05
208 P4003208 BALL BEARING 6003-2RS 945 P4003945 GEAR 36T
209 P4003209 SPACER
