REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P4003601 SCREW 613 P4003613 THRUST BEARING 8101
602 P4003602 GIB 614 P4003614 I NDEX RI NG
603 P4003603 COMPOUND SLI DE 615A P4003615A SPANNER NUT
604 P4003604 HEX NUT M8-1. 25 616A P4003616A BRACKET
605 P4003605 COMPOUND T-BOLT 617A P4003617A SHORT HANDLE
606 P4003606 COMPOUND GIB BOLT 617 P4003617 LONG HANDLE W/SCREW
607 P4003607 LEAD SCREW NUT 618A P4003618A SET SCREW M5-.8 X 5
608 P4003608 SET SCREW M6-1 X 8 619 P4003619 CAP SCREW M6-1 X 15
609 P4003609 HEX NUT M6-1 620 P4003620 COMPOUND REST
610 P4003610 COMPOUND REST LEADSCREW 640 P4003640 PIN
611 P4003611 THRUST BEARING 8101 641 P4003641 COMPRESSION SPRING 1 X 5 X 12
612 P4003612 BRACKET

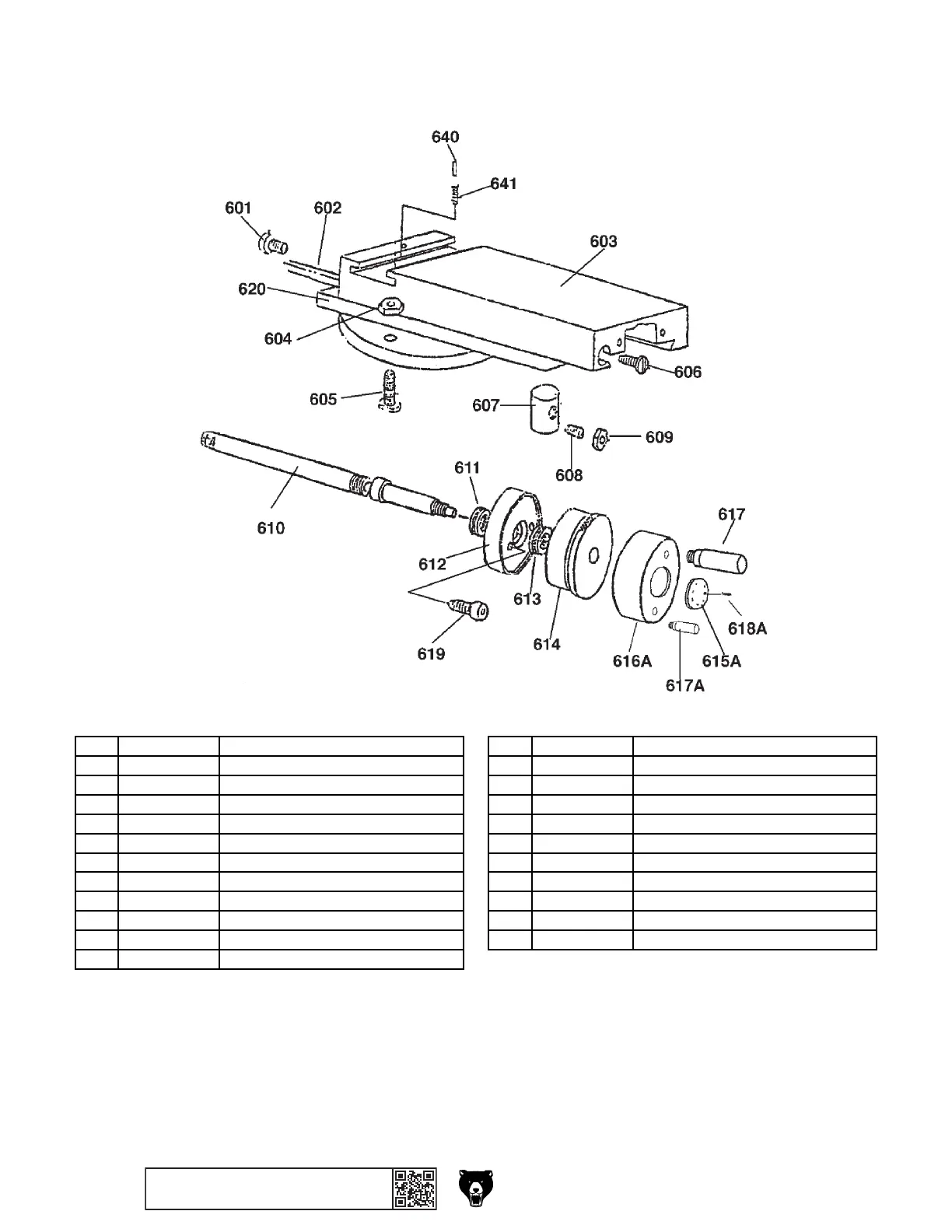

Compound Rest
