Installation
6

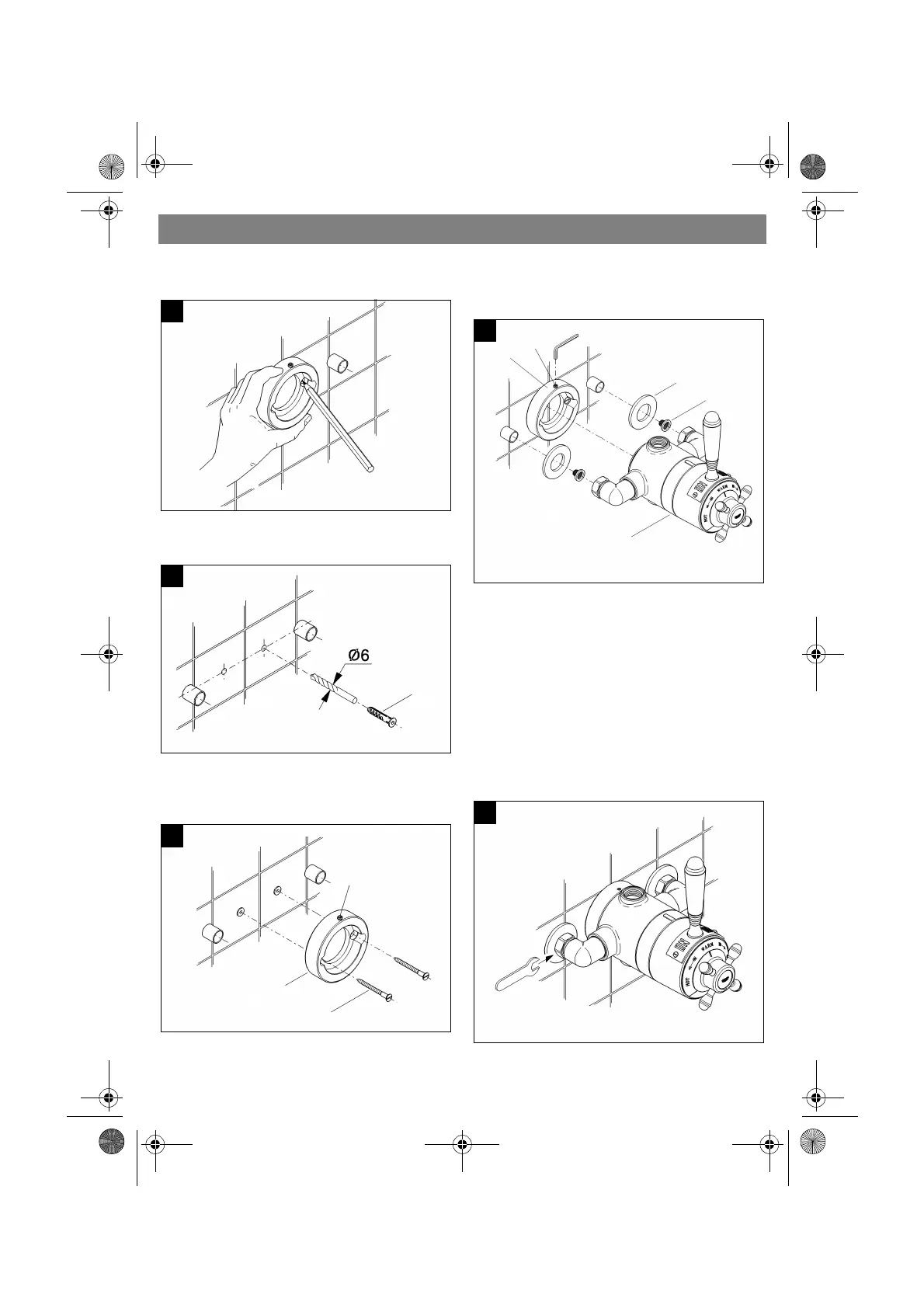

.Mark the holes in the backplate for wall-
plugs, see Fig. [4].
7
.Drill the holes (6mm) for the wallplugs (F)
and fit them into the wall, see Fig. [5].
8
.Fix the backplate (D) with set screw (D1)
on top or bottom to the wall with
screws (G), see Fig. [6].
9.Slide the escutcheons (H) over the
supply pipes and install filters (J), see
Fig. [7].
10.Slide the valve body (E) with elbows an
d
compression nuts loosely over the
supply pipes.
The body must touch the backplate.
If
not, check pipes for length again.
11. Fix the valve body (E) to the back-
plate (D) by tightening set screw (D1).
Do not use excessive force to tighten
the set screw (D1).
12.Tighten the compression nuts (torque
min. 20 Nm), see Fig. [8].
4
5
F
6
G
D
D1
7
E
2
.
5
m
m
D1
H
J
D
8
2
4
m
m
