Grohe Avensys - Shower Connection and Pipework

9
Installation
S
hower Connection
1

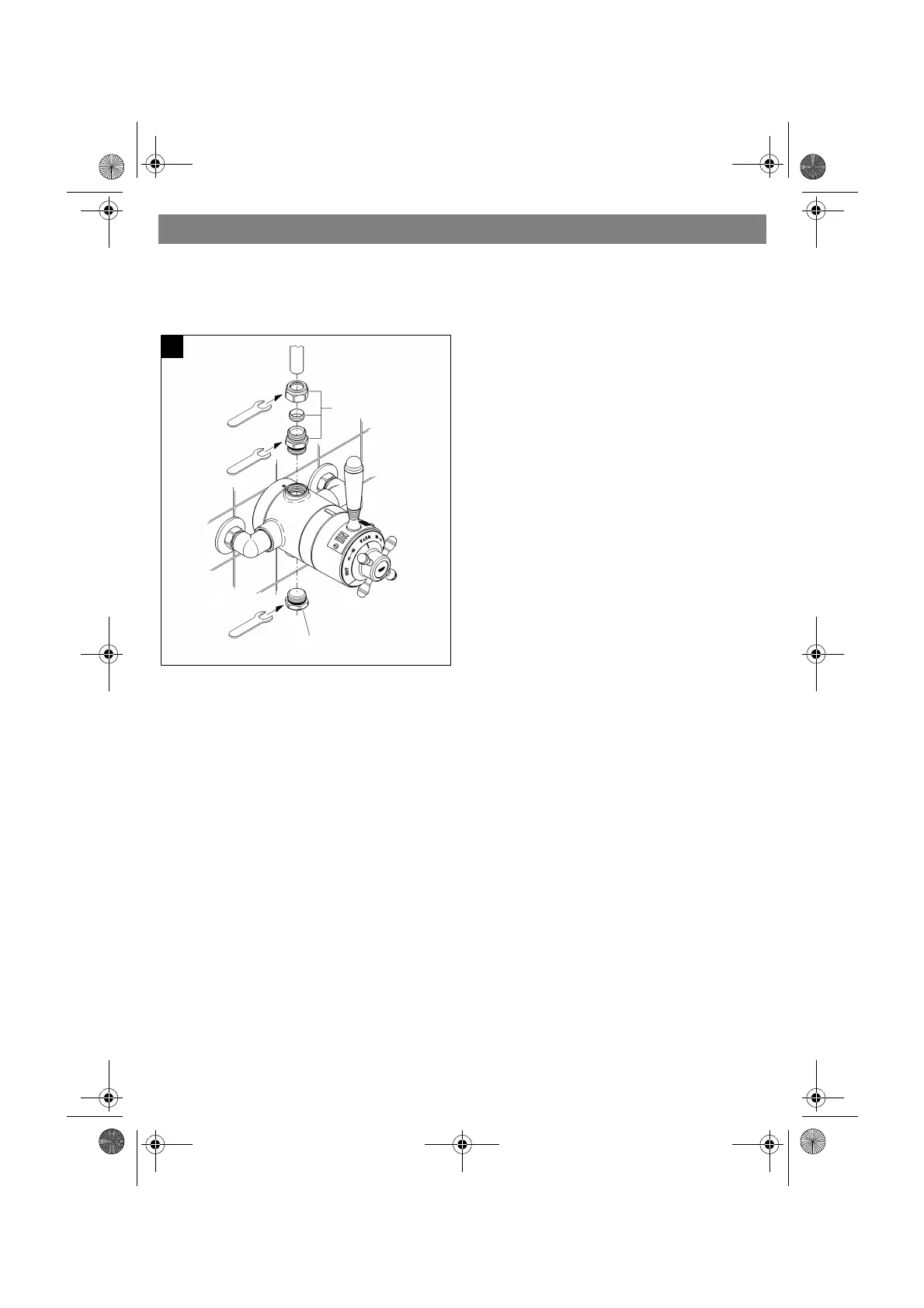

.Close bottom outlet with plug (K),
see Fig. [9].
2
.Thread the outlet nipple (L) with the O-ring
seal into the valve body outlet.
3
.Insert pipe and tighten outlet nipple (L).
Open hot and cold water supply.
Check the pipework and connections to the
thermostat mixing valve for leaks.
For reversed supplies installation the
complete mixing valve must be rotated 180q
.
Therefore shut-off lever, temperature cross
handle, cover ring and stop ring must be
dismounted, rotated 180q and reinstalled.
