Grohe Avensys - Temperature Adjustment Procedure

10
Installation
Adjustment
T
he temperature of the outflowing water is
f
actory set to 43 qC. A temperature adjust-
m
ent is necessary if:
x The maximum water temperature
measured at the outlet varies from
the factory set temperature.
x After any maintenance operation on the
thermostatic cartridge.
F
or temperature adjustment please
p
roceed as follows:
1
.Turn the shut-off lever counter-clockwise
to fully open position and open water flow.
2
.Turn the temperature cross handle
counter-clockwise to maximum hot water
temperature.
3

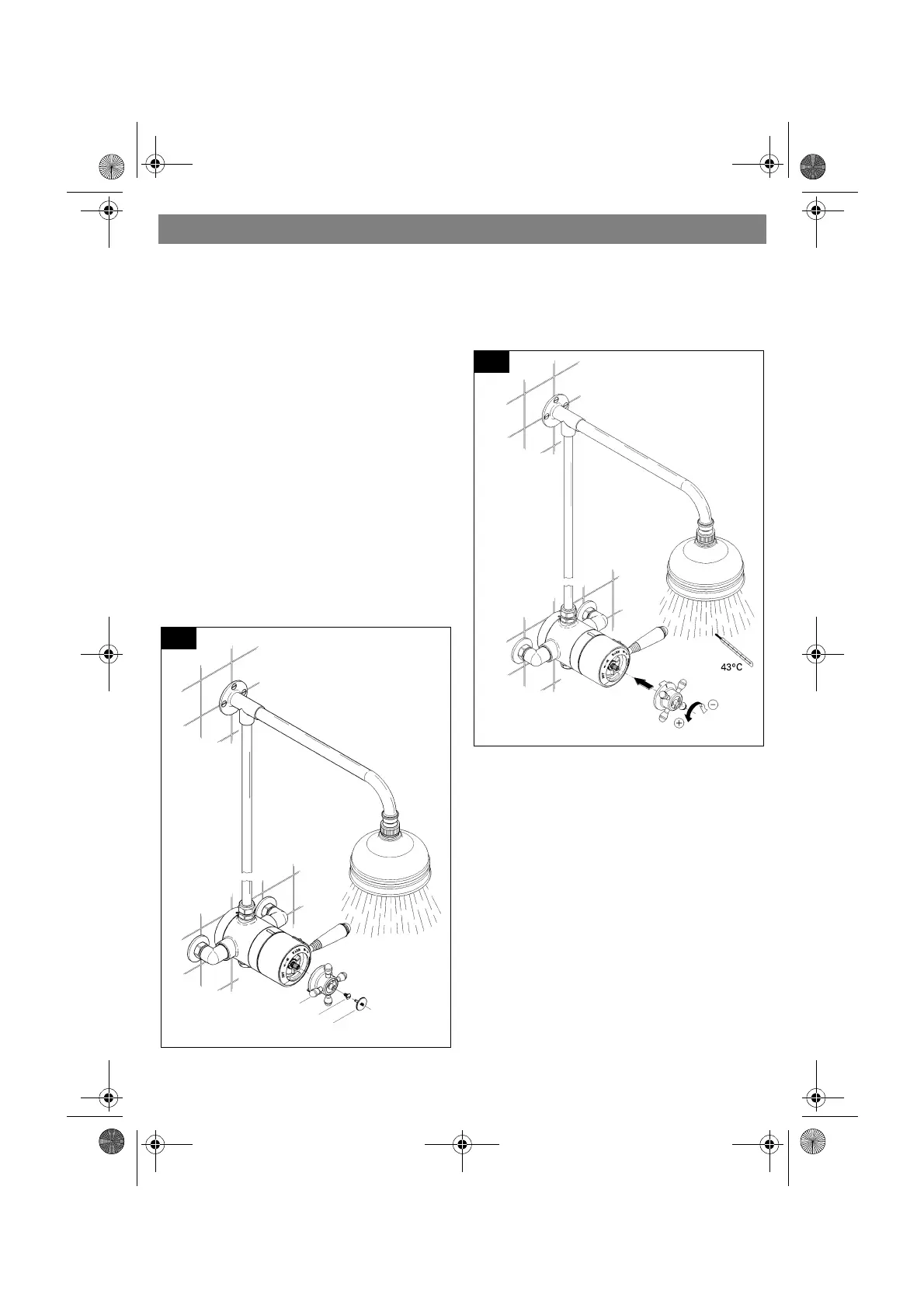

.Lever out cap (M), see fig. [10].
4.Unscrew screw (N).
5.Pull off temperature cross handle (O).
6.Check the temperature of the outflowing
water with a thermometer, see Fig. [11].
7.Push on temperature cross handle and
adjust temperature to 43 qC.
Turn clockwise (to reduce temperature) o
r
counter-clockwise (to increase
temperature).
8.Pull off temperature cross handle (O) and
reinstall in hot water position as describe
d
in Fig. [10] in reversed direction.
10
O
N
M
11
