Growatt MOD 6000TL3-X Manual

Safety 2
2.1 Product description and features
2.1.1 Product description
Growatt series photovoltaic inverters are used to convert the direct current generated by pho-
tovoltaic panels into alternating current, and send it to the grid in a three-phase manner.
Growatt MOD 3-1 5K TL3-X series inverter can be connected to 2 strings (12-15K TL3-X and 7-
11 K TL3-X-AU can be connected to three strings), has 2 maximum power tracking point track-
ers, so suitable for connection 2 Set of arrays of different panels.
Position
Description
A
Solar panel
B
DC circuit breaker
C
Inverter
D
AC circuit breaker
E
Electric energy meter
F
Utility grid

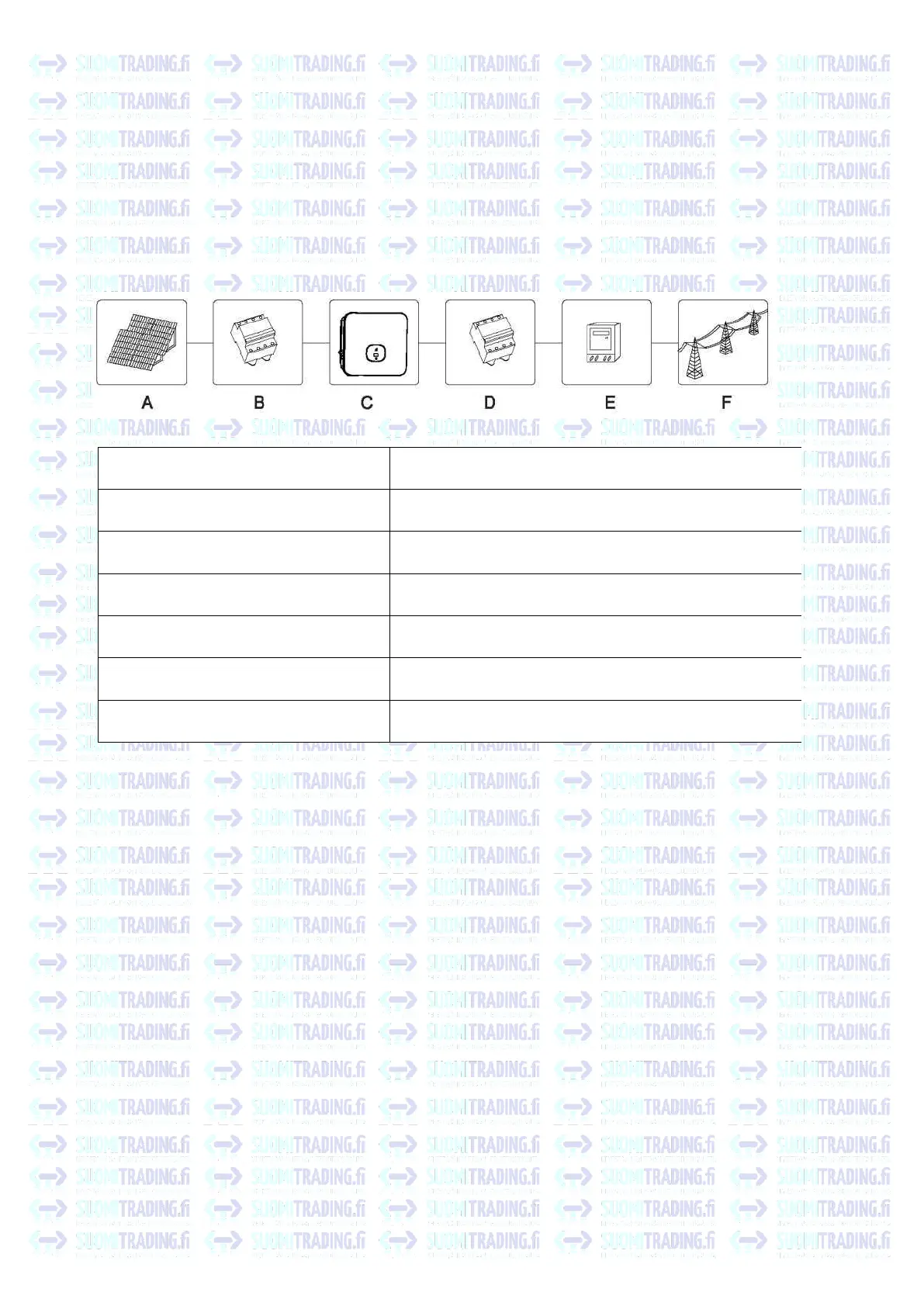

As shown in Fig 1.1 above,a complete photovoltaic grid-connected system includes photovol-
taic modules,photovoltaic inverters,public grids and other components.ln the photovoltaic
module system,the photovoltaic inverter is a key component.
Note:lf the selected photovoltaic module requires positive or negative grounding, please con-
tact Growatt for technical support before installation.
2.1.2 Productfeatures
The characteristics of the inverter are as follows:
> Dual independent maximum power point tracking
> Built-in DC switch
> Compatible with RS485/Wifi/GPRS/4G communication
> 140V-1100V input voltag range
> The maximum efficiency is as high as 98.6%
> OLED+LED/WIFI+APP display
> Integrated with touch button
> Protection grade Ip66
> The weight is only 16kg
> Simple installation
4
Fig 2.1

Growatt MOD 6000TL3-X Specifications

General

Brand	Growatt
Model	MOD 6000TL3-X
Category	Inverter
Language	English
