3.0 Installation
3.1 Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items in the package:
The unit x 1
User manual x 1
USB Communication cable x 1
Current sharing cable (parallel model available)
Parallel communication cable (parallel model available)
Note: The Software CD is no longer provided, if necessary, please download it from the official website
www.ginverter.com
3.2 Preparation

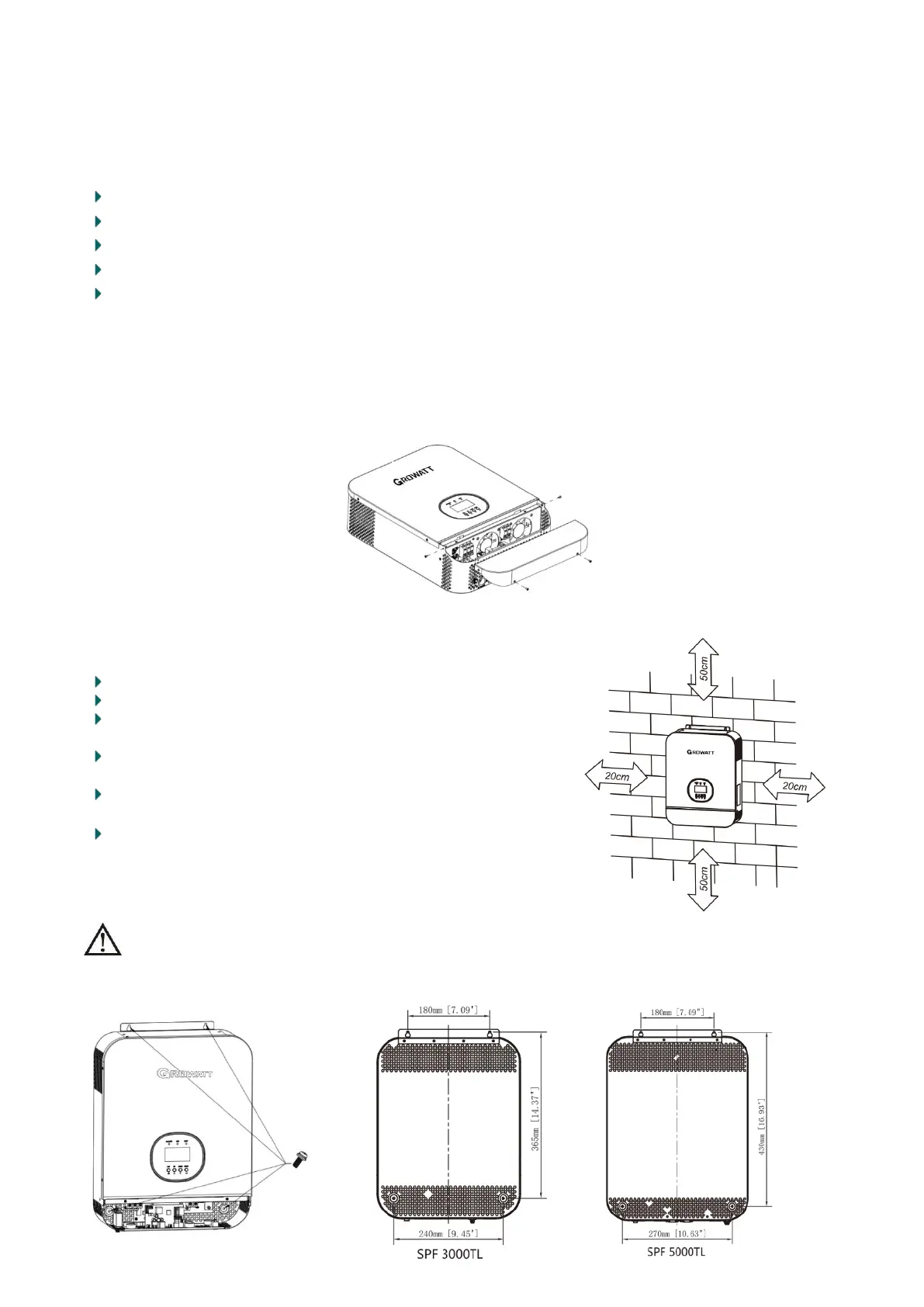

Before connecting all wiring, please take off bottom cover by removing two screws as shown below.
3.3 Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD
display to be read at all times.
The ambient temperature should be between 0°C and 55°C
to ensure optimal operation.
The recommended installation position is to be adhered to
the wall vertically.
Be sure to keep other objects and surfaces as shown in the
right diagram to guarantee sufficient heat dissipation and
to have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR
OTHER NON-COMBUSTIBLE SURFACE NLY.
Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.
