3.4 Battery Connection
3.4.1 Lead acid Battery Connection
User can choose proper capacity lead acid battery with a nominal voltage at 48V for 48V model and at 24V
for 24 model.You need to choose battery type as “AGM(default) or FLD”.
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-
current protector or disconnect device between battery and inverter. It may not be requested to have a
disconnect device in some applications, however, it’s still requested to have over-current protection installed.
Please refer to typical amperage in below table as required fuse or breaker size.

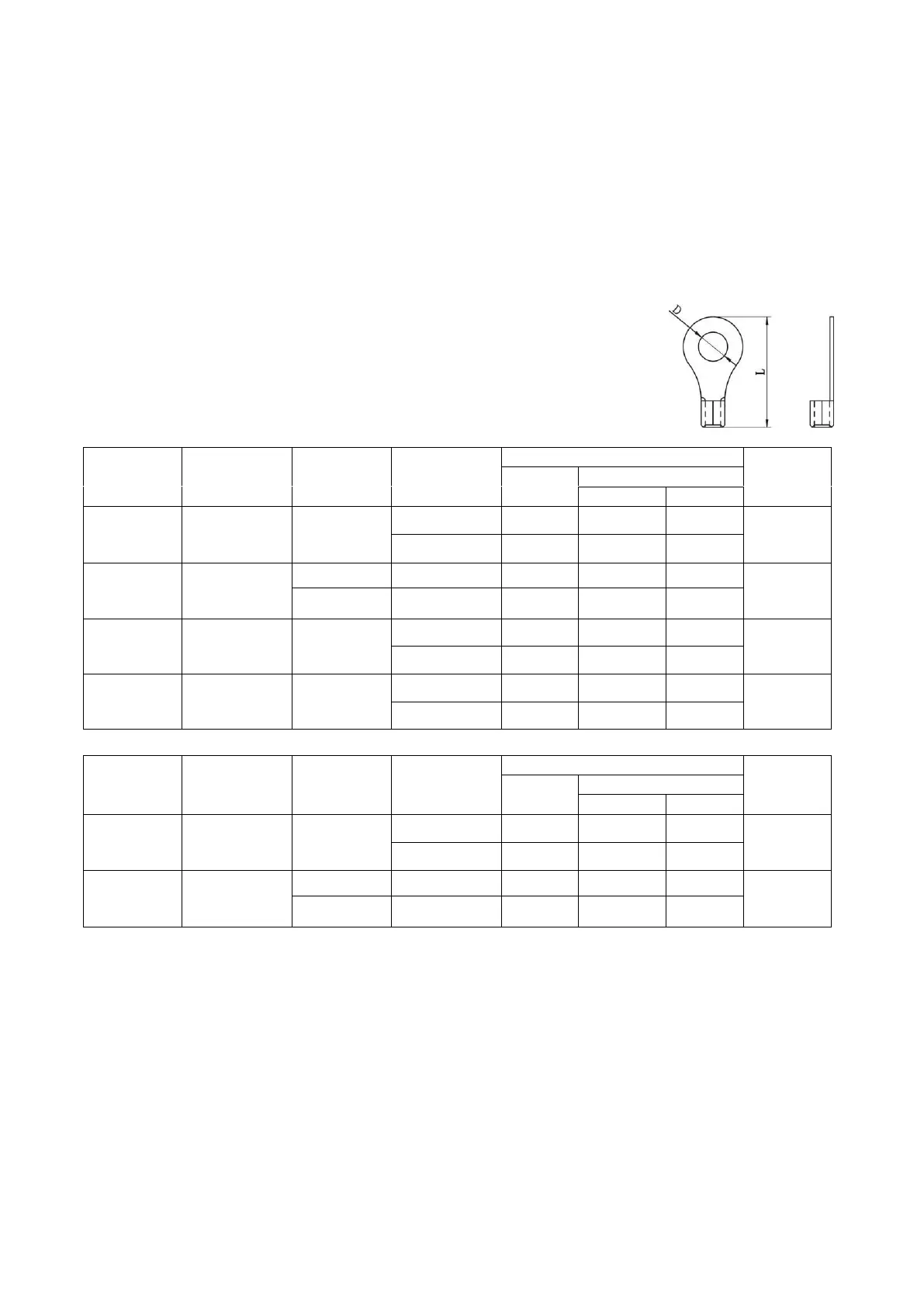

Ring terminal:
WARNING! All wiring must be performed by a qualified person.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.
Recommended battery cable and terminal size:
Note: For lead acid battery, the recommended charge current is 0.2C(Cbattery capacity)
Please follow below steps to implement battery connection:
1.
Assemble battery ring terminal based on recommended battery cable and terminal size.
2.
Connect all battery packs as units requires. It’s suggested to connect at least 100Ah capacity battery for
2KVA/3KVA model and at least 200Ah capacity battery for 4KVA/5KVA model.
3.
Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are
tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly
connected and ring terminals are tightly screwed to the battery terminals.
