Installation

26 | 64

BA_712940

-inter_175_GENO

-Multi Niveau.docx

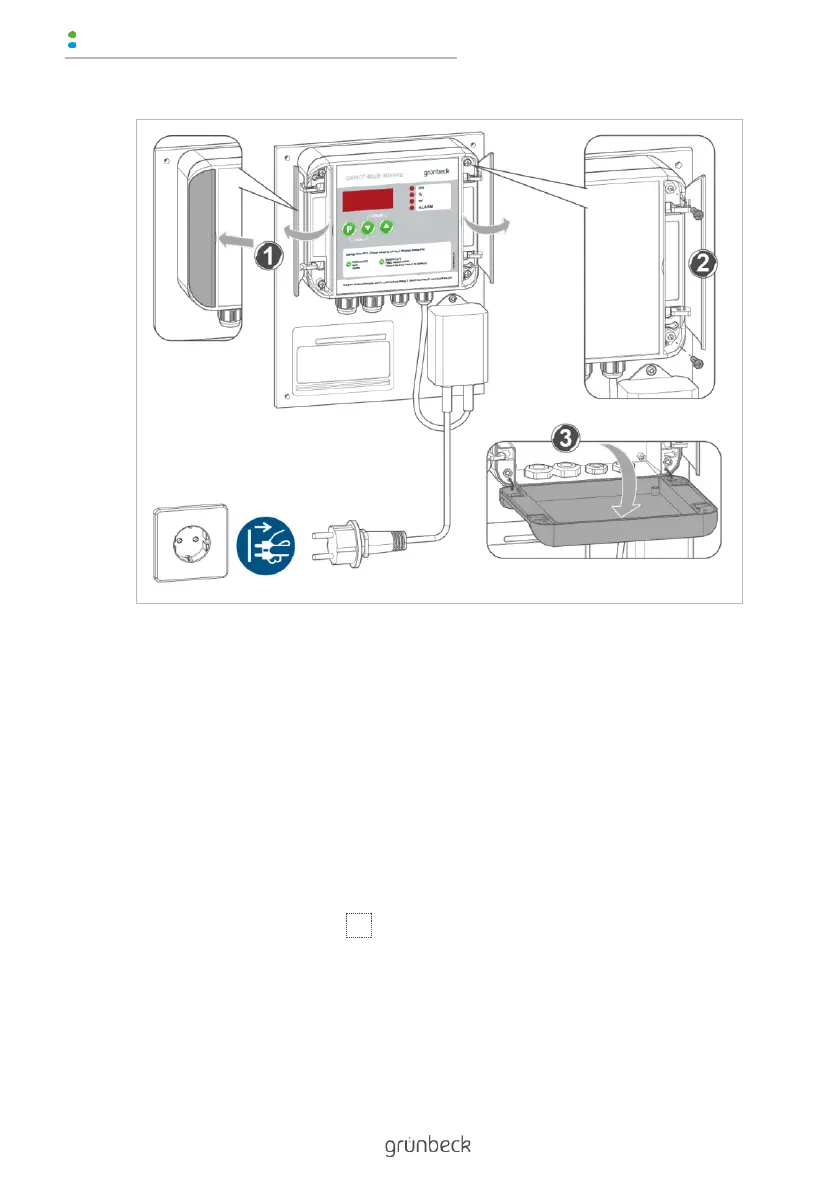

1. Flip open the right and left covers.

2. Unscrew the 4 screws of the housing cover.

3. Flip down the housing cover.

» The connection terminals on the circuit board are accessible.

5.4.1 Terminal diagram

► Using a slotted screw driver (blade max. 3 mm), connect the

level probe (item X1) and the programmable contacts to the

terminal openings.
