Grunbeck GENO-Multi Niveau User Manual

Installation
27 | 64
BA_712940
-inter_175_GENO
-Multi Nive
au.docx

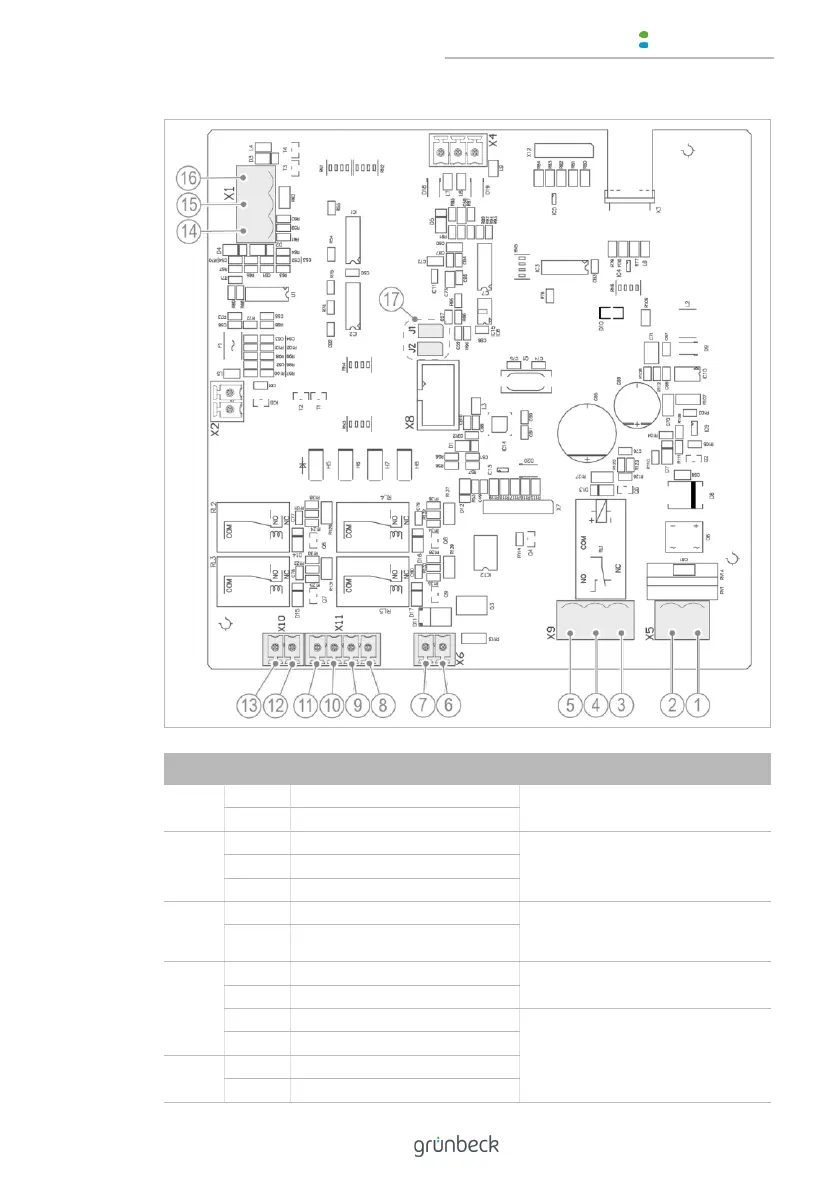

Item
Term.
Function / Colour
Remarks
X5
1
L / black (BK)
Power supply 24 V / 50 Hz
2
N / blue (BU)
X9
3
Normally closed contact NCC
Alarm contact, contact rating
230 V~ / 1 A
4
Normally open contact NOC
5
Common
X6
6
Solenoid valve MV
Solenoid valve Make-up water
feed 24 V~ / max. 14 VA (nor-
mally closed)
7
Solenoid valve MV
X11
8
Level d
Programmable contacts
9
Common d
10
Level c
Programmable contacts a – c
are galvanically isolated from d
11
Level b
X10
12
Level a
13
Common a – c
