13.2 Installation dimensions, GRUNDFOS ALPHA2 L XX-40, XX-50, XX-60

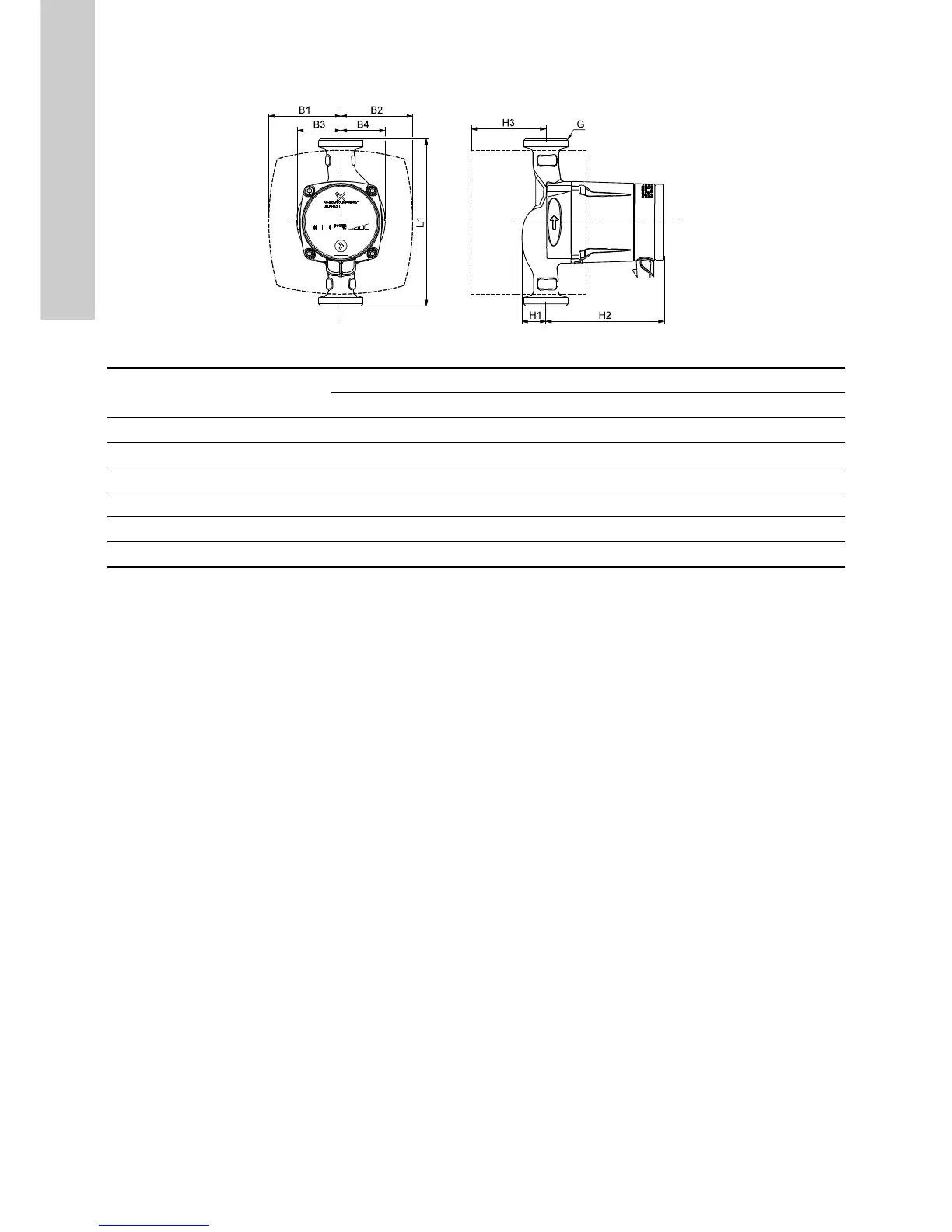

Dimensional sketches and table of dimensions
Fig. 15 Dimensional sketches, ALPHA2 L XX-40, XX-50, XX-60
* For UK only.
TM04 2533 2608
Pump type
Dimensions
L1 B1 B2 B3 B4 H1 H2 H3 G
ALPHA2 L 25-40 180 180 78 78 47 48 26 127 58 1 1/2
ALPHA2 L 32-40 180 180 78 78 47 48 26 127 58 2
ALPHA2 L 15-50 130* 130 78 78 46 49 27 127 58 1 1/2
ALPHA2 L 15-60 130* 130 77 78 46 49 27 129 58 1 1/2
ALPHA2 L 25-60 180 180 78 78 47 48 26 127 58 1 1/2
ALPHA2 L 32-60 180 180 78 77 47 48 26 127 58 2

Grundfos alpha2 l Specifications

General

Pump Type	Circulator Pump
Series	ALPHA2 L
Max Head	6 m
Voltage	230 V
Frequency	50/60 Hz
Temperature Range	2°C to 110°C
Material	Cast iron
Max Operating Pressure	10 bar
Installation Length	180 mm
Enclosure Class	IP42
Insulation Class	F
Weight	2.1 kg
Protection Class	Class I
