Grundfos ALPHA2 User Manual

10
4.4 Insulation of pump housing

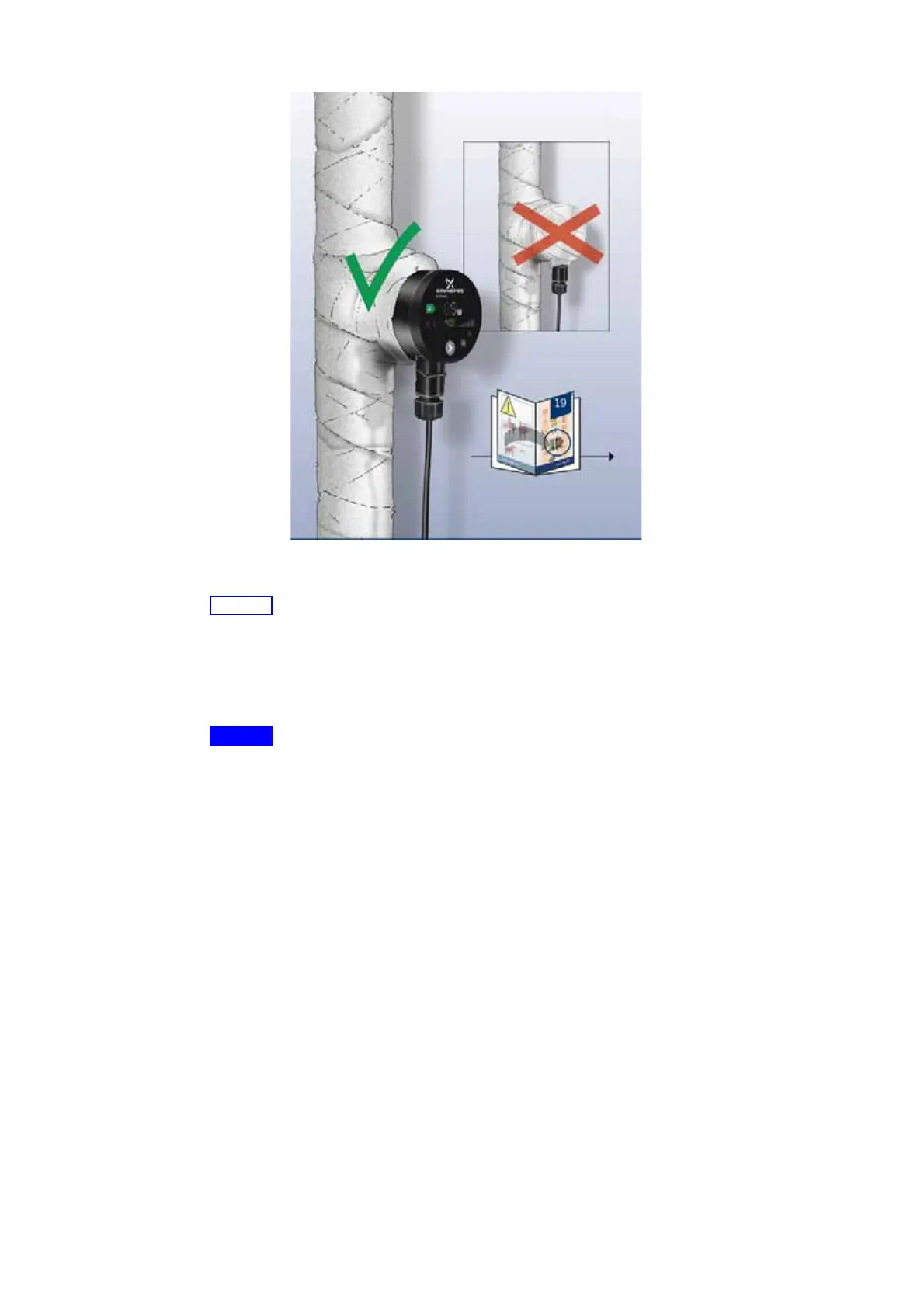

Fig. 5 Insulation of pump housing
The heat loss from the pump and pipework can be reduced by insulating
the pump housing and the pipe. See fig. 5.
As an alternative, polystyrene insulation shells can be ordered from
Grundfos. See 16. Accessories.
TM03 8924 2707
Note
Limit the heat loss from the pump housing and pipework.
Caution
Do not insulate the control box or cover the control panel.

Grundfos ALPHA2 Specifications

General

Max Head	8 m
Voltage	230 V
Frequency	50/60 Hz
Type	Circulator Pump
Max. operating pressure	10 bar
Series	ALPHA2
Connection Type	Threaded
Protection Class	IP42
Liquid Temperature Range	2°C to 110°C
Energy Efficiency Index	≤ 0.23
Connection size	G 1 1/2
EEI	≤ 0.23
