Grundfos ALPHA2 User Manual

9
4.2 Control box positions

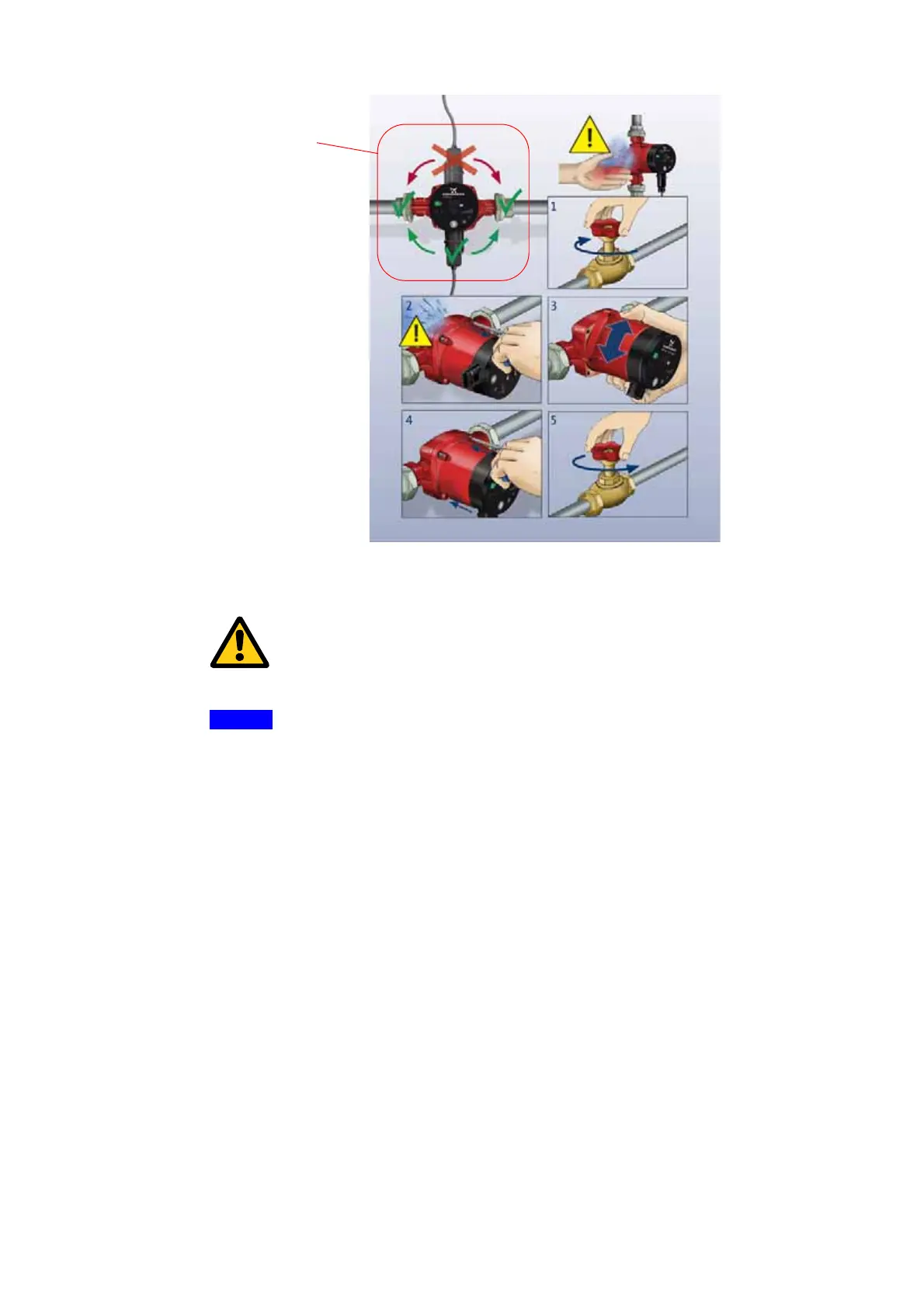

Fig. 4 Control box positions
4.3 Changing the control box position
The control box can be rotated in steps of 90 °.
Possible/permissible positions and the procedure of changing the position
of the control box are illustrated in fig. 4, pos. A.
Procedure:
1. Slacken and remove the four hexagon-socket head screws holding the
pump head with a tee key (M4).
2. Turn the pump head to the desired position.
3. Insert and cross-tighten the screws.
TM03 8923 2707
A
Warning
The pumped liquid may be scalding hot and under high pressure!
Drain the system or close the isolating valves on either side of the
pump before the screws are removed.
Caution
When the position of the control box has been changed, fill the
system with the liquid to be pumped or open the isolating valves.

Grundfos ALPHA2 Specifications

General

Max Head	8 m
Voltage	230 V
Frequency	50/60 Hz
Type	Circulator Pump
Max. operating pressure	10 bar
Series	ALPHA2
Connection Type	Threaded
Protection Class	IP42
Liquid Temperature Range	2°C to 110°C
Energy Efficiency Index	≤ 0.23
Connection size	G 1 1/2
EEI	≤ 0.23
