4.4 Insulation of pump housing

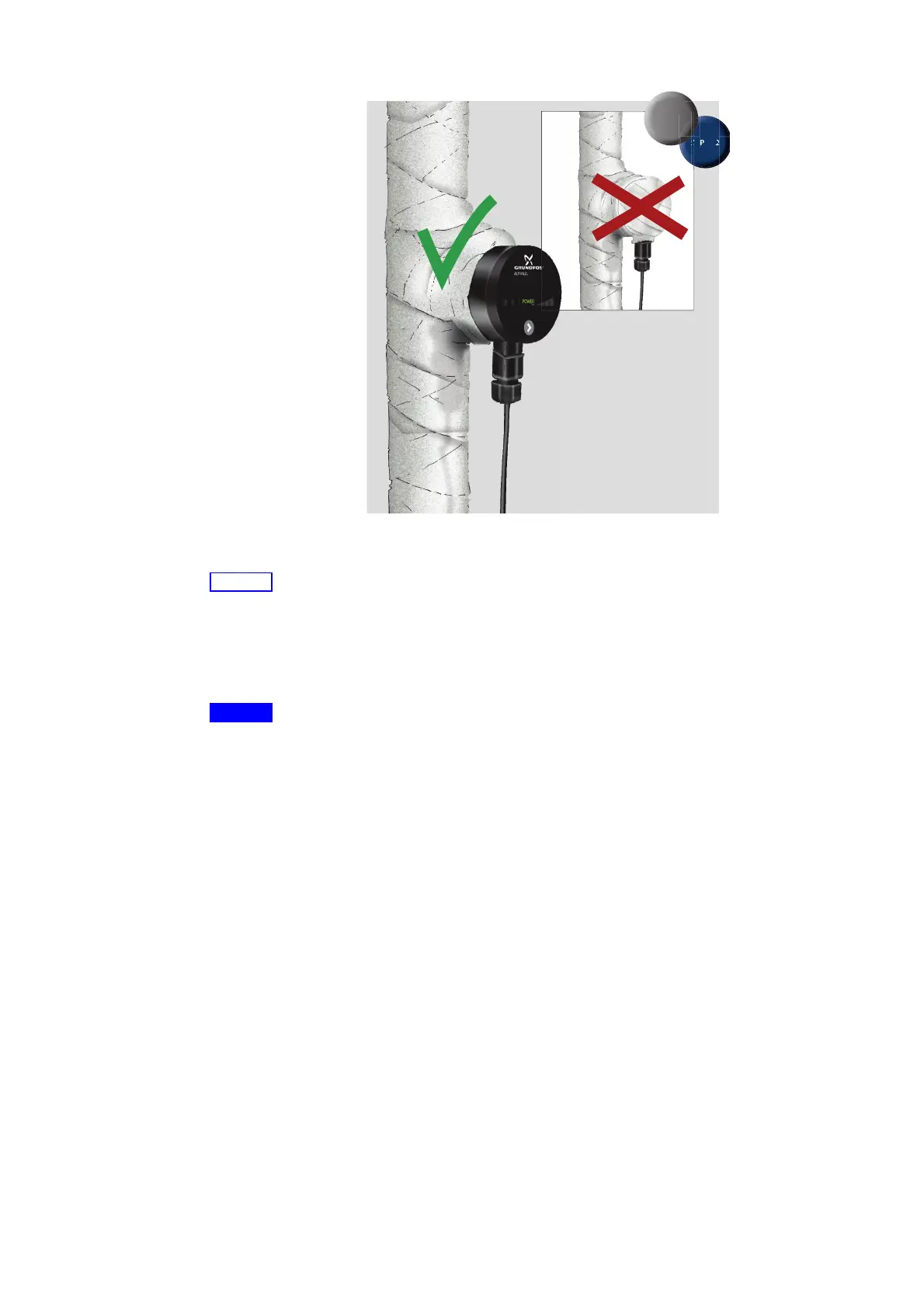

Fig. 5 Insulation of pump housing
The heat loss from the pump and pipework can be reduced by insulating
the pump housing and the pipe. See fig. 5.
As an alternative, polystyrene insulation shells can be ordered from
Grundfos. See 15. Accessories.
TM05 1926 4512
22
2
2
2
P
HA2
P
HA2
A
AL
AL
A
A
A
A
A
A
A
A
ALPHA2 L
Note
Limit the heat loss from the pump housing and pipework.
Caution
Do not insulate the control box or cover the control panel.

Grundfos alpha2l Specifications

General

Voltage	230 V
Protection Class	IP42
Maximum Operating Pressure	10 bar
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast iron
Type	Circulator pump
Frequency	50 Hz
Approvals	CE
Connection	G 1"
Ambient Temperature	Up to 40°C
