7.3 Single-phase connection

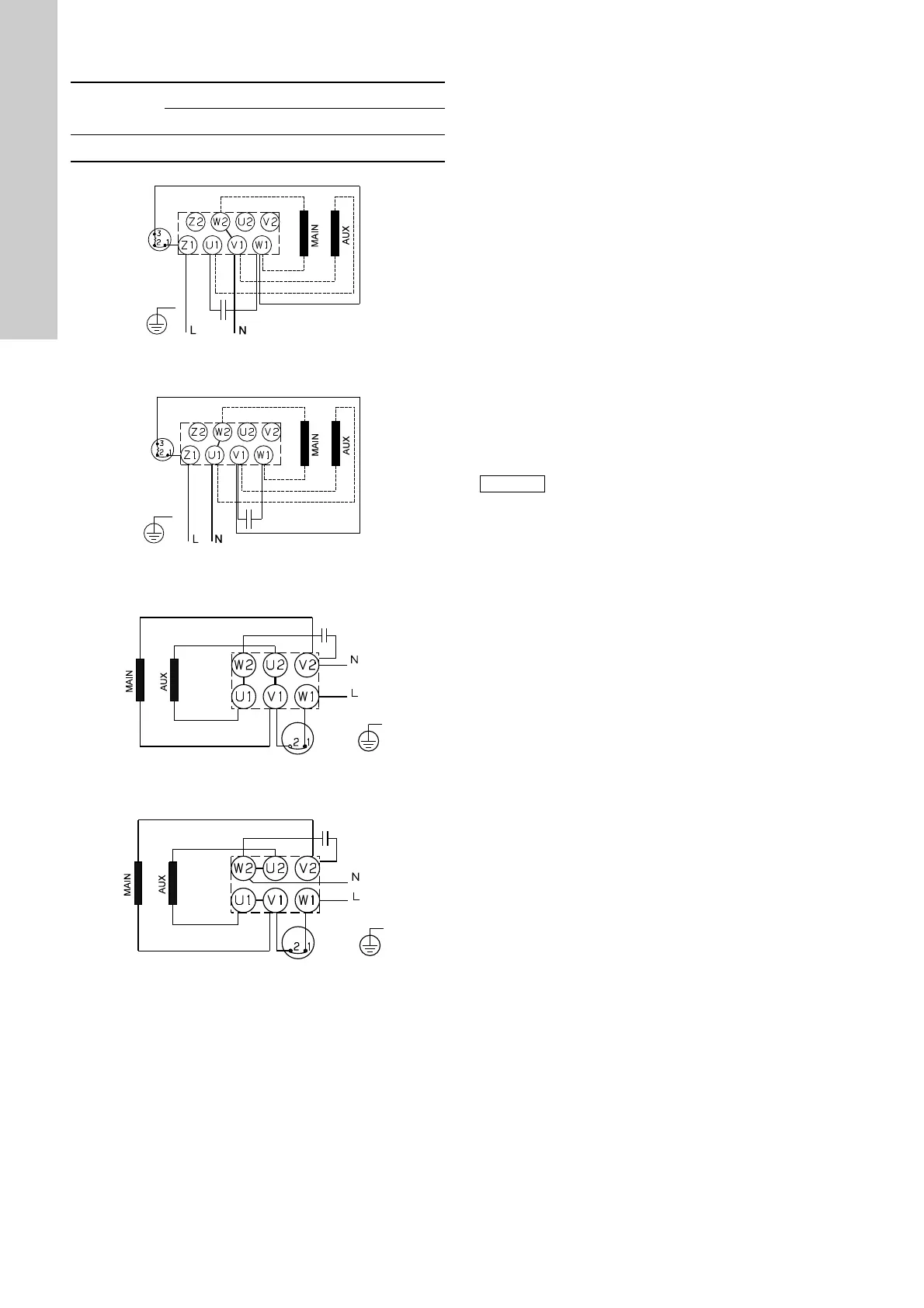

Fig. 17 Connection, "low voltage", 0.37 - 0.75 kW
Fig. 18 Connection, "high voltage", 0.37 - 0.75 kW
Fig. 19 Connection, "low voltage", 1.1 - 2.2 kW
Fig. 20 Connection, "high voltage", 1.1 - 2.2 kW
Single-phase Grundfos motors incorporate a thermal switch and
require no additional motor protection.
7.4 Terminal box positions
The terminal box can be turned to four positions, in 90 ° steps.
Follow this procedure:
1. If necessary, remove the coupling guards. Do not remove the
coupling.
2. Remove the bolts securing the motor to the pump.
3. Turn the motor to the required position.
4. Replace and tighten the bolts.
5. Replace the coupling guards.
Carry out the electrical connection as shown in the diagram
inside the terminal box cover.
7.5 Frequency converter operation
7.5.1 Motors supplied by Grundfos
All three-phase MG motors with phase insulation can be connected
to a frequency converter.
7.5.2 Phase insulation MG 71 and 80
MG motors, frame sizes 71 and 80, do not have phase insulation as
standard. The motors are not suitable for frequency converter
operation as they are not protected against the voltage peaks
caused by the frequency converter operation. Only motors with a
rated voltage equal to or above 460 V have phase insulation.
We recommend you to protect all other motors against voltage
peaks higher than 1200 V by 2000 V/μsec.
The above disturbances, i.e. both increased acoustic noise and
detrimental voltage peaks, can be eliminated by fitting an LC filter
between the frequency converter and the motor.
For further information, please contact the frequency converter or
motor supplier.
7.5.3 Other motor makes than those supplied by Grundfos
Please contact Grundfos or the motor manufacturer.
Mains supply [V]
"Low voltage" "High voltage"
50 Hz 220-230 / 240
TM04 1693 1008TM04 1694 1008TM04 0345 0608TM04 0344 0608
Frequency converter operation of MG motors
without phase insulation will cause damage to
the motor.
