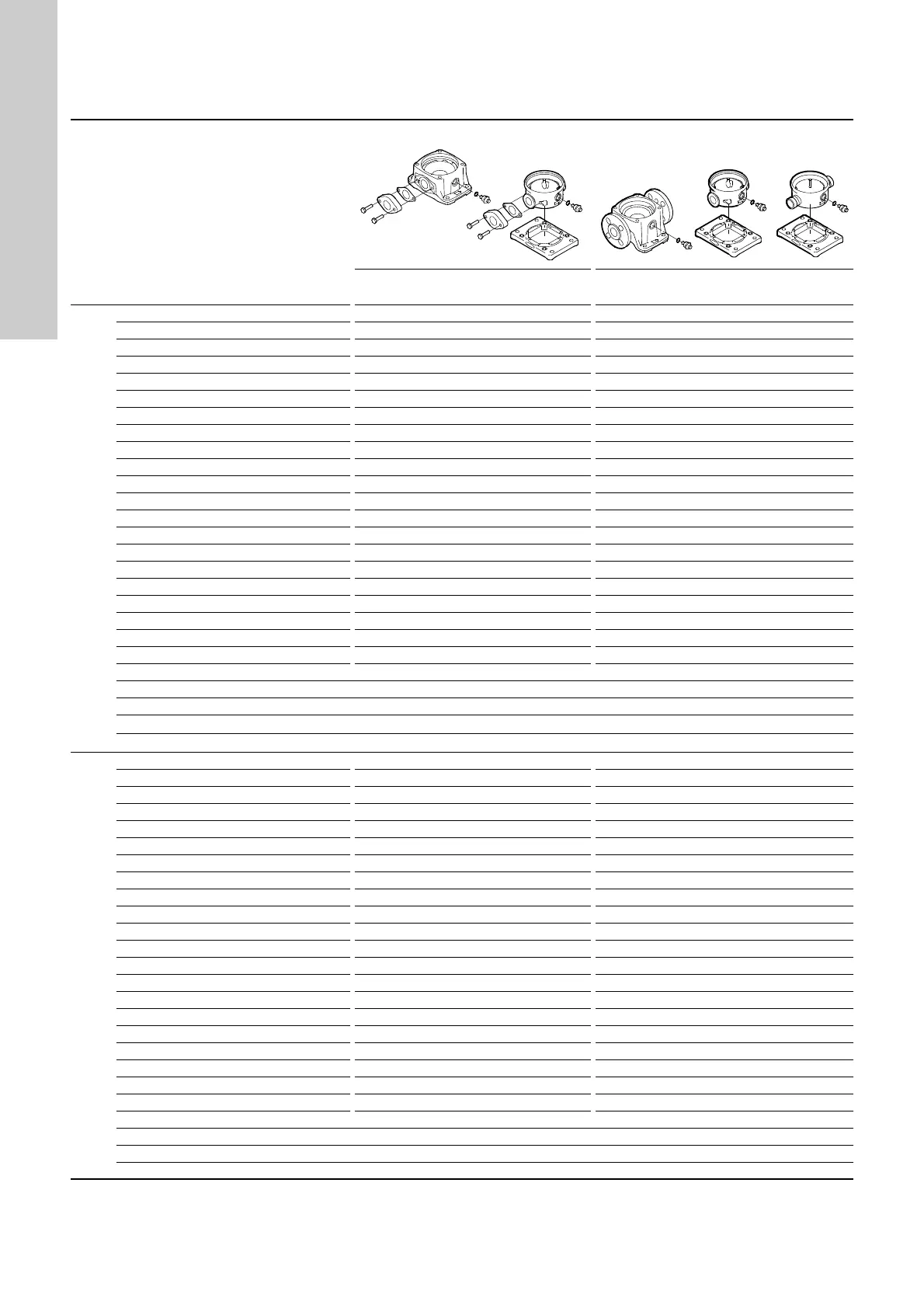

Fig. A
Maximum permissible operating pressure / liquid temperature range
Oval
PJE - CLAMP - CA - UNION
DIN - FGJ
Operating
pressure
Liquid temperature
range
Operating
pressure
Liquid temperature
range
50 Hz
CR, CRI, CRN 1s 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 1 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 3 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 5 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI 10-1 → 10-16 16 bar -20 °C to +120 °C 16 bar -20 °C to +120 °C
CR, CRI 10-17 → 10-22 - - 25 bar -20 °C to +120 °C
CRN 10 - - 25 bar -20 °C to +120 °C
CR, CRI 15-1 → 15-7 10 bar -20 °C to +120 °C - -
CR, CRI 15-1 → 15-10 - - 16 bar -20 °C to +120 °C
CR, CRI 15-12 → 15-17 - - 25 bar -20 °C to +120 °C
CRN 15 - - 25 bar -20 °C to +120 °C
CR, CRI 20-1 → 20-7 10 bar -20 °C to +120 °C - -
CR, CRI 20-1 → 20-10 - - 16 bar -20 °C to +120 °C
CR, CRI 20-12 → 20-17 - - 25 bar -20 °C to +120 °C
CRN 20 - - 25 bar -20 °C to +120 °C
CR, CRN 32-1-1 → 32-7 - - 16 bar -30 °C to +120 °C
CR, CRN 32-8-2 → 32-14 - - 30 bar -30 °C to +120 °C
CR, CRN 45-1-1 → 45-5 - - 16 bar -30 °C to +120 °C
CR, CRN 45-6-2 → 45-11 - - 30 bar -30 °C to +120 °C
CR, CRN 45-12-2 → 45-13-2 - - 33 bar -30 °C to +120 °C
CR, CRN 64-1-1 → 64-5 - - 16 bar -30 °C to +120 °C
CR, CRN 64-6-2 → 64-8-1 - - 30 bar -30 °C to +120 °C
CR, CRN 90-1-1 → 90-4 - - 16 bar -30 °C to +120 °C
CR, CRN 90-5-2 → 90-6 - - 30 bar -30 °C to +120 °C
CR, CRN 120
--30 bar
-30 °C to +120 °C
CR, CRN 150
--30 bar
-30 °C to +120 °C
60 Hz
CR, CRI, CRN 1s 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 1 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 3 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI, CRN 5 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI 10-1 → 10-10 16 bar -20 °C to +120 °C 16 bar -20 °C to +120 °C
CR, CRI 10-12 → 10-17 - - 25 bar -20 °C to +120 °C
CRN 10 16 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI 15-1 → 15-5 10 bar -20 °C to +120 °C - -
CR, CRI 15-1 → 15-8 - - 16 bar -20 °C to +120 °C
CR, CRI 15-9 → 15-12 - - 25 bar -20 °C to +120 °C
CRN 15 10 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRI 20-1 → 20-5 10 bar -20 °C to +120 °C - -
CR, CRI 20-1 → 20-7 - - 16 bar -20 °C to +120 °C
CR, CRI 20-8 → 20-10 - - 25 bar -20 °C to +120 °C
CRN 20 10 bar -20 °C to +120 °C 25 bar -20 °C to +120 °C
CR, CRN 32-1-1 → 32-5 - - 16 bar -30 °C to +120 °C
CR, CRN 32-6-2 → 32-10-2 - - 30 bar -30 °C to +120 °C
CR, CRN 45-1-1 → 45-4 - - 16 bar -30 °C to +120 °C
CR, CRN 45-5-2 → 45-7 - - 30 bar -30 °C to +120 °C
CR, CRN 64-1-1 → 64-3 - - 16 bar -30 °C to +120 °C
CR, CRN 64-4-2 → 64-5-2 - - 30 bar -30 °C to +120 °C
CR, CRN 90-1-1 → 90-3 - - 16 bar -30 °C to +120 °C
CR, CRN 90-4-2 - - 30 bar -30 °C to +120 °C
CR, CRN 120 - - 30 bar -30 °C to +120 °C
CR, CRN 150 - - 30 bar -30 °C to +120 °C
