Grundfos CRIE Installation And Operating Instrictions

13
English (US)

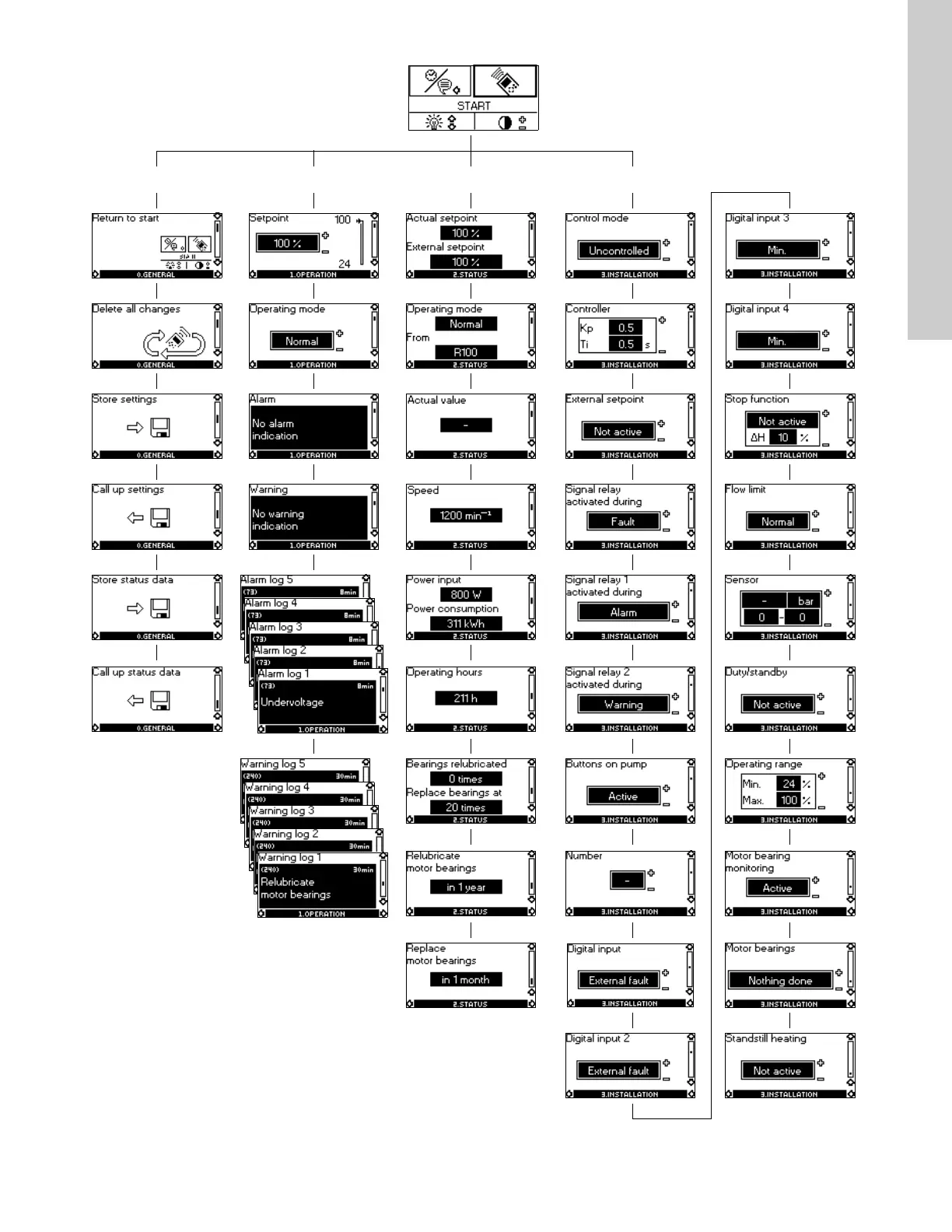

Fig. 26 Menu overview
0. GENERAL 1. OPERATION 2. STATUS 3. INSTALLATION
10.1.1 10.2.1 10.3.1 10.3.7
10.1.2 10.2.2 10.3.2 10.3.7
10.1.3 10.2.3 10.3.3 10.3.8
10.1.3 (1) 10.2.4 10.3.4 (3) 10.3.9 (1)
10.1.4 10.2.5 10.3.4 - 1 (2) 10.3.10
10.2.6 10.3.4 - 2 (2) 10.3.11 (1)
10.1.4 (1) 10.2.7 (2) 10.3.5 10.3.12
10.2.8 (2) 10.3.6 10.3.13 (1)
10.2.9 (1) 10.3.7 10.3.14 (1)
10.3.7 10.3.15 (1)
(1) This display only appears for three-phase pumps, 1.5 - 30 hp.
(2) This display only appears for three-phase pumps, 15 - 30 hp.
(3) This display only appears for three-phase pumps, 1.5 - 10 hp.

Grundfos CRIE Specifications

General

Frequency	50/60 Hz
Material	Stainless Steel
Flow Rate	Up to 120 m³/h
Pumped Liquid	Clean, non-aggressive liquids
Voltage	220-240 V / 380-415 V
