10.4 Typical display settings for constant-pressure E-pumps

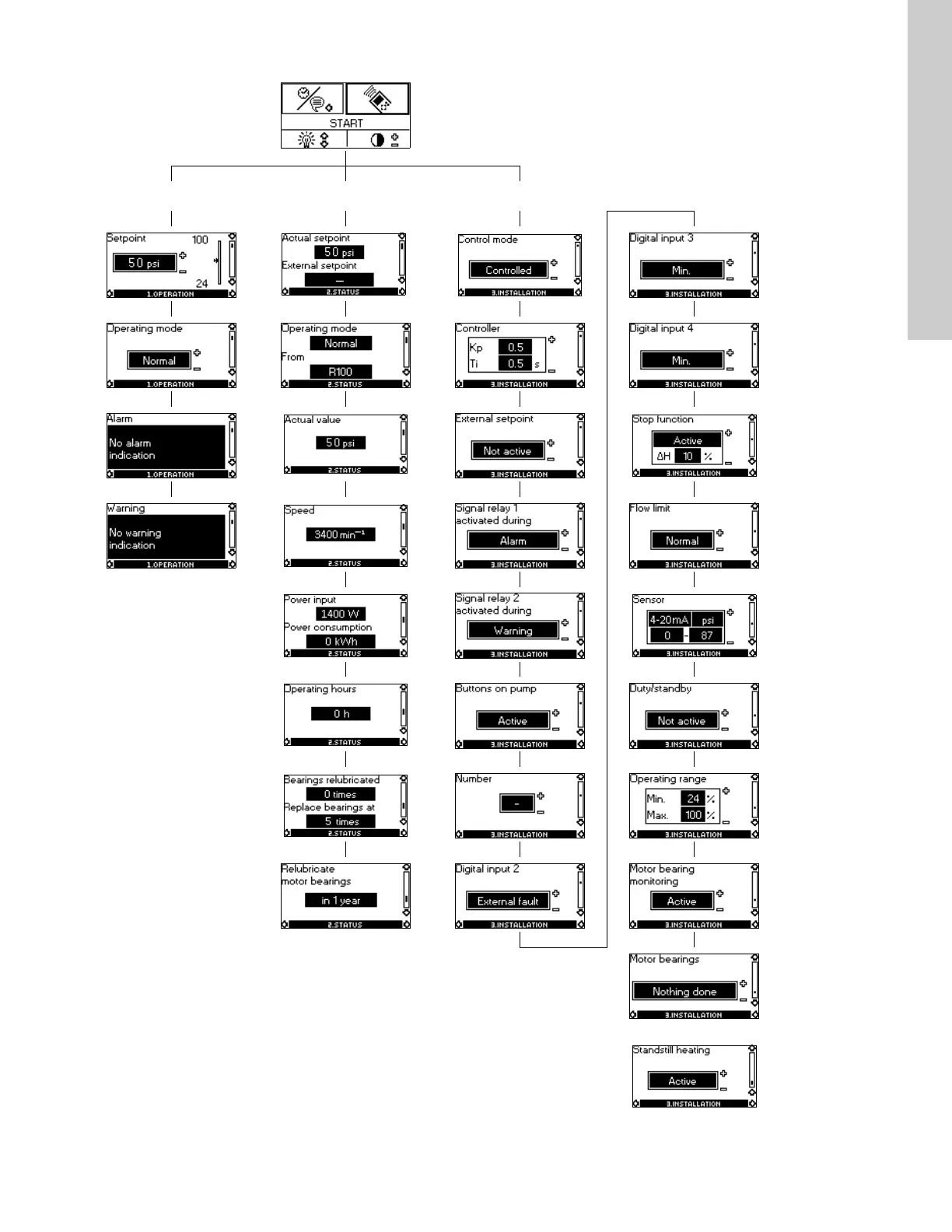

Fig. 34 Menu overview
1. OPERATION 2. STATUS 3. INSTALLATION
10.1.1 10.2.1 10.3.1 10.3.7
10.1.2 10.2.2 10.3.2 10.3.7
10.1.3 10.2.3 10.3.3 10.3.8
10.1.3 (1) 10.2.4 10.3.4 - 1 (2) 10.3.9 (1)
10.2.5 10.3.4 - 2 (2) 10.3.10
10.2.6 10.3.5 10.3.11 (1)
10.2.7 (2) 10.3.6 10.3.12
10.2.8 (2) 10.3.7 10.3.13 (1)
10.3.14 (1)
10.3.15 (1)
(1) This display only appears for three-phase pumps, 1.5 - 30 hp.
(2) This display only appears for three-phase pumps, 15 - 30 hp.
(3) This display only appears for three-phase pumps, 1.5 - 10 hp.
