2.3 Electrical connection
2.3.1 Connecting the power supply
1. Check that the supply voltage corresponds with the needed 24 VDC and ensure that the polarity is connected correctly according to the
label on the product itself.
2. Connect the power cables and pump cables according to the relevant electrical diagram.
TM070570

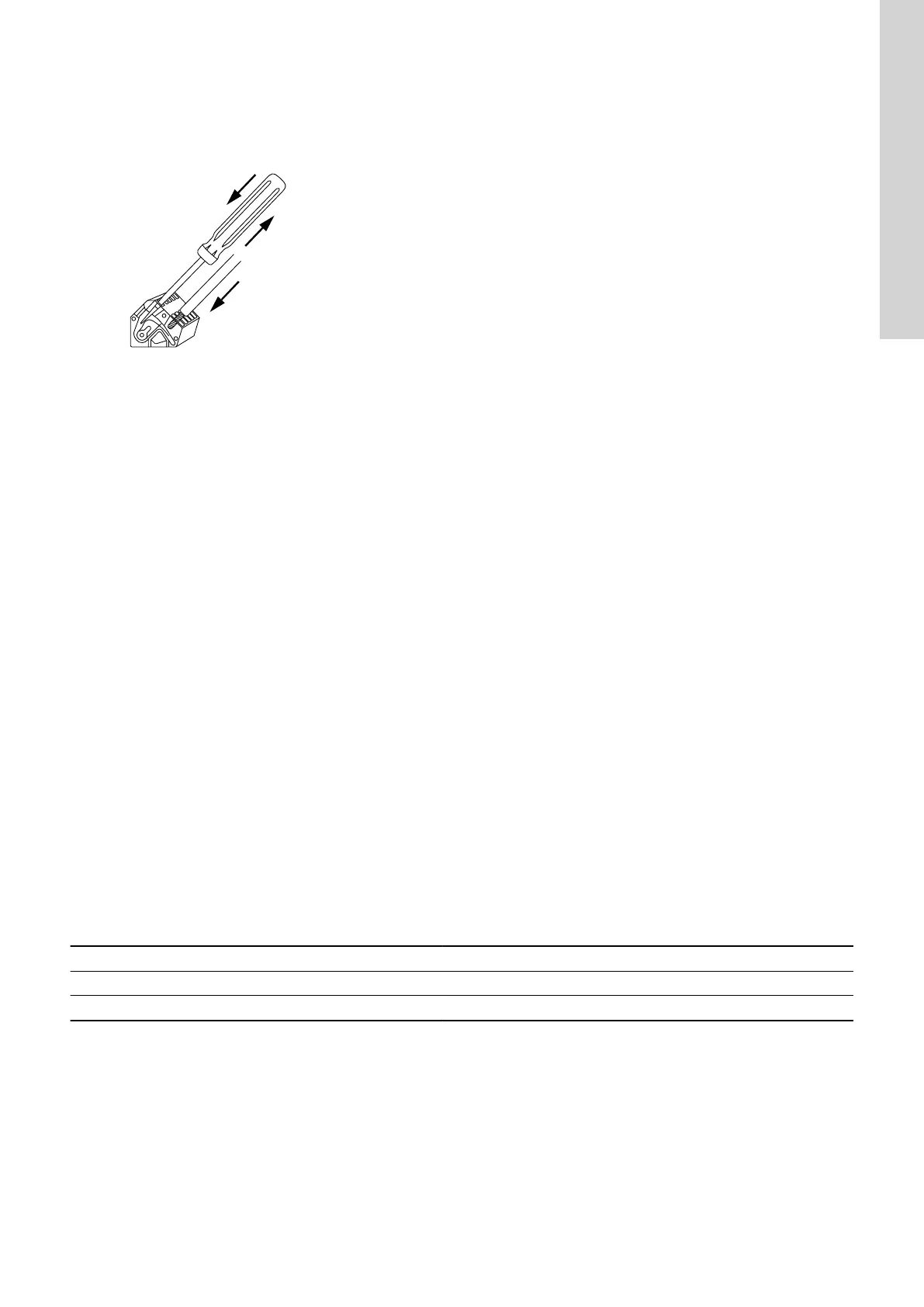

Connecting a wire to a terminal with spring clamps
3. Starting up the product
3.1 Connecting to Grundfos GO Remote
1. Open Grundfos GO Remote on your device. Make sure that Bluetooth is enabled.
Your device must be within reach of the product to establish Bluetooth connection.
2. Press the Bluetooth CONNECT button on Grundfos GO Remote.
3. Press the connect button on the operating panel. The blue LED above the connect button is flashing blue until your device is connected.
Grundfos GO Remote is now loading the data for the product.
Related information
3.4 How to enable Bluetooth on the operating panel
3.5 How to disable Bluetooth on the operating panel
3.2 Startup wizard on Grundfos GO Remote
The product is designed for Bluetooth communication with Grundfos GO Remote.
Once you have connected your product to Grundfos GO Remote, a startup wizard appears. Follow the instructions to make your settings.
Grundfos GO Remote enables you to set functions and gives you access to status overviews, technical product information and current
operating parameters.
Related information
8.2 Replacing the control unit
3.3 Startup wizard on the operating panel
The first time the control unit is switched on, a startup wizard will guide you through the basic settings. You can select the sensor type and
sensor levels. For some products, you can also set the nominal pump current and number of phases.
If you have an analog sensor, select S-1 and set the height of the different levels, from dry running to high level.
If you have a digital sensor, select S-2 and enable or disable the dry-running level, the start level for pump 2, if available and the high level.
To change settings, use the Up and Down buttons on the operating panel.
Use the OK button to confirm each setting and navigate to the next setting.
For filling applications, you must use Grundfos GO Remote.
Units can only be changed with Grundfos GO Remote.
Designation
Description
S-1 Analog sensor
S-2 Digital sensor
Related information
6.22 Starting the startup wizard with the operating panel
3.4 How to enable Bluetooth on the operating panel
If the Bluetooth signal on the operating panel has been disabled for some reason, you are not able to connect with Grundfos GO Remote. You
must enable Bluetooth first.
1. Press and hold the connect button on the operating panel for 15 seconds. Wait for the blue LED to light up.
2. Press the Bluetooth CONNECT button on Grundfos GO Remote.
3. Press the connect button on the operating panel. The blue LED above the connect button is flashing blue until your device is connected
Grundfos GO Remote is now loading the data for the product.
11
English (GB)
