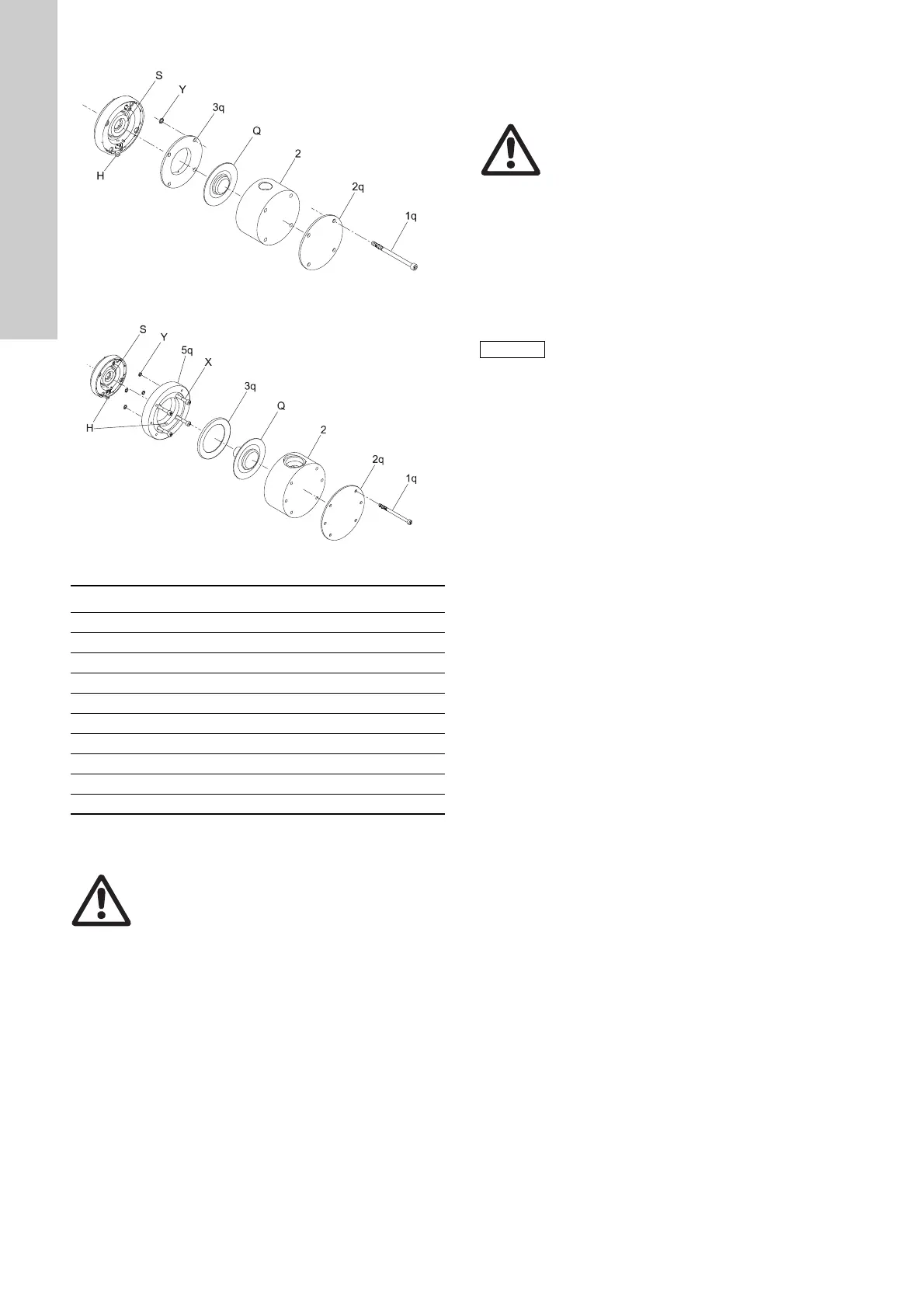

Fig. 56 Replacing the diaphragm for DDI 60-10
Fig. 57 Replacing the diaphragm for DDI 150-4
10.6.4 Dosing liquid in the pump housing
If dosing liquid has entered the pump housing:
• Send the pump to Grundfos for repair following the instructions
given in section
10.7 Repair.
• If a repair isn’t economically reasonable, dispose of the pump
observing the information in section
12. Disposal.
10.7 Repair
After consulting Grundfos, please send the pump, together with
the safety declaration completed by a specialist, to Grundfos.
The safety declaration can be found at the end of these
instructions. It must be copied, completed and attached to the
pump.
If the above requirements are not met, Grundfos may refuse to
accept delivery of the pump. The shipping costs will be charged
to the sender.
TM06 1274 2014TM06 1275 2014
Pos. Components
Q Diaphragm (package)
2 Dosing head
1q Dosing head screws
2q Dosing head disk
3q Intermediate ring
5q Intermediate flange
S Safety diaphragm
H Drain opening
X Intermediate flange screws
Y O-rings
Warning
Danger of explosion!
Immediately separate the pump from the power
supply!
Make sure that the pump cannot be put back into
operation by accident!
Warning
The pump housing must only be opened by
personnel authorised by Grundfos!
Repair must only be carried out by authorised
and qualified personnel!
Switch off the pump and disconnect it from the
voltage supply before carrying out maintenance
work and repair!
The pump must be cleaned prior to dispatch!
If dosing liquid has possibly entered the pump
housing, state that explicitly in the safety
declaration! Observe section 10.5 Diaphragm
breakage.
