19
V6.0
DMX model 226 en
4.2 Transport and Storage
● Handle with care, do not throw!
❏ Dry and cool storage place.
❏ Take heed of upright position of the dosing pump when storing it, so that
gear grease can not leak out.
CAUTION Observe permissible storing temperature!
4.3 Mounting
● Mount the pump horizontally with 4 screws M8 on the tank or on a console.
● Replace the screw plugs by the attached venting screws.
4.4 Connecting the Suction and Pressure Lines
!
WARNING All lines must be stress-free!
Only use the prescribed line types!

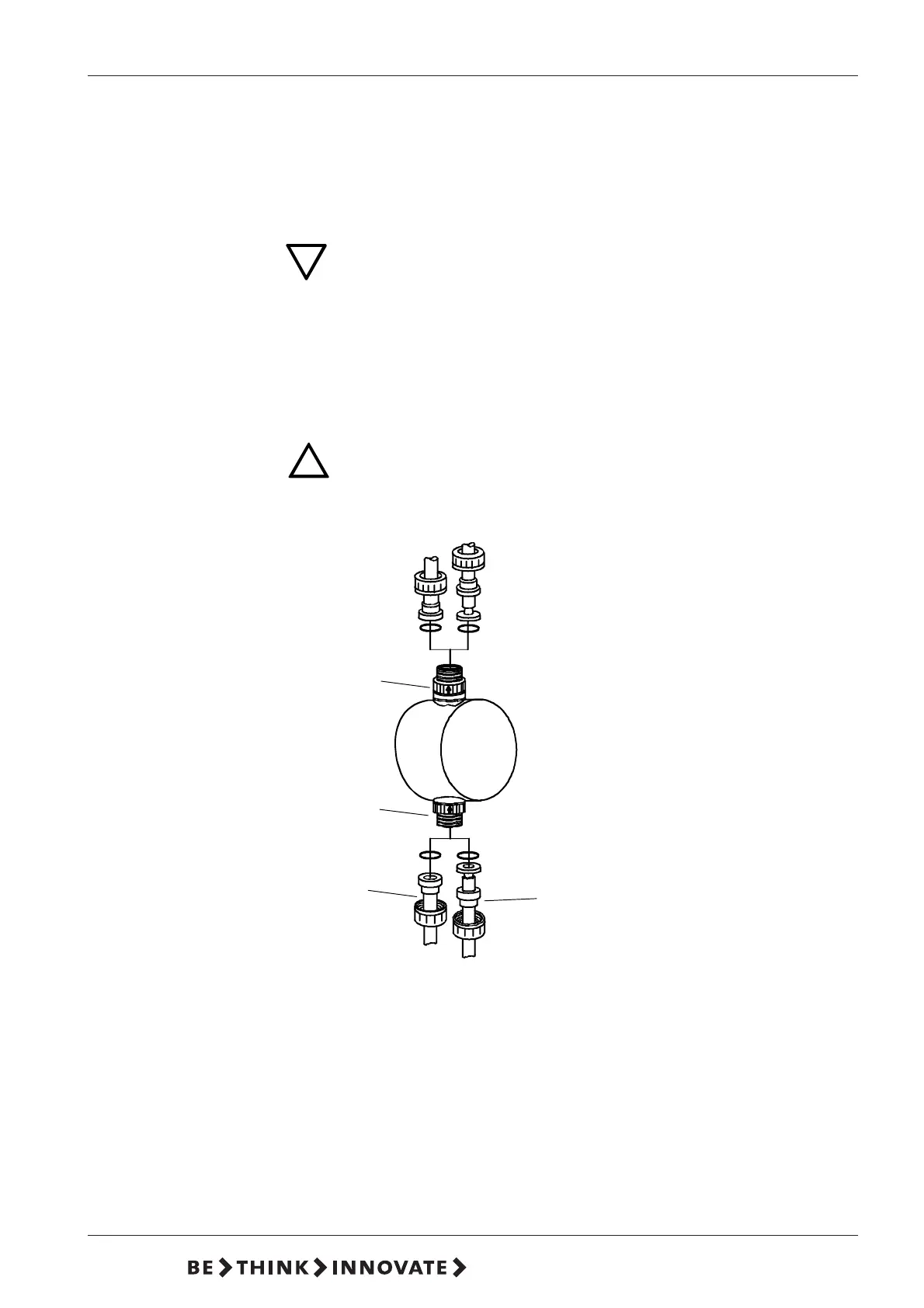

A
B
C
D
A: Suction valve C: Pipe connection
B: Discharge valve D: Tube connection (only DN20)
● Connect the suction line to the suction valve (A).
• The foot valve must keep a distance of ca. 10 cm to the bottom of the
container.
● Connect the pressure line to the pressure valve (B).
