7 Operation with Other Electronics
CAUTION First refer to the general Section 6 "Operation". This
Section 7 "Operation with Other Electronics" only
describes the additional functions.
7.1 Electronics Version Stroke sensor
Pump type with inductive proximity switch of two-wire design according to NAMUR
DIN 19 234for signalling the strokes.
The sensor can be installed in potentially explosive atmospheres if PTB-approved
isolating switching amplifiers with an intrinsically-safe control circuit [EExia] or
[EExib] are connected. The sensor can be used up to zone 1 depending on the
isolating amplifier. The specifications on the conformity certificate for the isolating
amplifier must be observed.
Supply voltage U
B
7.7 ... 10 V
7.2 Electronics Diaphragm Breakage Sensor
7.2.1 Technical Data of the Electronics
Description
Model 230 V (+10% /-10%)
Model 115 V (+10% /-10%)
Contact load
250 V / 6 A, max. 550VA
Power consumption
1.15 VA
Degree of protection
IP 65
Permissible temperature range
0 - 40 °C

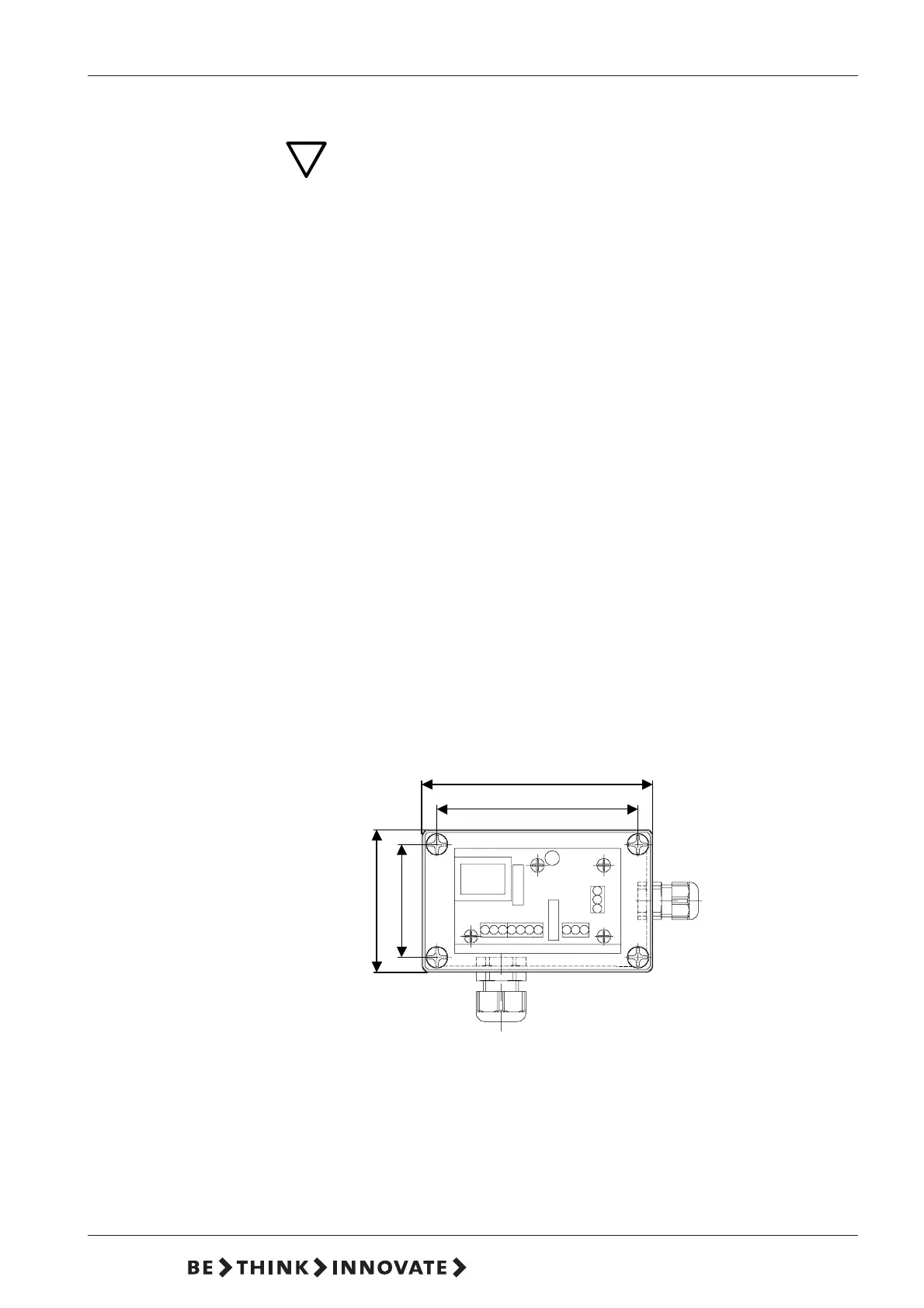

7.2.2 Dimensional Drawing (Electronics Enclosure)
130
113.5
63.5
80
