6 Operation

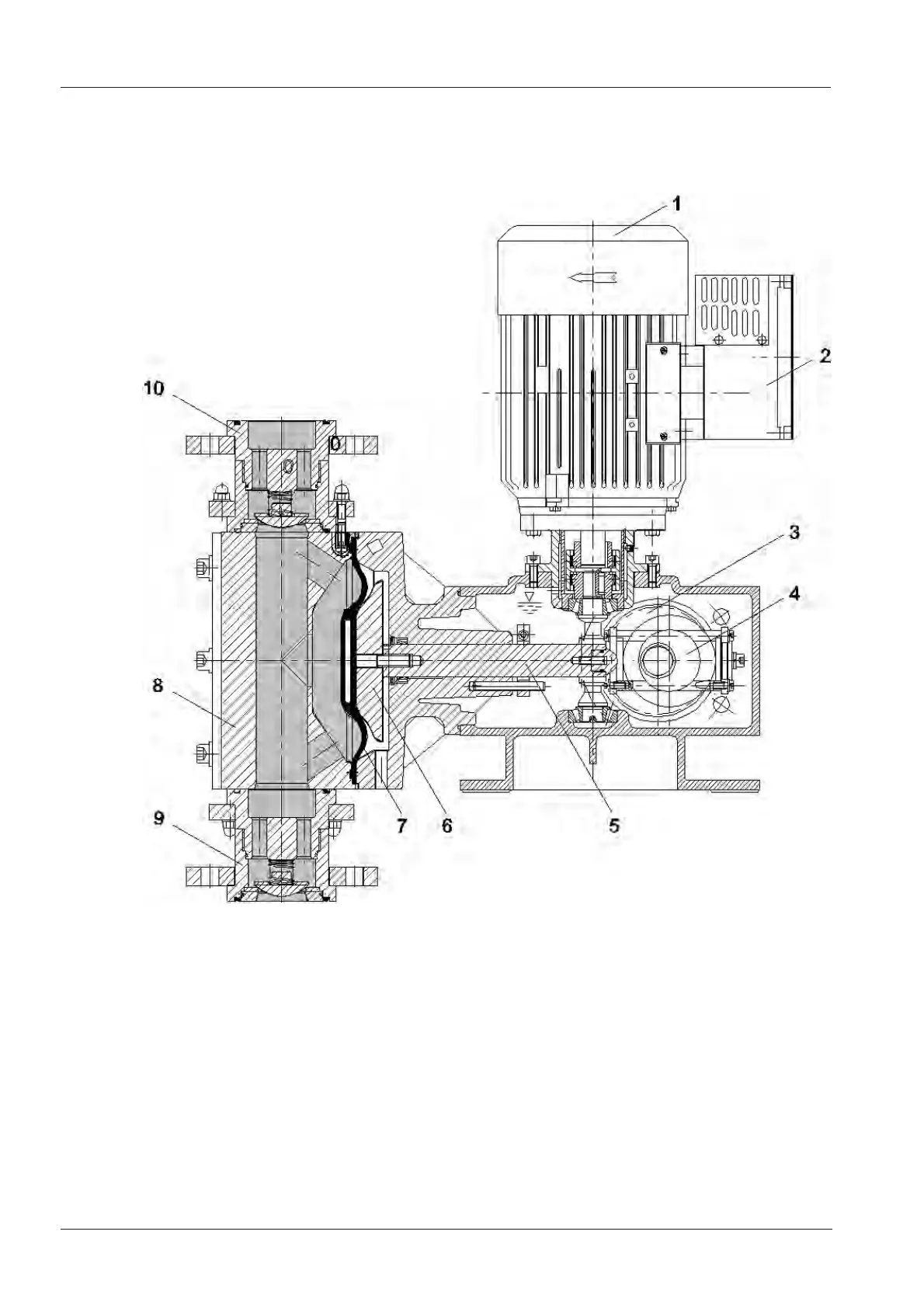

6.1 Description of the Device
1 Motor
2 Frequency converter
3 Worm wheel
4 Eccentric
5 Tappet
6 Support disk
7 Dosing diaphragm
8 Dosing head
9 Suction valve
10 Pressure valve
