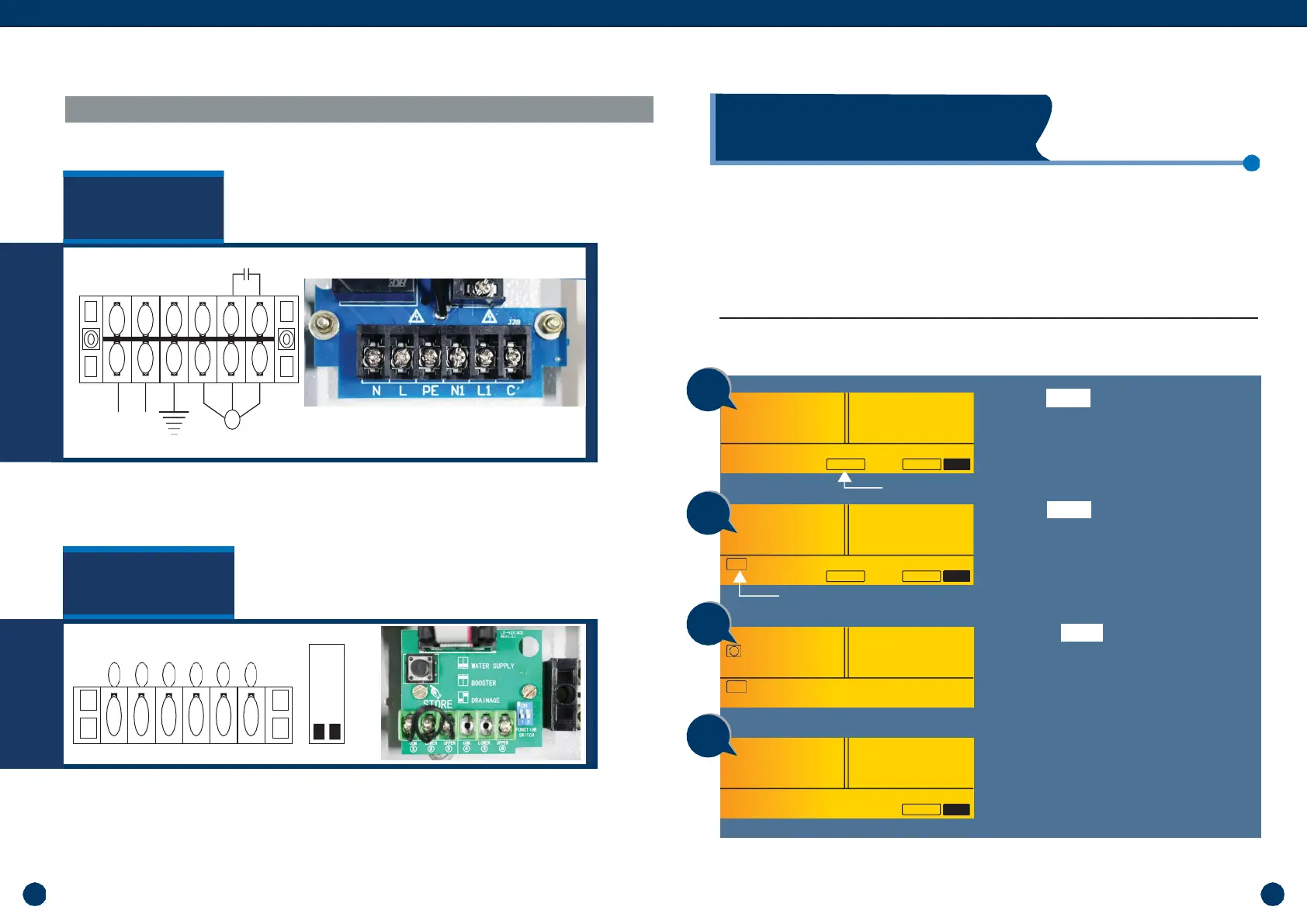

Control terminals
8
9
TERMINALS
Please read this manual carefully before starting installation and operation. Any
damage to the equipment caused due to failure to comply with the descriptions
in this manual in installation or operation will be beyond the scope of the
company’s quality guarantee.
CALIBRATION:
Setting of parameters (calibration of unit according to the connected load):
(a) Power terminals for connecting mains incoming and outgoing
X X X X X X
(b) Control terminals for connecting probes or float switches
1
232
V
No Caliber
0.0
A
No Water Manual
Press the
key to switch to manual
mode. Make sure the pump is not running
and LCD screen looks as shown on the left
FLASH
2
243
V
1.7
A
RUN
No Caliber
No Water Manual
FLASH
Press the START key to run the pump,
confirm the pump is running OK and
drawing rated current. Also confirm the
mains supply is healthy and incoming
voltage is normal, LCD screen will display
voltage and current being drawn by pump
3
08
S
RUN
Again press START key approximately for 3
secs and release when the unit makes a
“Beep” sound and a countdown timer
starts on the screen. LCD screen display
looks like the image on the left
4
239
V
0.0
A
Pump stops running and parameter
calibration
completes. LCD screen display
looks like the image on the left
No Water Manual
MODE
PARAMETER
CALIBRATION AND ERASING
N L PE N1 L1
C
X X X X X X
X X X X X X
M
Power terminals
