12
13

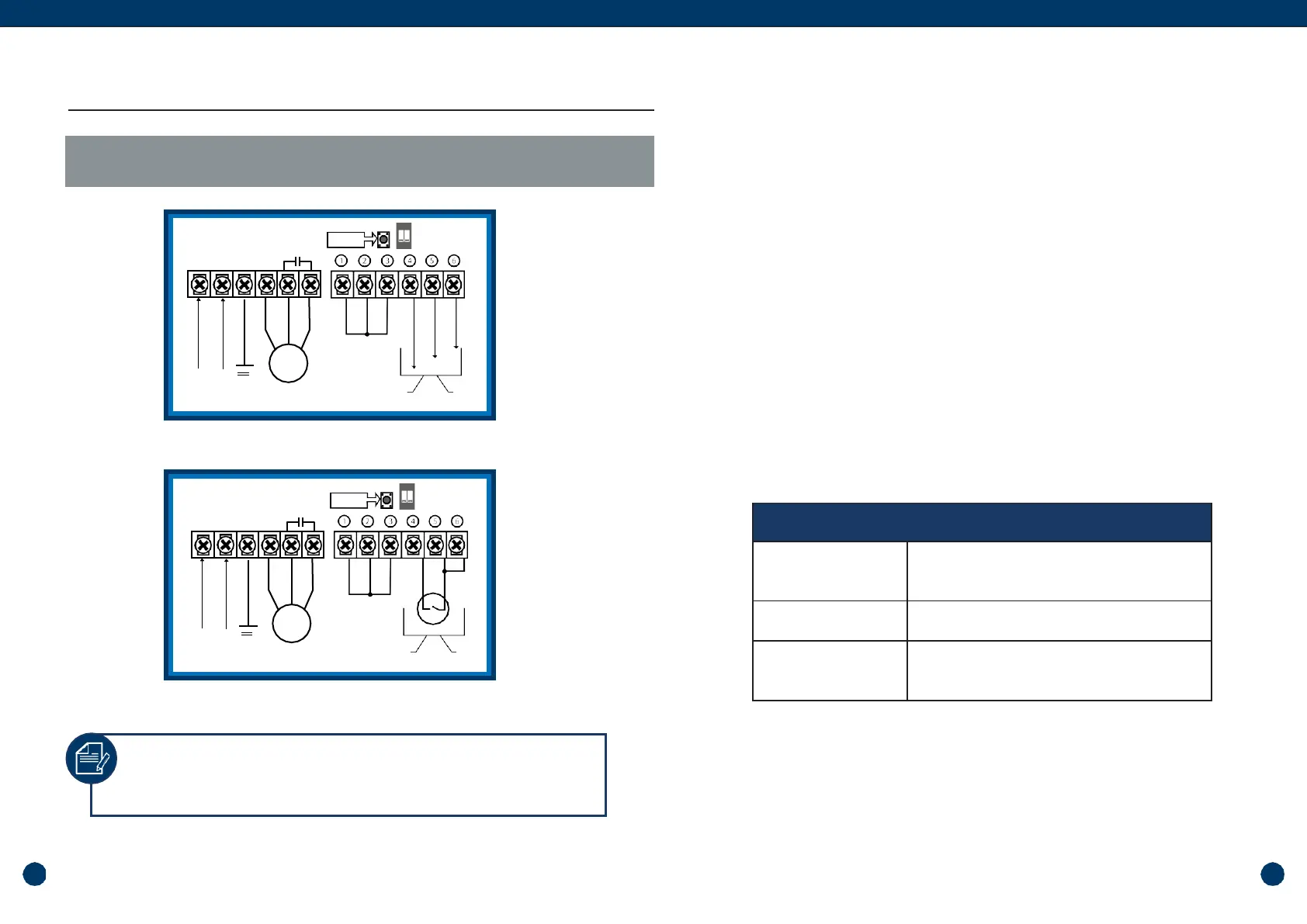

WORKING APPLICATIONS:
(e) Application: Clear water supply - liquid level control (using probes)
(f) Application: Water supply - liquid level control (using float switch)
Start condition: When the liquid level in overhead tank is below lower probe
(in case of float switch, float is down) and liquid level in the underground tank
is above lower probe (in case of float switch, float is up), the controller will
start the pump.
Stop condition: When the liquid level in overhead tank reaches upper probe
(in case of float switch, float is up) or liquid level in underground tank is below
lower probe (in case of float switch, float is down), the controller will stop the
pump.
Probe/sensor free application in case of submersible pumps: The unit has
reliable and automatic protection against dry running, if it is used for
submersible pump for deep well. Users can short the terminals 1, 2 & 3 to
achieve sensor free dry run protection.
Meaning of the messages & graphics displayed on the LCD screen
TANK FULL
Liquid level in the overhead tank has reached
upper probe (float switch: up position), pump
stops.
DRY RUN
Liquid level in the borewell is below the pump
intake, pumps stops running.
NO WATER
Liquid level in the underground tank/water
well is below lower most probe (float switch:
down position), pump stops.
NOTE: In case of water transfer from underground tank to overhead
tank, 3 probes for underground tank need to be installed and same to
be connected at control terminals marked as 1, 2 & 3 after removing
the shorting link.
Wiring
diagram
internal capacitance
O
N
P
“liquid/pressure
“store”button
1
2
L
SWITCH
N1 L1
C
Short circuit
M
N
L PE
AC200V Pump
Water storage tank
Wiring
diagram
internal capacitance
O
N
P
“liquid/pressure
“store”button
1
2
L
SWITCH
N1 L1
C
Short circuit
M
N
L PE
AC200V Pump
Water storage tank
WATER SUPPLY/TRANSFER BY INSTALLING PROBES
OR FLOAT SWITCH
Stop contact
Upper
probe
Lower probe
Com probe
Com contact
