Grundfos MGE 71 Service Instructions

English (GB)
4
Torques for terminals

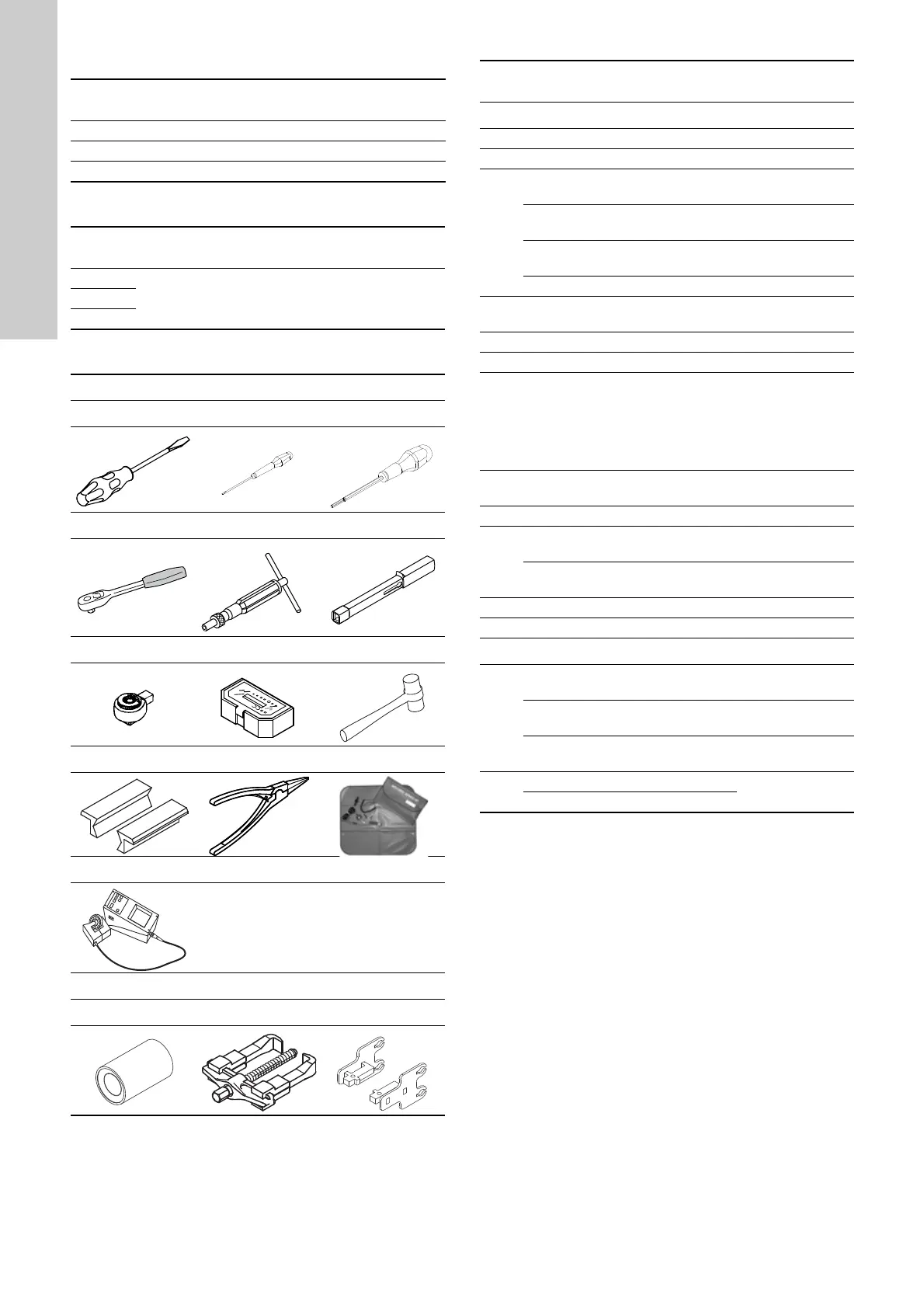

4. Secondary materials
5. Service tools
Terminal Thread
Max. torque
[Nm]
L1, L2, L3, L, N M4 1.8
NC, C1, C2, NO M2.5 0.5
1- 26, A, Y, B M2 0.5
Pos. Designation
Quantity
[kg]
Product
number
156c
Castrol LMX grease 0.1 00RM4311159d
159e
Standard tools
ABC
DEF
GH I
JKL
M
Special tools
NO
Pos. Designation For pos.
Further
information
Standard tools
A Screwdriver 156, 252b Straight slot, 8 mm
B Screwdriver 273b, 502 Straight slot, 3 mm
C
Screwdriver
273a,
277a, 288a
Torx 20
Screwdriver
152, 268,
251d
Torx 25
Screwdriver
178, 185,
192, 289a
Torx 30
Screwdriver 286 Torx 40
D
Ratchet spanner with
socket
J, K 17 mm
E Torque screwdriver - 0.5 - 4 Nm
F+G Torque wrench - 4-20 Nm
H Bits kit
152, 178,
185, 251d,
268, 273a,
277a, 286,
287a,
288a, 289a
Tx20, Tx25, Tx30,
Tx40
I
Plastic hammer or
press
156
1300 N
(axial force)
JSoft jaws - For vice
K
Locking-ring pliers,
internal ring
187 ∅50 - 65 (62) mm
Locking-ring pliers,
external ring
188 ∅20 - 30 (25) mm
L Antistatic service kit - 96884939
M Bearing heater 153, 154
Special tools
N
Punch 156c
∅/∅37.8/20.5
98394718
Punch 156c
∅/∅44/25.5
98394719
Punch 156c
∅/∅60/30.5
98394720
O
Puller 153, 154
98394731
Puller + special arms 172
