11
6.6 External current transformers
At motor currents above 120 A, external current
transformers must be used. Fit the transformers as
shown in fig. 12.
Note: Take the three measuring cables through the
three holes in the MP 204 five times per phase.
See fig. 13.
Note: The three current transformers must be fitted
in the same direction, and the measuring cables
must be connected in the same way.

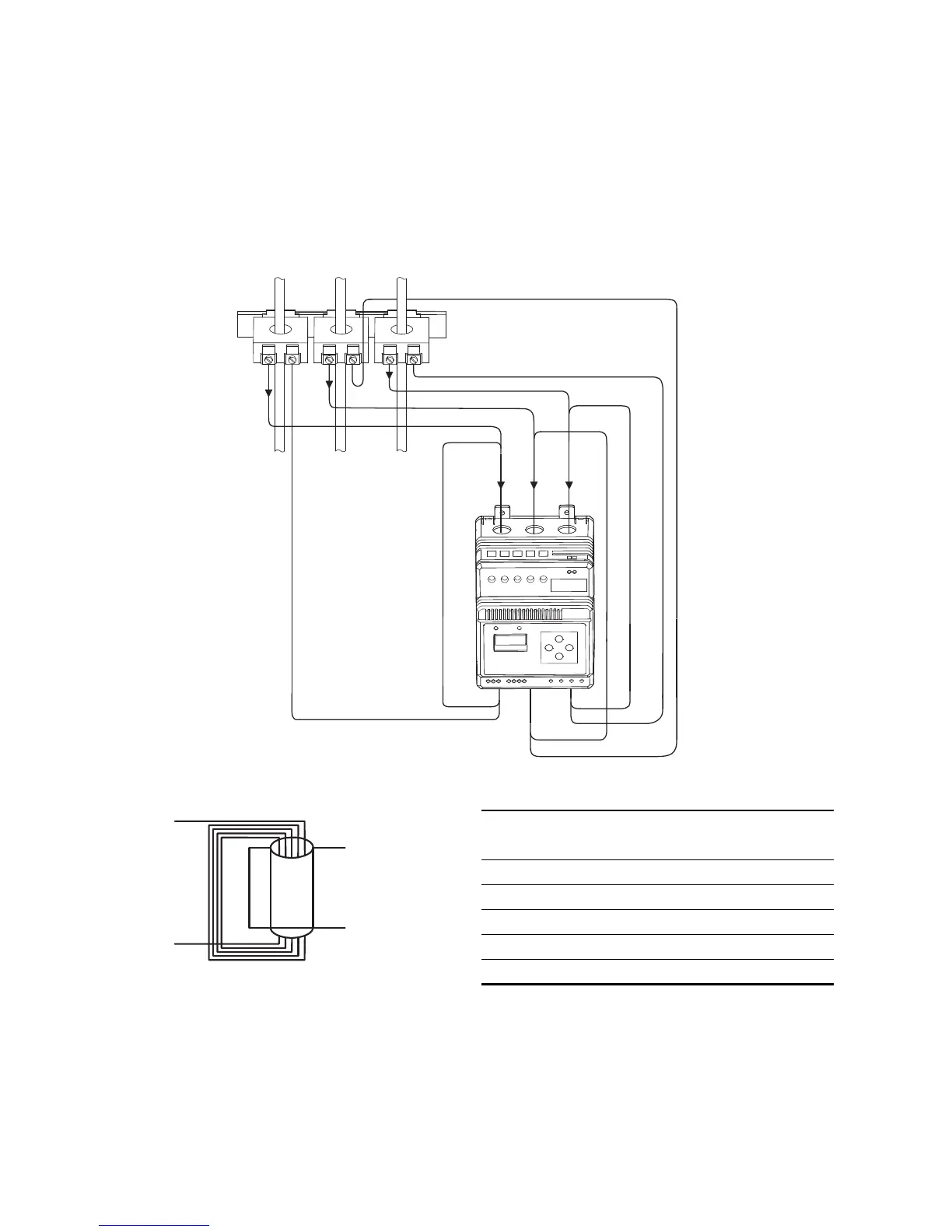

Fig. 12 Current transformers
Fig. 13 Five windings per phase through the
MP 204
TM03 0172 4304
TM03 1398 1905
Product
number
Current
transformer ratio
I
max.
P
max.
96095274 200:5 200 A 5 VA
96095275 300:5 300 A 5 VA
96095276 500:5 500 A 5 VA
96095277 750:5 750 A 5 VA
96095278 1000:5 1000 A 5 VA
