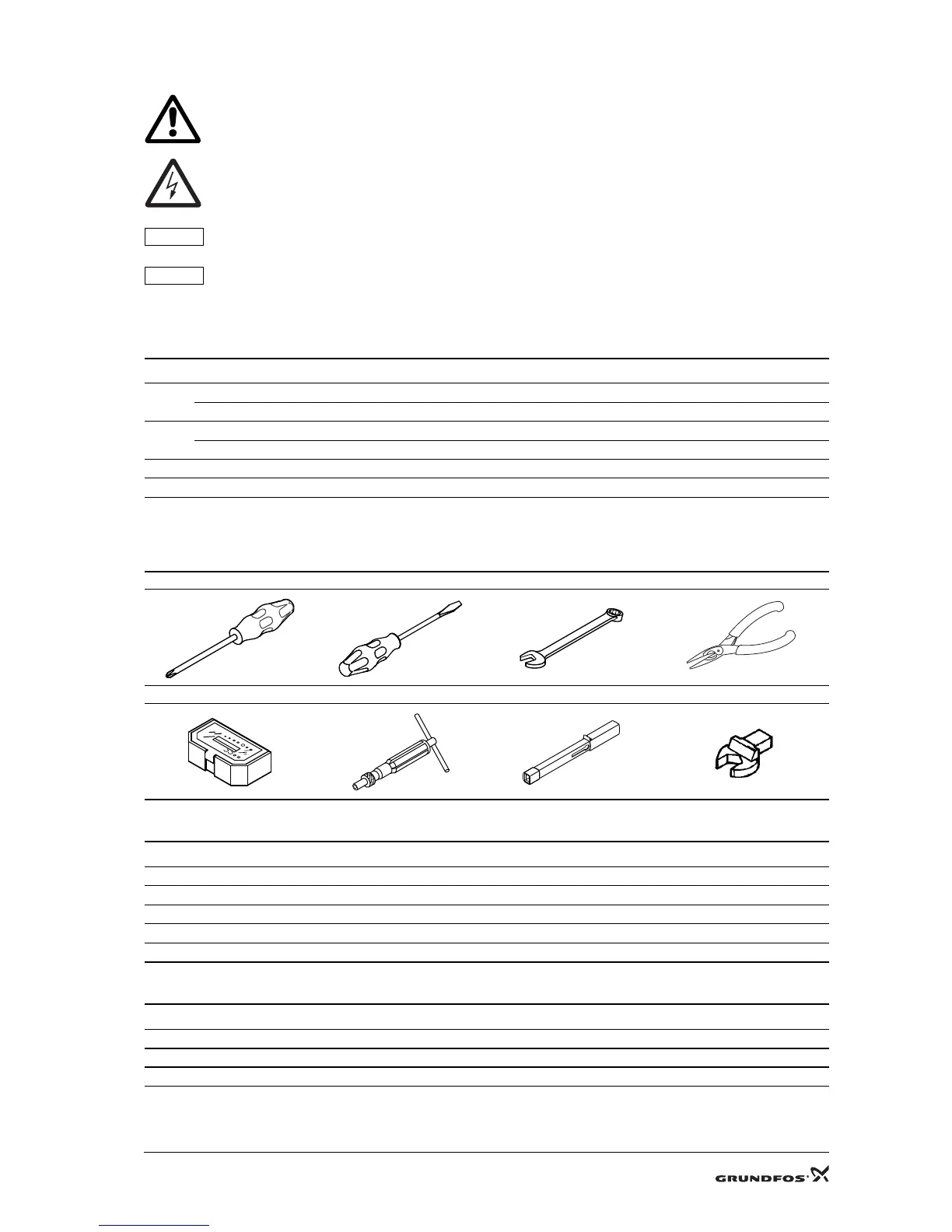

1. Symbols used in this document

2. Torques and lubricants

See chapter 7. Drawings for position numbers.

Rocol 22, part number RM2924 (1 kg).

3. Service tools

3.1 Standard tools

3.2 Torque tools

Warning

If these safety instructions are not observed, it may result in personal injury.

Warning

If these instructions are not observed, it may lead to electric shock with consequent risk of

serious personal injury or death.

Caution

If these safety instructions are not observed, it may result in malfunction or damage to the

equipment.

Note

Notes or instructions that make the job easier and ensure safe operation.

Pos. Designation Quantity Dimension Torque [Nm] Lubricant

Screw, PM 1 4 D3.5x20 1.3 - 1.5 –

Screw, PM 2 4 D3.5x35 1.3 - 1.5 -

Screw, PM 1 4 D4.7x40 2.8 - 3 –

Screw, PM 2 8 D4.7x40 2.8 - 3 –

11 Cable nut 2 M20 2.8 - 3 –

6 O-ring 1 – – Rocol 22

ABCD

EFGH

Pos. Designation For pos. Further information Part number

A Cross-head screwdriver 1, 9 PH1 SV0279

B Screwdriver 11, 4 0.5 x 3 x 60 SV0803

C Ring/open-end spanner 14 23 mm –

D Needle nose pliers 10, 18 – –

E Bits kit 1, 9 – SV2010

Pos. Designation For pos. Further information Part number

F Torque screwdriver E 1-6 Nm SV0438

G Torque wrench H ––

H Open-end insert tool 14 23 mm –
